Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS (diagram 0198)

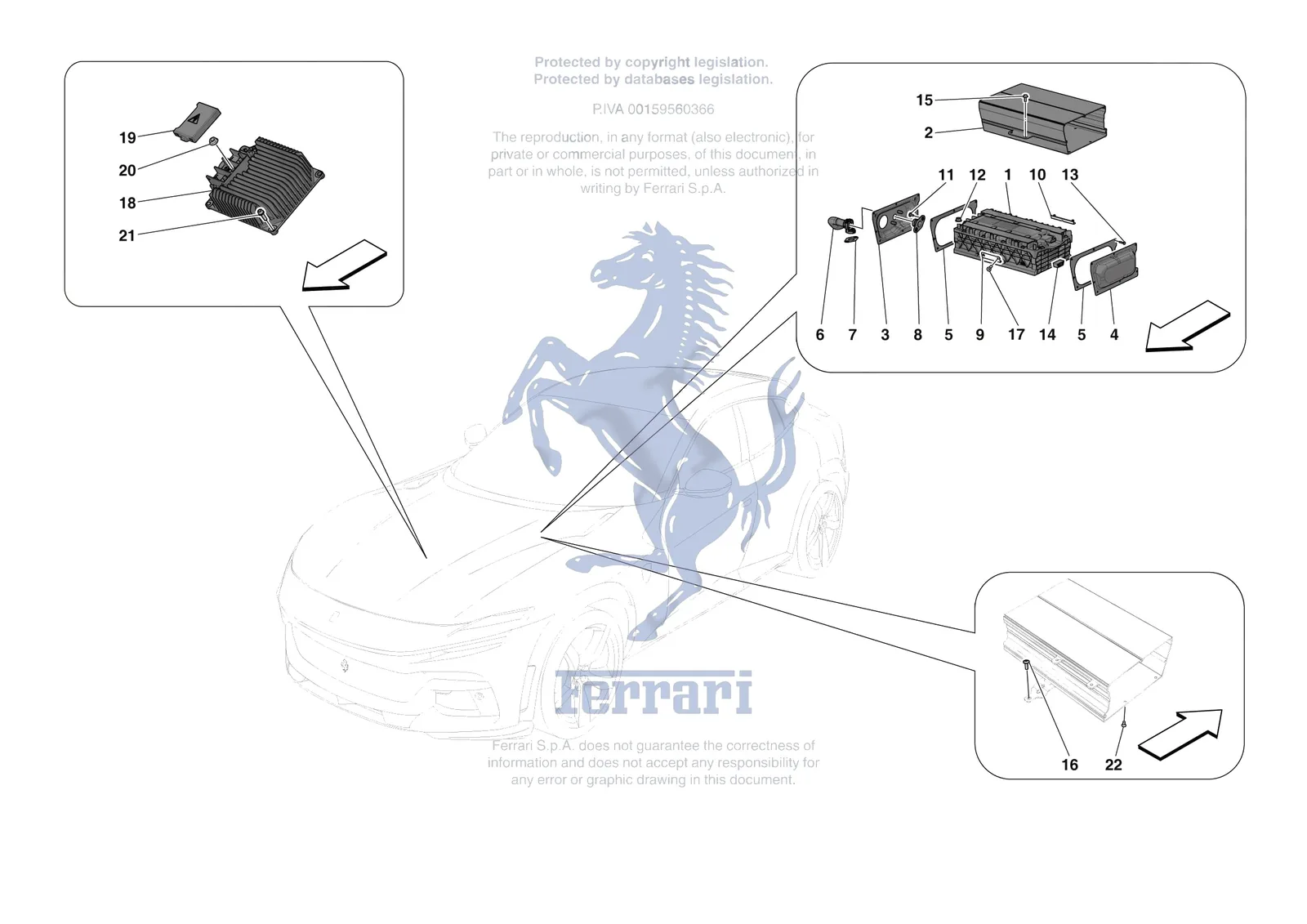

Exploded view of the [electrical system] - f.15 - power electronics on the Ferrari Purosangue, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0198.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14440827 | Ferrari Screw (ferrari) - 14440827 | Price on request | Contact us for price and availability | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 14440834 | Ferrari/Maserati Screw - 14440834 | $1.10 | In stock | |
| 1 | 886470 | Ferrari Lithium Battery - 886470 | $7,274.74 | Special order, ships in 7-14 days |
| 2 | 849094 | Ferrari Compl. 48V Battery Mount Ext - 849094 | $566.30 | Special order, ships in 7-14 days |
| 3 | 812235 | Ferrari RH Cover - 812235 | $120.62 | Special order, ships in 7-14 days |
| 4 | 812236 | Ferrari LH Cover - 812236 | $132.94 | Special order, ships in 7-14 days |
| 5 | 834846 | Ferrari 48V Battery Cover Seal - 834846 | $50.31 | Special order, ships in 7-14 days |
| 6 | 814717 | Ferrari Venting Pipe - 814717 | $118.16 | Special order, ships in 7-14 days |
| 7 | 817742 | Ferrari Pipe Flange Gasket - 817742 | $65.55 | Special order, ships in 7-14 days |
| 8 | 834213 | Ferrari Venting Block - 834213 | $41.82 | Special order, ships in 7-14 days |
| 9 | 832723 | Ferrari Front 48V Battery Bracket - 832723 | $59.07 | Special order, ships in 7-14 days |
| 10 | 832728 | Ferrari Rear 48V Battery Bracket - 832728 | $59.07 | Special order, ships in 7-14 days |
| 11 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 12 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 13 | 855468 | Ferrari Screw - 855468 | $0.17 | Special order, ships in 7-14 days |
| 14 | 833472 | Ferrari Cover Fastener Latch - 833472 | $36.92 | Special order, ships in 7-14 days |
| 15 | 11625714 | Ferrari SCREW - 11625714 | $1.02 | Special order, ships in 7-14 days |
| 16 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 17 | 14440621 | Ferrari Screw - 14440621 | $1.17 | Special order, ships in 7-14 days |
| 17 | 68927500 | Ferrari Screw - 68927500 | $0.50 | Special order, ships in 7-14 days |
| 18 | 818341 | Ferrari Dcdc Converter - 818341 | $2,133.94 | Special order, ships in 7-14 days |
| 19 | 891221 | Ferrari Dcdc Terminal Cover - 891221 | $10.83 | Special order, ships in 7-14 days |
| 20 | 13046214 | Ferrari Nut - 13046214 | $0.73 | Special order, ships in 7-14 days |
| 21 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
