Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.16 - ADAS (diagram 0199)

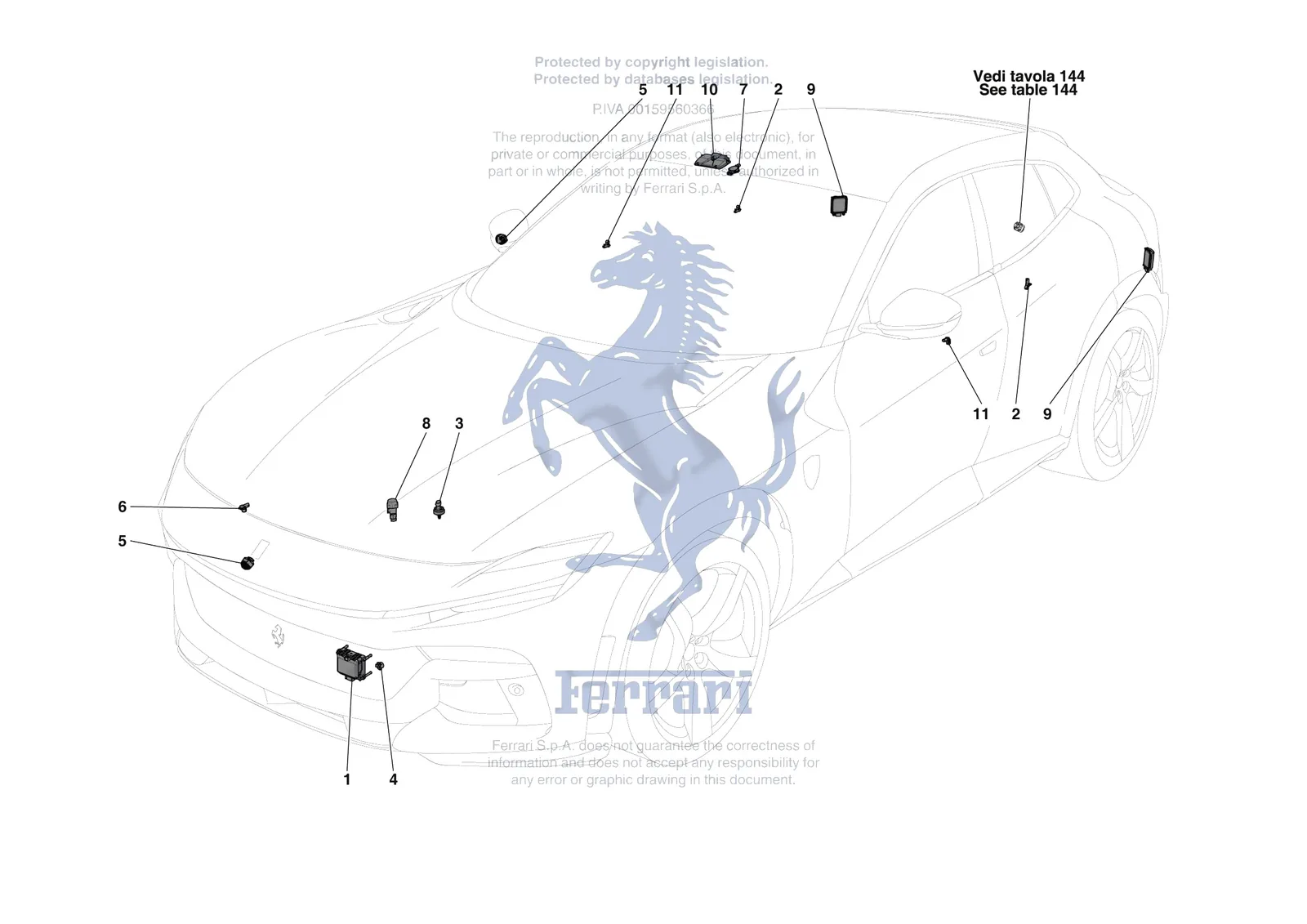

Exploded view of the [electrical system] - f.16 - adas on the Ferrari Purosangue, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ELECTRICAL SYSTEM] - F.16 - ADAS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0199.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 811596 | Ferrari Front Radar Unit - 811596 | $2,227.73 | Special order, ships in 7-14 days |
| 1 | 811597 | Ferrari Front Radar Unit - 811597 | Superseded | Order 811596 instead |
| 2 | 764924 | Ferrari LATERAL CRASH SENSOR - 764924 | $74.29 | Special order, ships in 7-14 days |
| 3 | 263079 | Ferrari Accelerator For Magneride System - 263079 | Superseded | Order 990305 instead |
| 3 | 990305 | Ferrari Accelerator For Magneride System - 990305 | $442.56 | Available, ships in 3-6 days |
| 4 | 848849 | Ferrari Clip - 848849 | $5.65 | Special order, ships in 7-14 days |
| 5 | 818615 | Ferrari Surround Camera - 818615 | $1,967.03 | Special order, ships in 7-14 days |
| 5 | 990172 | Ferrari Surround Camera - 990172 | $1,943.61 | Special order, ships in 7-14 days |
| 6 | 764923 | Ferrari Front Crash Sensor - 764923 | $74.29 | Available, ships in 3-6 days |
| 7 | 786808 | Ferrari Rain And Twilight Sensor - 786808 | $393.38 | Special order, ships in 7-14 days |
| 8 | 163675 | Ferrari Inertia Switch - 163675 | $39.46 | Available, ships in 3-6 days |
| 9 | 804792 | Ferrari Rear Radar - 804792 | $1,526.57 | Special order, ships in 7-14 days |
| 10 | 791888 | Ferrari Mpc-Half Camera - 791888 | $2,345.00 | Special order, ships in 7-14 days |
| 10 | 868916 | Ferrari Mpc-Half Camera - 868916 | Superseded | Order 791888 instead |
| 11 | 821052 | Ferrari Lateral Crash Sensor - 821052 | $74.29 | Special order, ships in 7-14 days |
