Ferrari Roma Spider — [ENGINE] - B.1 - CRANKCASE (diagram 0004)

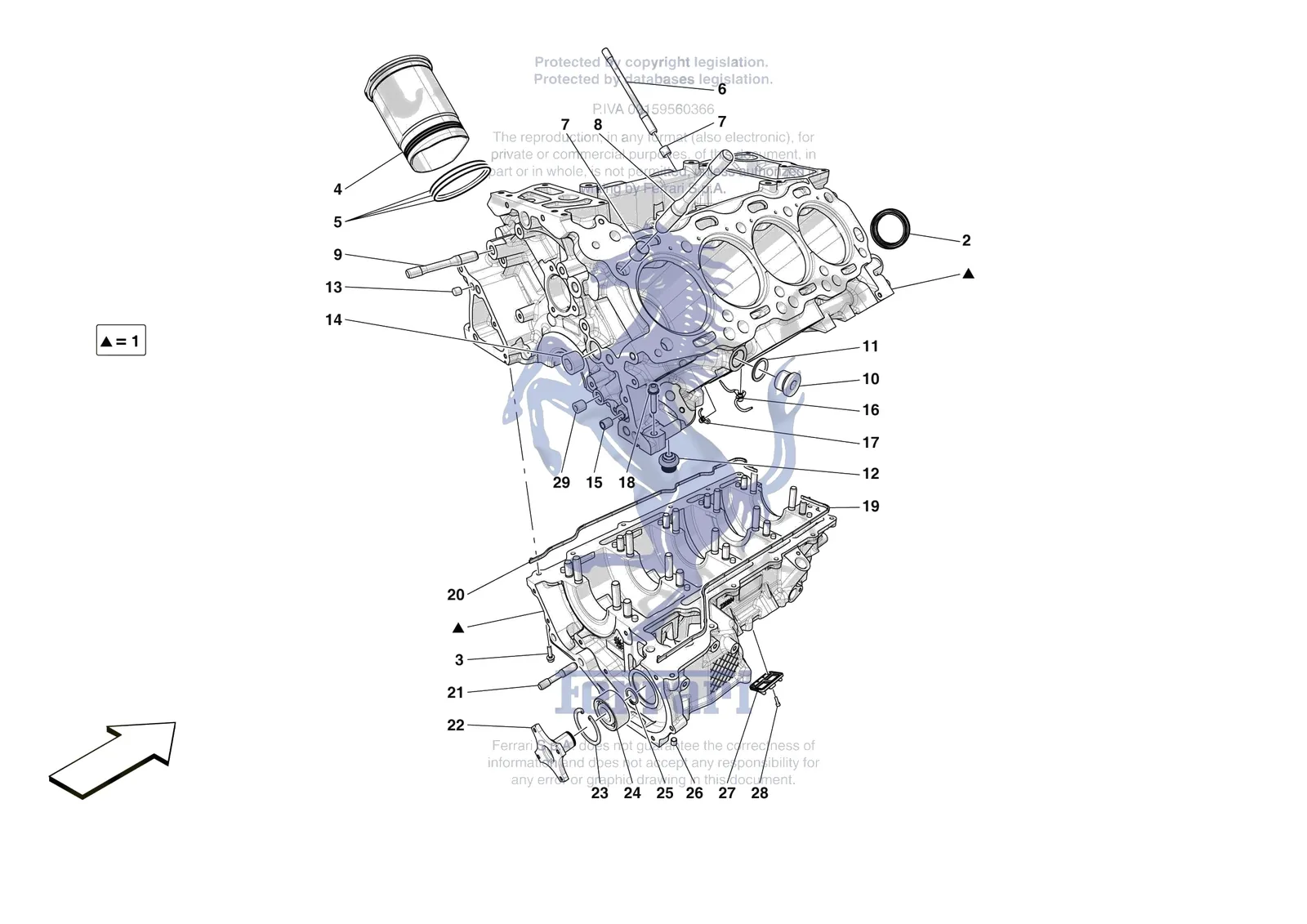

Exploded view of the [engine] - b.1 - crankcase on the Ferrari Roma Spider, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [ENGINE] - B.1 - CRANKCASE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0004.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 238362 | Ferrari Blow-By Valve Assembly - 238362 | $269.23 | Special order, ships in 7-14 days | |
| 302154 | Ferrari Cap - 302154 | $13.03 | Special order, ships in 7-14 days | |
| 804472 | Ferrari Crankcase-Lower Crankcase Shell Assy - 804472 | $7,341.69 | Special order, ships in 7-14 days | |
| 833196 | Ferrari Crankcase-Lower Crankcase Shell Assy - 833196 | $8,695.68 | Special order, ships in 7-14 days | |
| 296396 | Ferrari Gasket - 296396 | Superseded | Order 339298 instead | |
| 296397 | Ferrari Gasket - 296397 | Superseded | Order 339289 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 11066875 | Ferrari Snap Ring - 11066875 | Superseded | Order 11066876 instead | |
| 194495 | Ferrari Threaded Plug - 194495 | Superseded | Order 282755 instead | |
| 14326001 | Ferrari Threaded Plug D 10x1.25 - 14326001 | Superseded | Order 282755 instead | |
| 1 | 764321 | Ferrari Crankcase-Lower Crankcase Shell Assy - 764321 | $8,641.23 | Special order, ships in 7-14 days |
| 2 | 271598 | Ferrari/Maserati Front Crankshaft Oil Seal - 271598 | $62.78 | In stock |
| 3 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 4 | 271810 | Ferrari Cylinder Sleeve - 271810 | $467.80 | Available, ships in 3-6 days |
| 5 | 294153 | Ferrari Gasket - 294153 | $6.77 | Special order, ships in 7-14 days |
| 6 | 270464 | Ferrari Stud Bolt - 270464 | $46.75 | Special order, ships in 7-14 days |
| 7 | 185360 | Ferrari Centering Dowel - 185360 | $5.44 | Special order, ships in 7-14 days |
| 8 | 271564 | Ferrari Stud Bolt M14 x 1.5 to M12 - 271564 | $46.75 | Available, ships in 3-6 days |
| 9 | 278119 | Ferrari Stud Bolt - 278119 | $34.44 | Special order, ships in 7-14 days |
| 10 | 307477 | Ferrari/Maserati Crankcase Threaded Plug - 307477 | $5.35 | In stock |
| 11 | 10263460 | Ferrari/Maserati Copper Washer - 10263460 | $1.93 | In stock |
| 12 | 294614 | Ferrari Check Valve - 294614 | $43.59 | Available, ships in 3-6 days |
| 13 | 311001 | Ferrari Alignment Dowel - 311001 | $6.10 | Special order, ships in 7-14 days |
| 14 | 282753 | Ferrari Cover - Threaded Plug - 282753 | $13.09 | Special order, ships in 7-14 days |
| 15 | 282755 | Ferrari Threaded Plug D 10x1.25 - 282755 | $4.35 | Available, ships in 3-6 days |
| 16 | 298858 | Ferrari Piston Cooling Nozzle Assembly - 298858 | $64.00 | Special order, ships in 7-14 days |
| 17 | 298859 | Ferrari Piston Cooling Nozzle Assembly - 298859 | $44.29 | Special order, ships in 7-14 days |
| 18 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 19 | 339298 | Ferrari RH Crankcase-Flange Gasket - 339298 | $86.15 | Special order, ships in 7-14 days |
| 20 | 339289 | Ferrari Gasket - 339289 | $81.23 | Special order, ships in 7-14 days |
| 21 | 278120 | Ferrari Stud Bolt - 278120 | $39.37 | Special order, ships in 7-14 days |
| 22 | 288133 | Ferrari Drive Joint - 288133 | $224.04 | Special order, ships in 7-14 days |
| 23 | 11060276 | Ferrari Circlip - 11060276 | $0.92 | Available, ships in 3-6 days |
| 24 | 247049 | Ferrari Bearing - 247049 | $87.40 | Special order, ships in 7-14 days |
| 25 | 11066876 | Ferrari Circlip 20E - 11066876 | $0.13 | Available, ships in 3-6 days |
| 26 | 102725 | Ferrari/Maserati Dowel - 102725 | $2.79 | In stock |
| 27 | 255138 | Ferrari Blow-By Valve Assembly - 255138 | $179.73 | Special order, ships in 7-14 days |
| 28 | 14303123 | Ferrari Screw - 14303123 | $0.12 | Available, ships in 3-6 days |
| 29 | 291078 | Ferrari Threaded Plug 12x11 - 291078 | $5.02 | Special order, ships in 7-14 days |
