Ferrari Roma Spider — [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS (diagram 0021)
Exploded view of the [engine] - b.16 - ignition coil spark plugs and sensors on the Ferrari Roma Spider, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

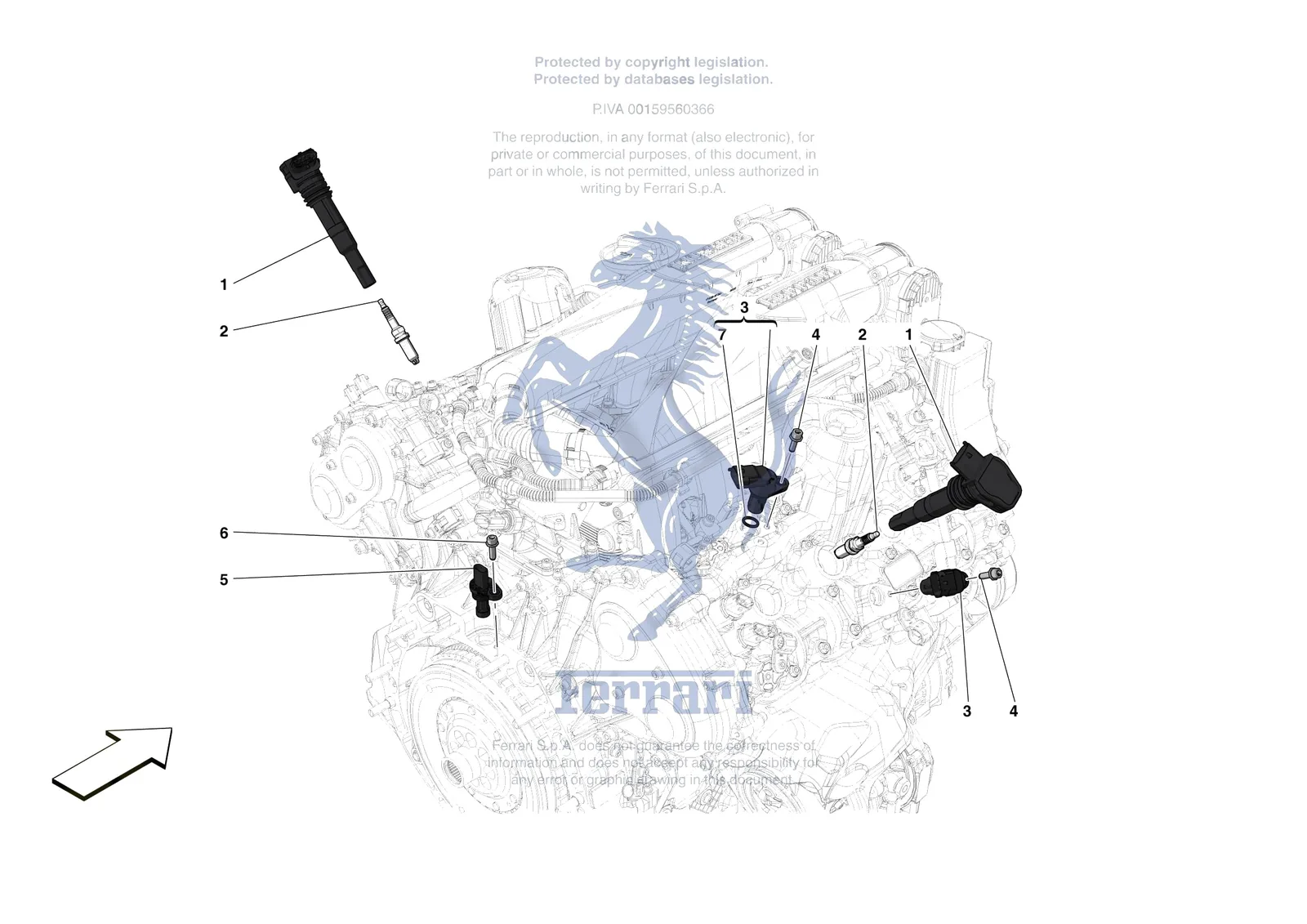

![Ferrari Roma Spider [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0021.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 337714 | Ferrari Ignition Coil - 337714 | $108.75 | In stock | |
| 291150 | Ferrari Individual Ignition Coil - 291150 | Superseded | Order 772926 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 337712 | Ferrari Individual Ignition Coil - 337712 | Superseded | Order 772926 instead |
| 1 | 772926 | Ferrari Individual Ignition Coil - 772926 | Superseded | Order 337714 instead |
| 2 | 310840 | Ferrari Spark Plug - 310840 | $29.59 | In stock |
| 2 | 310840/8 | Ferrari Spark Plug Set of 8 - 310840/8 | $236.72 | In stock |
| 3 | 224573 | Ferrari/Maserati Phase Sensor - 224573 | $59.55 | In stock |
| 4 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 5 | 922805 | Ferrari RPM Sensor - 922805 | $187.93 | Available, ships in 3-6 days |
| 6 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 7 | 849672 | Ferrari Timing Sensor Seal - 849672 | $6.98 | Special order, ships in 7-14 days |
