Ferrari Roma Spider — [ENGINE] - B.21 - VENTS (diagram 0026)

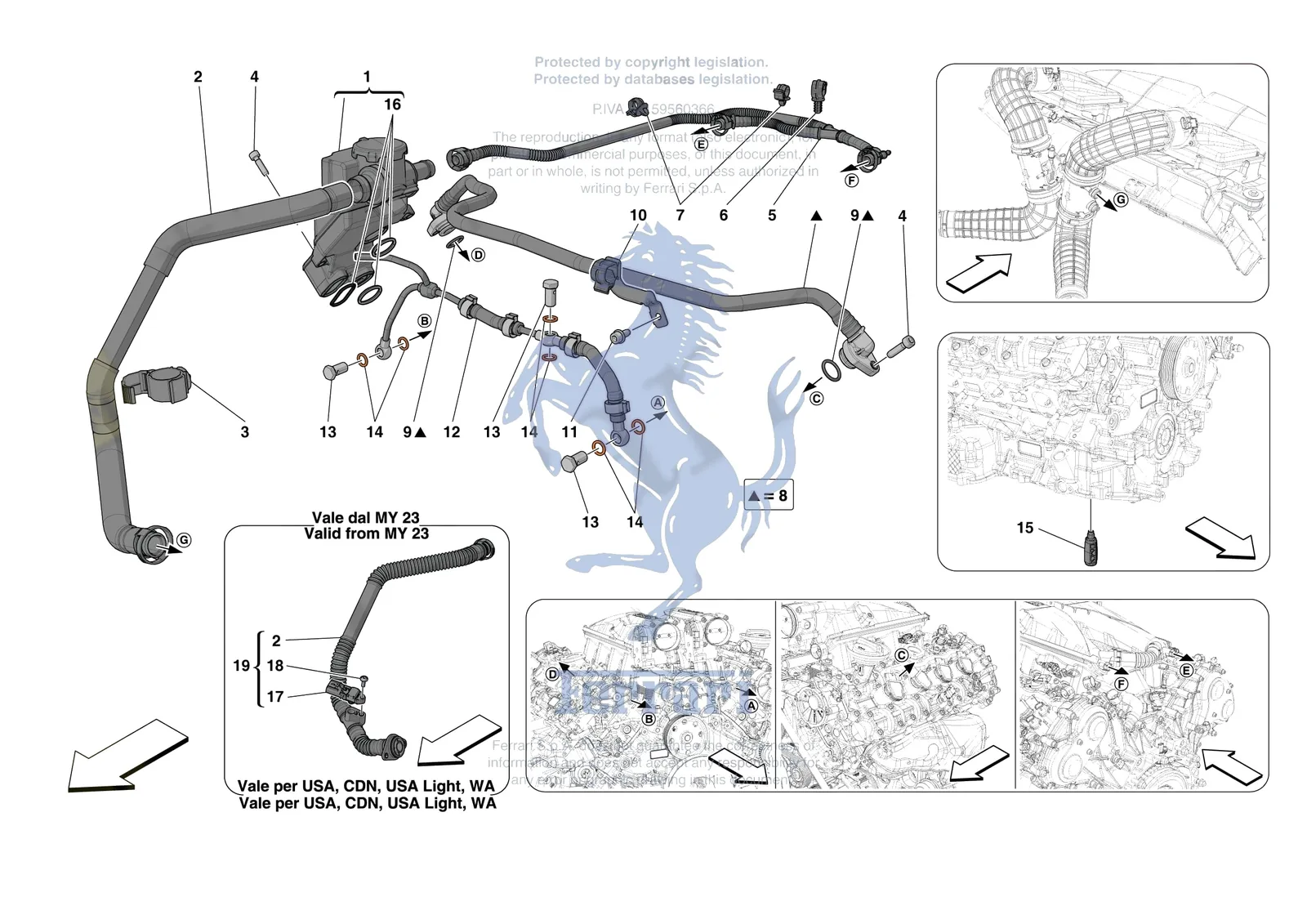

Exploded view of the [engine] - b.21 - vents on the Ferrari Roma Spider, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [ENGINE] - B.21 - VENTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 302694 | Ferrari Compensator Pipe - 302694 | Superseded | Order 320055 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 299742 | Ferrari Oil Vapour Separator - 299742 | $590.91 | Special order, ships in 7-14 days |
| 1 | 948335 | Ferrari Oil Vapour Separator with Perforated Membrane - 948335 | $566.30 | Special order, ships in 7-14 days |
| 2 | 859844 | Ferrari Blow-By Pipe With Sensor - 859844 | Superseded | Order 953167 instead |
| 2 | 327976 | Ferrari Pipe - 327976 | $566.30 | Special order, ships in 7-14 days |
| 2 | 786968 | Ferrari Tubo Blow By Da Aspirazione - 786968 | $164.95 | Special order, ships in 7-14 days |
| 3 | 304443 | Ferrari Clip - 304443 | $1.36 | Special order, ships in 7-14 days |
| 4 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 5 | 910904 | Ferrari Tubo Da Separatore A Collett - 910904 | $211.73 | Special order, ships in 7-14 days |
| 6 | 291552 | Ferrari Clip - 291552 | $2.82 | Special order, ships in 7-14 days |
| 7 | 191904 | Ferrari Clip - 191904 | $0.90 | Special order, ships in 7-14 days |
| 8 | 320055 | Ferrari Compensator Pipe - 320055 | $226.49 | Special order, ships in 7-14 days |
| 9 | 95860063 | Ferrari O-Ring viton - 95860063 | $2.70 | Available, ships in 3-6 days |
| 9 | 130295 | Ferrari Oil Ring - 130295 | Superseded | Order 95860063 instead |
| 10 | 309274 | Ferrari Bracket - 309274 | $34.44 | Special order, ships in 7-14 days |
| 11 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 12 | 307637 | Ferrari Water Vent Pipe - 307637 | $467.80 | Special order, ships in 7-14 days |
| 13 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 14 | 10260960 | Ferrari Washer - 10260960 | $0.34 | Available, ships in 3-6 days |
| 15 | 285403 | Ferrari Valve - 285403 | $61.52 | Special order, ships in 7-14 days |
| 16 | 849688 | Ferrari Oil Return Line Gasket - 849688 | $63.44 | Special order, ships in 7-14 days |
| 17 | 871810 | Ferrari Sensore Pressione Vapori Blo - 871810 | $240.39 | Special order, ships in 7-14 days |
| 18 | 85077900 | Ferrari Screw - 85077900 | $0.34 | Special order, ships in 7-14 days |
| 19 | 953167 | Ferrari Blow-By Pipe With Sensor - 953167 | $886.38 | Special order, ships in 7-14 days |
