Ferrari Roma Spider — [MECHANICAL SYSTEM] - D.11 - FUEL TANK (diagram 0060)

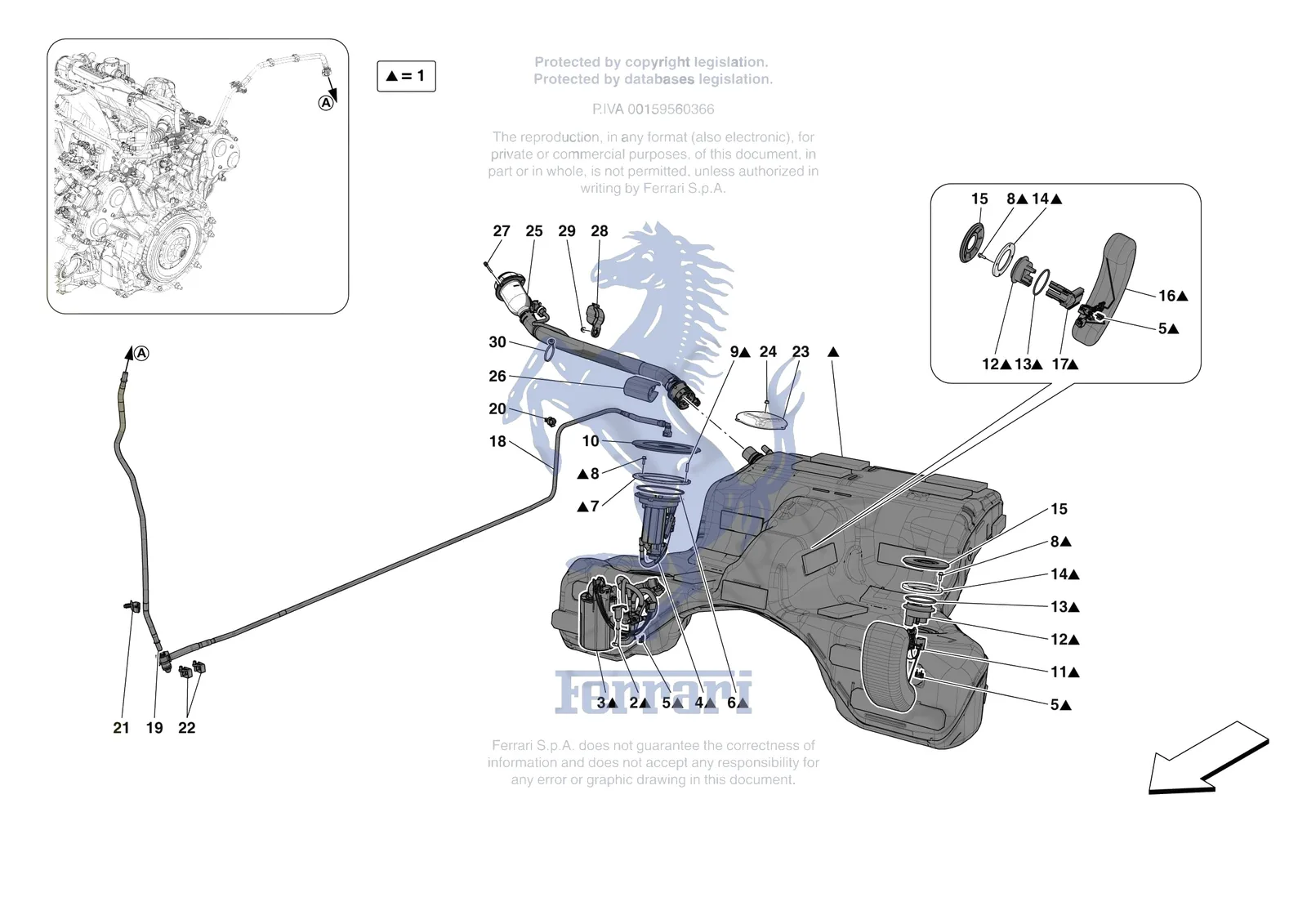

Exploded view of the [mechanical system] - d.11 - fuel tank on the Ferrari Roma Spider, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [MECHANICAL SYSTEM] - D.11 - FUEL TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0060.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 335838 | Ferrari Compl. Fuel Tank - 335838 | Superseded | Order 333688 instead | |
| 781383 | Ferrari Compl. Fuel Tank - 781383 | Superseded | Order 333688 instead | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 237262 | Ferrari Fuel Pump With Filter - 237262 | Superseded | Order 282783 instead | |
| 1 | 333688 | Ferrari Compl. Fuel Tank - 333688 | $11,141.15 | Contact us to order |
| 1 | 983935 | Ferrari Compl. Fuel Tank - 983935 | $25,610.43 | Contact us to order |
| 2 | 237598 | Ferrari Flexible Hook - 237598 | $108.31 | Special order, ships in 7-14 days |
| 3 | 338553 | Ferrari Fuel Pump - 338553 | $2,536.75 | Special order, ships in 7-14 days |
| 4 | 282783 | Ferrari Fuel Pump With Filter - 282783 | $2,355.42 | Special order, ships in 7-14 days |
| 5 | 238688 | Ferrari Connector - 238688 | $88.49 | Special order, ships in 7-14 days |
| 6 | 239412 | Ferrari O-Ring - 239412 | $21.51 | Available, ships in 3-6 days |
| 6 | 275314 | Ferrari O-Ring - 275314 | $12.31 | Available, ships in 3-6 days |
| 7 | 310514 | Ferrari Fastener Ring - 310514 | $108.31 | Special order, ships in 7-14 days |
| 8 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 9 | 11001124 | Ferrari Stud Bolt - 11001124 | $137.67 | Available, ships in 3-6 days |
| 10 | 250481 | Ferrari Inspection Cap - 250481 | $81.11 | Special order, ships in 7-14 days |
| 11 | 239218 | Ferrari Fuel Level Sensor - 239218 | $393.93 | Special order, ships in 7-14 days |
| 12 | 273479 | Ferrari Support - 273479 | $194.22 | Special order, ships in 7-14 days |
| 13 | 239413 | Ferrari O-Ring - 239413 | $9.29 | Available, ships in 3-6 days |
| 14 | 276001 | Ferrari Ring - 276001 | $524.51 | Special order, ships in 7-14 days |
| 15 | 250480 | Ferrari Inspection Cap - 250480 | $46.69 | Special order, ships in 7-14 days |
| 16 | 253598 | Ferrari Fuel Level Sensor - 253598 | $393.93 | Special order, ships in 7-14 days |
| 17 | 254311 | Ferrari Angle Adaptor - 254311 | $16.94 | Special order, ships in 7-14 days |
| 18 | 340996 | Ferrari Tubo Mandata Carb. Sez.Pia - 340996 | $167.40 | Special order, ships in 7-14 days |
| 19 | 771336 | Ferrari Tubo Mand Carb. Sez. Par - 771336 | $41.82 | Special order, ships in 7-14 days |
| 20 | 81840800 | Ferrari Clip - 81840800 | $0.79 | Special order, ships in 7-14 days |
| 21 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 22 | 232649 | Ferrari Clip - 232649 | $2.07 | Special order, ships in 7-14 days |
| 23 | 272714 | Ferrari Rear Inspection Cover Complete - 272714 | $41.76 | Special order, ships in 7-14 days |
| 24 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 25 | 748515 | Ferrari Capless Filler Neck - 748515 | $1,403.46 | Special order, ships in 7-14 days |
| 26 | 240223 | Ferrari Protection - 240223 | $39.37 | Special order, ships in 7-14 days |
| 27 | 791355 | Ferrari Screw - 791355 | $10.02 | Special order, ships in 7-14 days |
| 28 | 304380 | Ferrari Clip - 304380 | $7.19 | Special order, ships in 7-14 days |
| 29 | 14058419 | Ferrari Flanged Nut - 14058419 | $1.61 | Special order, ships in 7-14 days |
| 30 | 788617 | Ferrari CLIP - 788617 | Price on request | Contact us for price and availability |
