Ferrari Roma Spider — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

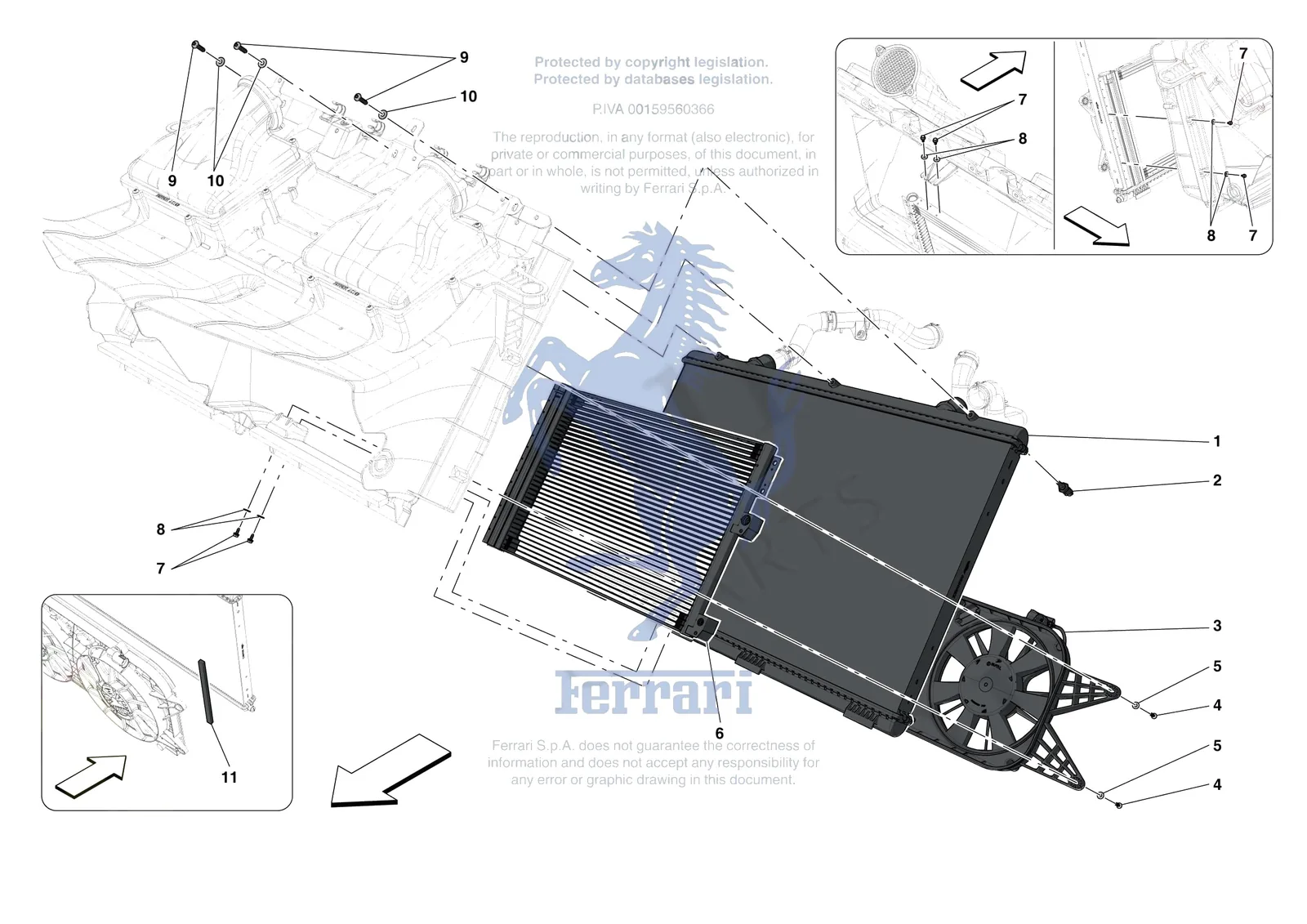

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari Roma Spider, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0063.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 336011 | Ferrari Radiatore Acqua Core Sp. - 336011 | $1,899.43 | Special order, ships in 7-14 days |
| 2 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 3 | 299048 | Ferrari Electric Fan Cowl - 299048 | $2,924.21 | Special order, ships in 7-14 days |
| 4 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 5 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 6 | 240590 | Ferrari AC Condenser - 240590 | $546.04 | In stock |
| 7 | 81973300 | Ferrari Screw M4.5 x 12 TBEI - 81973300 | $3.03 | Available, ships in 3-6 days |
| 8 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 11 | 329291 | Ferrari Rubber Shim - 329291 | $4.56 | Special order, ships in 7-14 days |
