Ferrari Roma Spider — [MECHANICAL SYSTEM] - D.26 - FRONT TORSION BAR (diagram 0078)

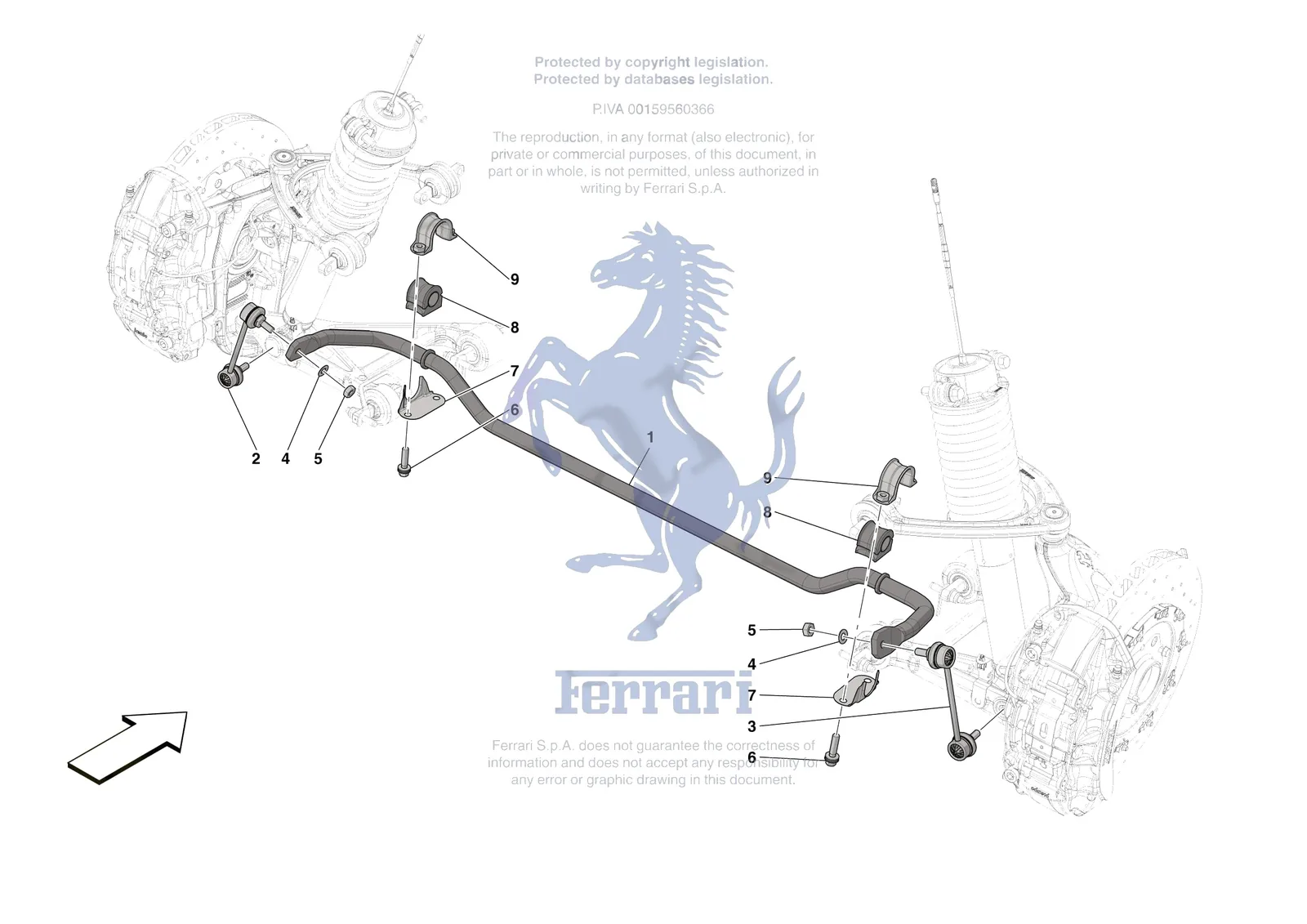

Exploded view of the [mechanical system] - d.26 - front torsion bar on the Ferrari Roma Spider, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [MECHANICAL SYSTEM] - D.26 - FRONT TORSION BAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0078.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| 1 | 864542 | Ferrari Barra Stabilizzatrice Ant. - 864542 | $787.90 | Special order, ships in 7-14 days |
| 2 | 242391/2 | Ferrari Rear Sway Bar Link Pair - 242391/2 | $328.90 | In stock |
| 2 | 242391 | Ferrari RH Ball Tie Rod - 242391 | $169.54 | Special order, ships in 7-14 days |
| 3 | 242392 | Ferrari LH Ball Tie Rod - 242392 | $178.81 | Special order, ships in 7-14 days |
| 4 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 5 | 12164714 | Ferrari Nut M10 x 1.25 x 8 - 12164714 | $0.82 | Available, ships in 3-6 days |
| 6 | 328463 | Ferrari Screw TE M10 x 1.25 x 40 with Washer - 328463 | $4.35 | Available, ships in 3-6 days |
| 7 | 286144 | Ferrari Bushing Bracket - 286144 | $39.31 | Available, ships in 3-6 days |
| 8 | 257806 | Ferrari Stabiliser Bar Bush - 257806 | $29.52 | Special order, ships in 7-14 days |
| 9 | 245822 | Ferrari Retainer Bracket - 245822 | $39.37 | Available, ships in 3-6 days |
