Ferrari Roma Spider — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari Roma Spider, with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

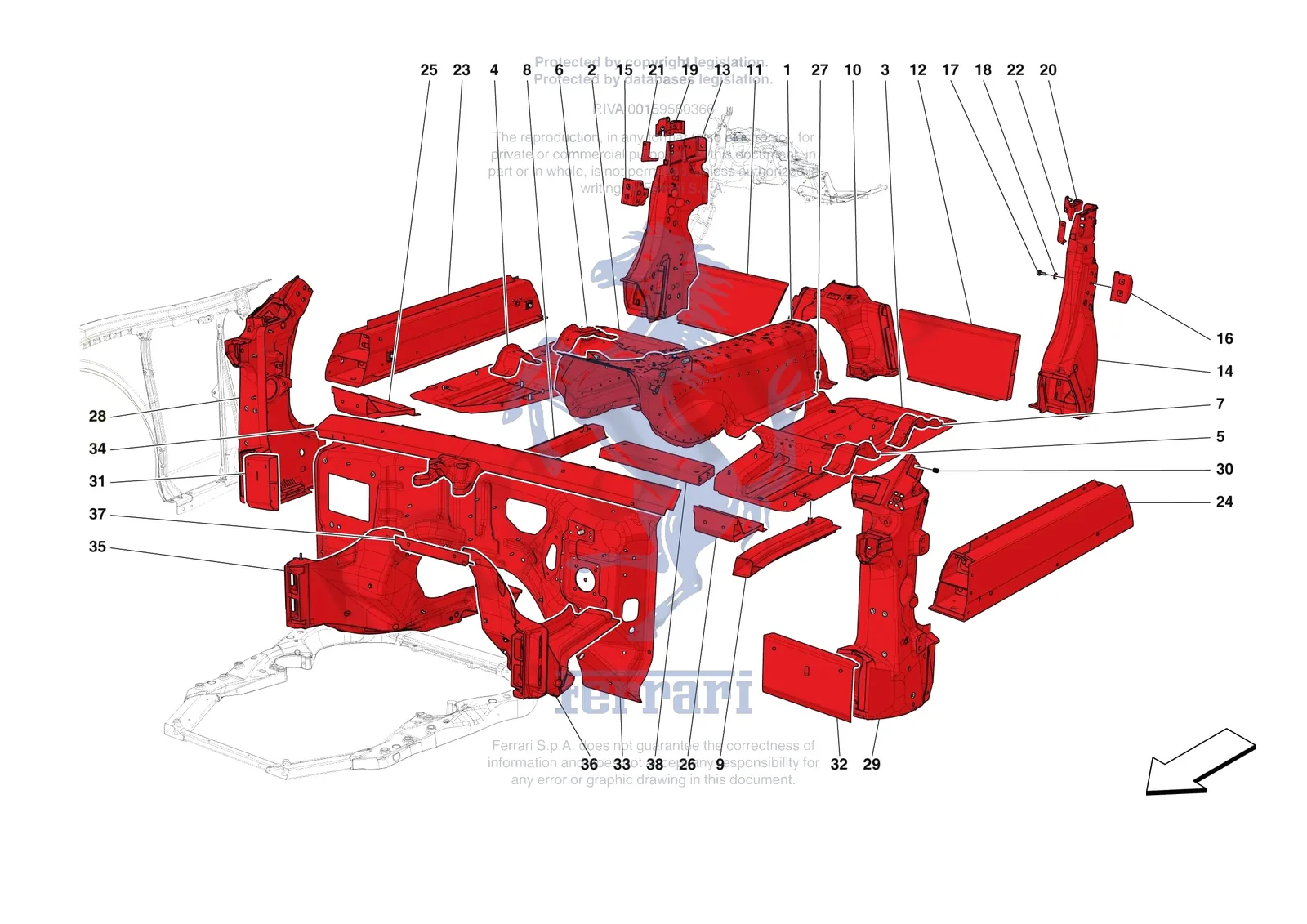

Ferrari Roma Spider [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
985927826Ferrari Compl. Firewall - 985927826SupersededOrder 985780570 instead
985338947Ferrari LH Rear Sill Reinforcement - 985338947$566.30Special order, ships in 7-14 days
985896452Ferrari LH Semi-Floor - 985896452SupersededOrder 985772460 instead
985786456Ferrari Valence Panel - 985786456SupersededOrder 985800431 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1985864195Ferrari COMPL. TUNNEL - 985864195Price on requestContact us for price and availability
1985954695Ferrari COMPL. TUNNEL - 985954695Price on requestContact us for price and availability
2985337797Ferrari RH Semi-Floor - 985337797$3,271.28Contact us to order
3955025501Ferrari LH Semi-Floor - 955025501SupersededOrder 985772460 instead
3985772460Ferrari LH Semi-Floor - 985772460$3,517.50Contact us to order
4985339313Ferrari RH Front Sill Reinforcement - 985339313$566.30Special order, ships in 7-14 days
5985339312Ferrari LH Front Sill Reinforcement - 985339312$566.30Special order, ships in 7-14 days
6985338948Ferrari RH Rear Sill Reinforcement - 985338948$566.30Special order, ships in 7-14 days
7985944938Ferrari LH Rear Sill Reinforcement - 985944938SupersededOrder 985338947 instead
8985335218Ferrari Compl. RH Lower Tunnel Beam - 985335218$1,501.96Special order, ships in 7-14 days
9985335193Ferrari Compl. LH Lower Tunnel Beam - 985335193$1,600.44Special order, ships in 7-14 days
10985334170Ferrari Compl. Rear Tunnel Casting - 985334170$5,303.98Special order, ships in 7-14 days
10985803904Ferrari Compl. Rear Tunnel Casting - 985803904$6,943.55Special order, ships in 7-14 days
11985337789Ferrari Compl. RH Rear Floor Cross M - 985337789$1,157.24Special order, ships in 7-14 days
12985337788Ferrari Compl. LH Rear Floor Cross M - 985337788$1,157.24Special order, ships in 7-14 days
13985864327Ferrari COMPL. RH B-PILLAR CASTING - 985864327Price on requestContact us for price and availability
14985864325Ferrari COMPL. LH B-PILLAR CASTING - 985864325Price on requestContact us for price and availability
15985947777Ferrari COMPL. RH STRIKER REINFORCEMENT - 985947777Price on requestContact us for price and availability
16985956209Ferrari COMPL. LH STRIKER REINFORCEMENT - 985956209Price on requestContact us for price and availability
1716287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
18219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
19985863713Ferrari COMPL. UPPER EXTRUSION FOR RH REAR PILLAR - 985863713Price on requestContact us for price and availability
20985863457Ferrari COMPL. UPPER EXTRUSION FOR LH REAR PILLAR - 985863457Price on requestContact us for price and availability
21863153Ferrari INNER RH B-PILLAR PLATE - 863153Price on requestContact us for price and availability
22863152Ferrari INNER LH B-PILLAR PLATE - 863152Price on requestContact us for price and availability
23985857309Ferrari COMPL. RH SILL - 985857309Price on requestContact us for price and availability
24985857306Ferrari COMPL. LH SILL - 985857306Price on requestContact us for price and availability
25985339817Ferrari Compl. RH Front Floor Cross - 985339817$886.38Special order, ships in 7-14 days
25985803915Ferrari Compl. RH Front Floor Cross - 985803915$1,428.09Special order, ships in 7-14 days
26985340712Ferrari Compl. LH Front Floor Cross - 985340712$886.38Special order, ships in 7-14 days
26985806342Ferrari Compl. LH Front Floor Cross - 985806342$1,378.85Special order, ships in 7-14 days
2784260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
28985864163Ferrari COMPL. RH A PILLAR CASTING - 985864163Price on requestContact us for price and availability
28985954702Ferrari COMPL. RH A PILLAR CASTING - 985954702Price on requestContact us for price and availability
29985864158Ferrari COMPL. LH A PILLAR CASTING - 985864158Price on requestContact us for price and availability
29985954699Ferrari COMPL. LH A PILLAR CASTING - 985954699Price on requestContact us for price and availability
30252199Ferrari Threaded Insert - 252199$34.40Special order, ships in 7-14 days
31985339596Ferrari RH A-Pillar Extrusion - 985339596$886.38Special order, ships in 7-14 days
32985337356Ferrari LH A-Pillar Extrusion - 985337356$837.14Special order, ships in 7-14 days
33985780570Ferrari Compl. Firewall - 985780570$4,324.18Contact us to order
33985904101Ferrari Sheld - 985904101$4,054.50Special order, ships in 7-14 days
34985800431Ferrari Valence Panel - 985800431$3,705.10Special order, ships in 7-14 days
34985800438Ferrari Valence Panel - 985800438$3,705.10Special order, ships in 7-14 days
35985333739Ferrari Compl. RH Front Tunnel Casti - 985333739$7,044.39Special order, ships in 7-14 days
35985803907Ferrari Compl. RH Front Tunnel Casti - 985803907$9,553.56Special order, ships in 7-14 days
36985333738Ferrari Compl. LH Front Tunnel Casti - 985333738$6,943.55Special order, ships in 7-14 days
36985806128Ferrari Compl. LH Front Tunnel Casti - 985806128$8,941.51Special order, ships in 7-14 days
37985321969Ferrari Upper Centre Tunnel Extruded - 985321969$664.78Special order, ships in 7-14 days
38335352Ferrari Traversa Supp.Campana Frizio - 335352$787.90Special order, ships in 7-14 days

All Roma Spider diagrams
