Ferrari Roma Spider — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

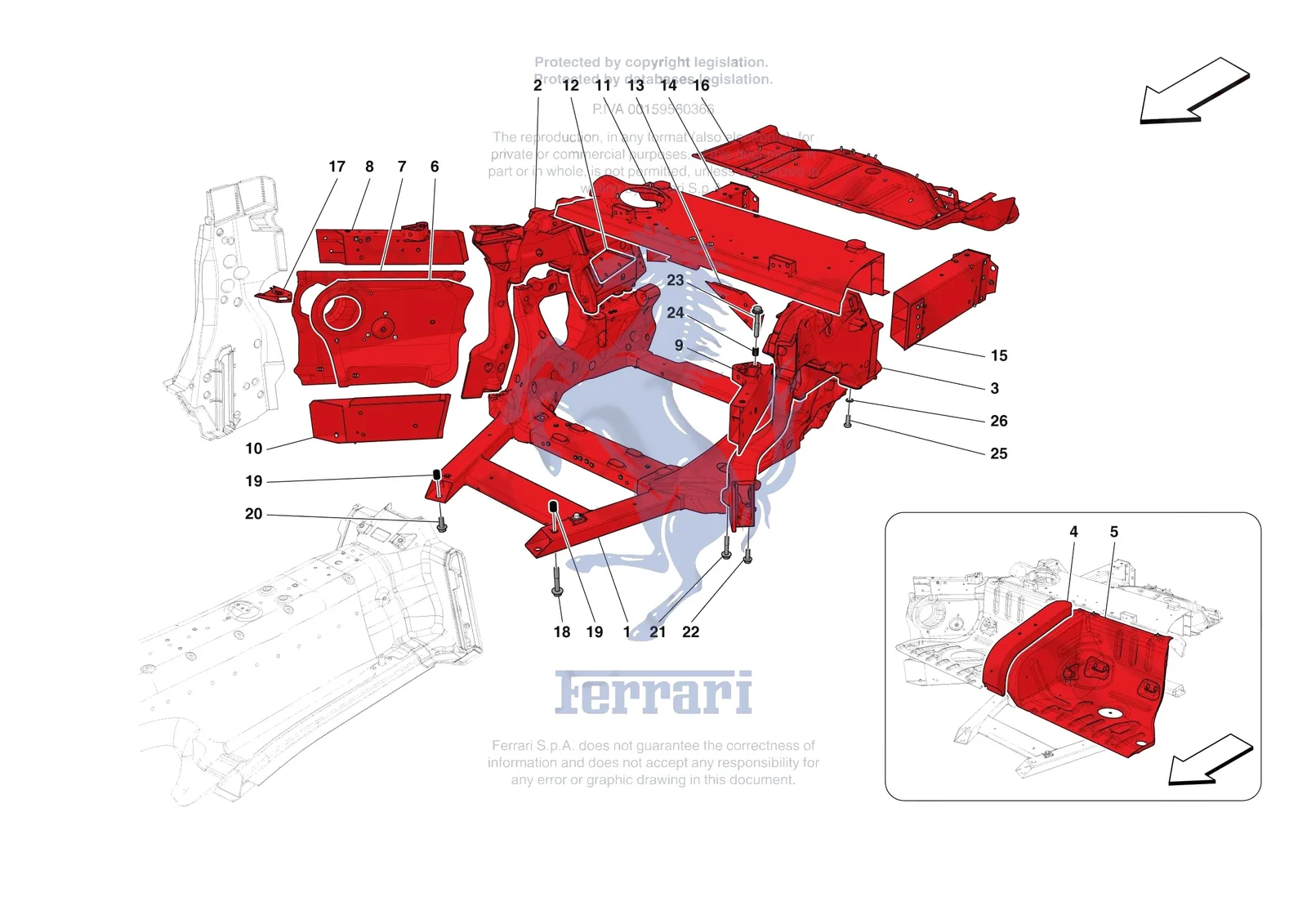

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari Roma Spider, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0097.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 985339878 | Ferrari Lower LH Rear Diagonal Brace - 985339878 | $1,157.24 | Special order, ships in 7-14 days | |
| 985339879 | Ferrari Lower RH Rear Diagonal Brace - 985339879 | $1,157.24 | Special order, ships in 7-14 days | |
| 985832489 | Ferrari Rear LH Strut - 985832489 | $2,204.29 | Special order, ships in 7-14 days | |
| 985832490 | Ferrari Rear RH Strut - 985832490 | $2,157.38 | Special order, ships in 7-14 days | |
| 128944 | Ferrari Washer D10.2-20 - 128944 | $3.68 | Available, ships in 3-6 days | |
| 1 | 985938113 | Ferrari Gearbox Subchassis - 985938113 | $54,959.90 | Contact us to order |
| 2 | 985335201 | Ferrari RH Upper Rear Suspension Cas - 985335201 | $6,800.52 | Special order, ships in 7-14 days |
| 3 | 985335200 | Ferrari LH Upper Rear Suspension Cas - 985335200 | $6,800.52 | Special order, ships in 7-14 days |
| 4 | 985338025 | Ferrari Compl. Centre Rear Bench Rei - 985338025 | $1,107.99 | Special order, ships in 7-14 days |
| 5 | 985780865 | Ferrari Compl. LH Rear Bench - 985780865 | $3,050.84 | Special order, ships in 7-14 days |
| 5 | 985864191 | Ferrari Compl. LH Rear Bench - 985864191 | Superseded | Order 985780865 instead |
| 5 | 985780866 | Ferrari Compl. RH Rear Bench - 985780866 | $3,050.84 | Special order, ships in 7-14 days |
| 5 | 985864193 | Ferrari Compl. RH Rear Bench - 985864193 | Superseded | Order 985780866 instead |
| 6 | 985339745 | Ferrari LH Inner Flank - 985339745 | $1,107.99 | Special order, ships in 7-14 days |
| 6 | 985339746 | Ferrari RH Inner Flank - 985339746 | $1,107.99 | Special order, ships in 7-14 days |
| 7 | 985868682 | Ferrari Compl. LH Outer Flank - 985868682 | $1,083.38 | Special order, ships in 7-14 days |
| 7 | 985868685 | Ferrari Compl. RH Outer Flank - 985868685 | $1,083.38 | Special order, ships in 7-14 days |
| 8 | 985873249 | Ferrari COMPL. RH UPPER REAR DIAGONAL BRACE - 985873249 | Price on request | Contact us for price and availability |
| 9 | 985873248 | Ferrari COMPL. LH UPPER REAR DIAGONAL BRACE - 985873248 | Price on request | Contact us for price and availability |
| 10 | 985860491 | Ferrari Lower LH Rear Diagonal Brace - 985860491 | $911.01 | Special order, ships in 7-14 days |
| 10 | 985952848 | Ferrari Lower RH Rear Diagonal Brace - 985952848 | $911.01 | Special order, ships in 7-14 days |
| 11 | 985861538 | Ferrari COMPL. REAR TANK END CROSS MEMBER - 985861538 | Price on request | Contact us for price and availability |
| 12 | 985337557 | Ferrari RH K-Brace - 985337557 | $1,008.09 | Special order, ships in 7-14 days |
| 13 | 985337556 | Ferrari LH K-Brace - 985337556 | $1,008.09 | Special order, ships in 7-14 days |
| 14 | 985861872 | Ferrari Rear RH Strut - 985861872 | $1,696.56 | Special order, ships in 7-14 days |
| 15 | 985861869 | Ferrari Rear LH Strut - 985861869 | Superseded | Order 985832489 instead |
| 15 | 985978759 | Ferrari Rear LH Strut - 985978759 | Superseded | Order 985832489 instead |
| 16 | 955052306 | Ferrari COMPLETE SPARE WHEEL TRAY - 955052306 | Price on request | Contact us for price and availability |
| 16 | 985832484 | Ferrari Complete Spare Wheel Tray - 985832484 | $3,076.63 | Special order, ships in 7-14 days |
| 17 | 985334254 | Ferrari Rear LH Hose Bracket - 985334254 | $517.04 | Special order, ships in 7-14 days |
| 17 | 985334256 | Ferrari Rear RH Hose Bracket - 985334256 | $517.04 | Special order, ships in 7-14 days |
| 18 | 749854 | Ferrari Screw TE M12 x 1.25 x 75 with Washer - 749854 | $8.95 | Available, ships in 3-6 days |
| 19 | 252486 | Ferrari Threaded Insert - 252486 | $66.35 | Special order, ships in 7-14 days |
| 20 | 16289834 | Ferrari Screw Flanged M12 x 1.25 x 30 - 16289834 | $2.82 | Available, ships in 3-6 days |
| 21 | 749853 | Ferrari Screw TE M10 x 1.25 x 60 with Washer - 749853 | $5.44 | Available, ships in 3-6 days |
| 22 | 68984500 | Ferrari Screw TEF M10 x 1.25 x 30 - 68984500 | $5.86 | Available, ships in 3-6 days |
| 23 | 299578 | Ferrari Hex Head Screw M10X1.25X70 Con 2 Ro - 299578 | $5.65 | Special order, ships in 7-14 days |
| 24 | 252200 | Ferrari Threaded Insert - 252200 | $18.32 | Special order, ships in 7-14 days |
| 25 | 11306934 | Ferrari Screw M10 x 1.25 x 30 - 11306934 | $1.04 | Available, ships in 3-6 days |
| 26 | 13550424 | Ferrari Washer - 13550424 | $0.31 | Available, ships in 3-6 days |
| 26 | 13550401 | Ferrari Washer 10.2-20x2 - 13550401 | $0.31 | Available, ships in 3-6 days |
