Ferrari Roma Spider — [VEHICLE TRIM] - E.25 - WINDSCREEN (diagram 0124)
Exploded view of the [vehicle trim] - e.25 - windscreen on the Ferrari Roma Spider, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

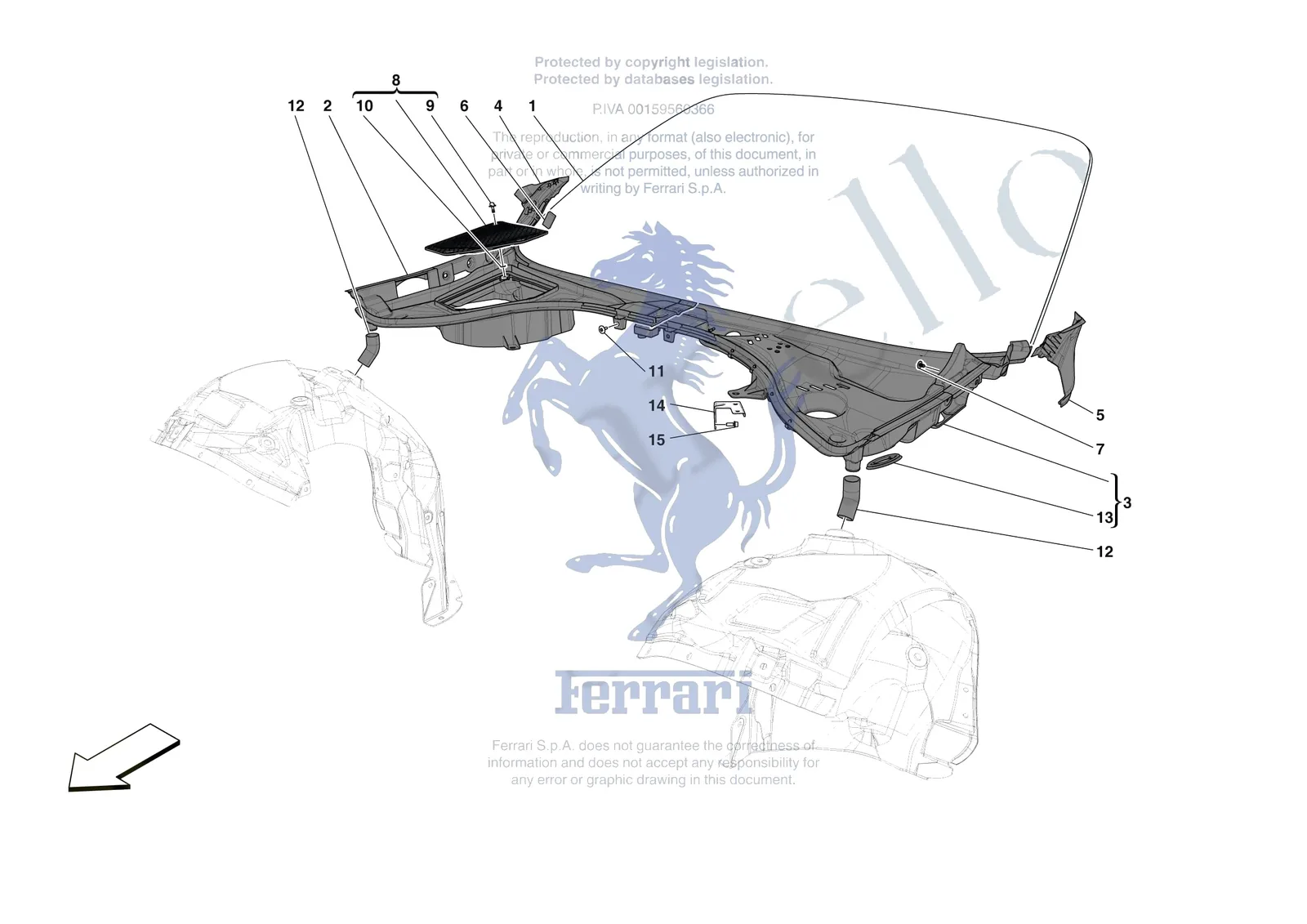

![Ferrari Roma Spider [VEHICLE TRIM] - E.25 - WINDSCREEN exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0124.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 768977 | Ferrari Battery Cover - 768977 | Superseded | Order 768976 instead | |
| 88960700 | Ferrari Compl. Battery Cover - 88960700 | Superseded | Order 88960600 instead | |
| 88960800 | Ferrari Compl. Battery Cover - 88960800 | Superseded | Order 88960600 instead | |
| 973687 | Ferrari Compl. LH Underwindscreen Tr - 973687 | Superseded | Order 952348 instead | |
| 972987 | Ferrari Compl. RH Underwindscreen Tr - 972987 | $935.64 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 768978 | Ferrari Water Basket - 768978 | Superseded | Order 768976 instead | |
| 1 | 852677 | Ferrari Compl. Windscreen - 852677 | $5,033.93 | Contact us to order |
| 1 | 852727 | Ferrari Compl. Windscreen - 852727 | $4,894.27 | Contact us to order |
| 2 | 744113 | Ferrari Compl. RH Underwindscreen Tr - 744113 | $935.64 | Special order, ships in 7-14 days |
| 2 | 900442 | Ferrari Compl. RH Underwindscreen Tr - 900442 | $861.77 | Special order, ships in 7-14 days |
| 3 | 916537 | Ferrari Compl. LH Underwindscreen Tr - 916537 | $1,083.38 | Special order, ships in 7-14 days |
| 3 | 952348 | Ferrari Compl. LH Underwindscreen Tr - 952348 | $837.14 | Special order, ships in 7-14 days |
| 4 | 852855 | Ferrari RH A-Pillar Seal - 852855 | $148.81 | Special order, ships in 7-14 days |
| 5 | 852829 | Ferrari LH A-Pillar Seal - 852829 | $133.48 | Special order, ships in 7-14 days |
| 6 | 974421 | Ferrari A-Pillar Seal Nitto - 974421 | $6.32 | Special order, ships in 7-14 days |
| 7 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 8 | 768976 | Ferrari Battery Cover - 768976 | $189.56 | Special order, ships in 7-14 days |
| 8 | 88960600 | Ferrari Compl. Battery Cover - 88960600 | $204.34 | Special order, ships in 7-14 days |
| 9 | 84927100 | Ferrari Quarter Turn Screw - 84927100 | $14.00 | In stock |
| 10 | 83957000 | Ferrari Fastening For Screw - 83957000 | $15.51 | Available, ships in 3-6 days |
| 11 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
| 12 | 88271700 | Ferrari Underwindscreen Tray Water Pipe - 88271700 | $0.92 | Special order, ships in 7-14 days |
| 13 | 82742000 | Ferrari Ring - 82742000 | $110.61 | Special order, ships in 7-14 days |
| 14 | 768078 | Ferrari Compl. RH Underwindscreen Tr - 768078 | $66.45 | Special order, ships in 7-14 days |
| 14 | 919347 | Ferrari Complete LH Under Windscreen Tray Fastener Bracket - 919347 | $51.67 | Special order, ships in 7-14 days |
| 15 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
