Ferrari Roma Spider — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari Roma Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

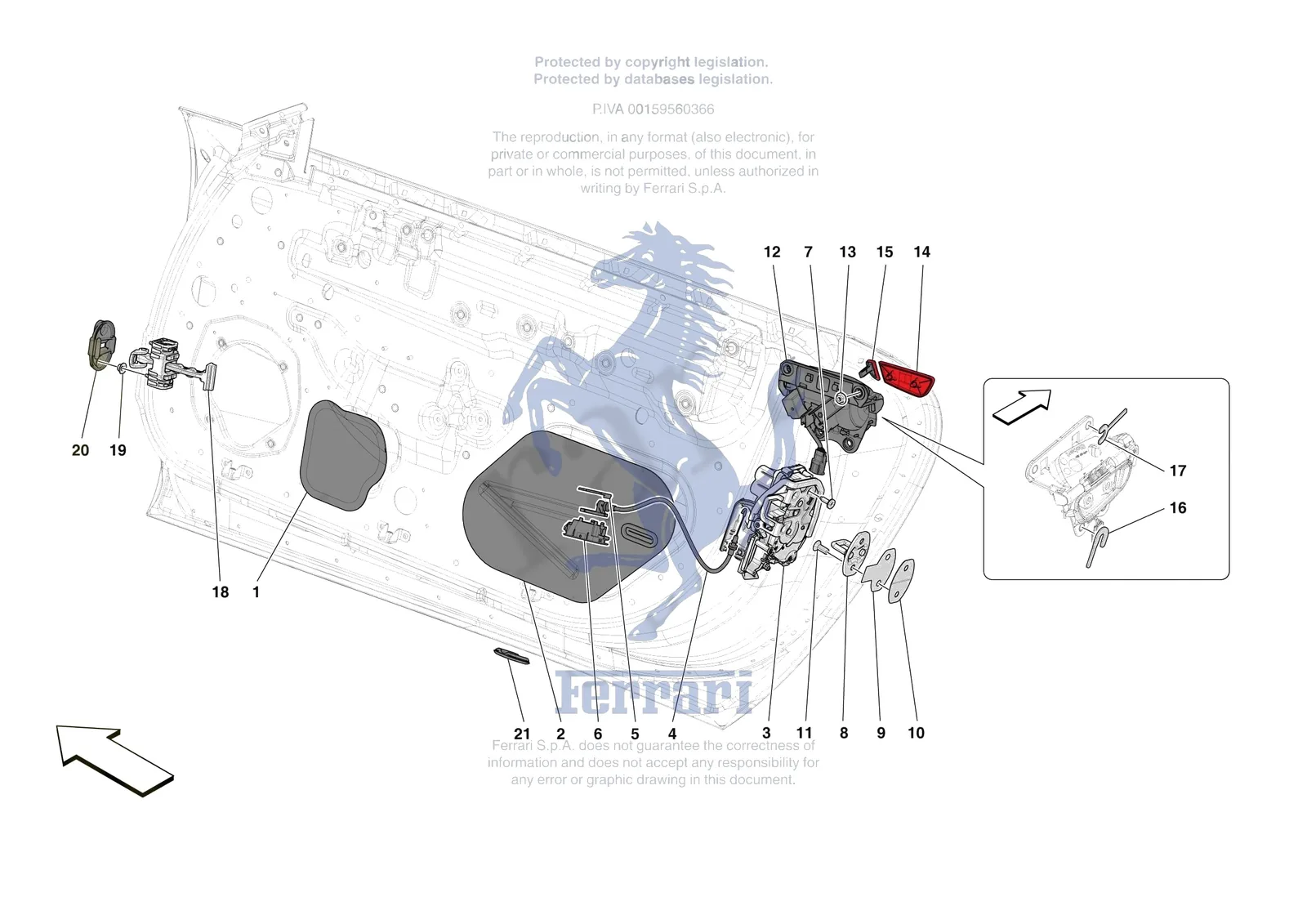

Ferrari Roma Spider [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
848279Ferrari Door Striker Plate Shim - 848279SupersededOrder 802693 instead
805772Ferrari LH Outer Door Handle Module - 805772SupersededOrder 787474 instead
880201Ferrari Maniglia Back-Up Apertura Po - 880201SupersededOrder 831375 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
805799Ferrari RH Outer Door Handle Module - 805799SupersededOrder 787476 instead
952826Ferrari Tirante Arresto Porta Contin - 952826SupersededOrder 69877300 instead
1901337Ferrari LH Front Door Membrane - 901337$91.08Special order, ships in 7-14 days
1901338Ferrari RH Front Door Membrane - 901338$91.08Available, ships in 3-6 days
2967654Ferrari LH Door Waterproof Membrane - 967654$59.07Special order, ships in 7-14 days
2967655Ferrari RH Door Waterproof Membrane - 967655$59.07Special order, ships in 7-14 days
3804856Ferrari LH Door Lock - 804856$958.91Special order, ships in 7-14 days
3804879Ferrari LH Door Lock - 804879$1,008.09Special order, ships in 7-14 days
3804870Ferrari RH Door Lock - 804870$958.91Special order, ships in 7-14 days
3804886Ferrari RH Door Lock - 804886$1,008.09Special order, ships in 7-14 days
4952875Ferrari Bowden Maniglia Interna Port - 952875$91.08Special order, ships in 7-14 days
455034983Ferrari COMPL. INNER DOOR HANDLE BOWDEN CABLE - 55034983Price on requestContact us for price and availability
5880232Ferrari Upper Cover - 880232$12.99Special order, ships in 7-14 days
6831375Ferrari Compl. Door Handle - 831375$19.40Special order, ships in 7-14 days
780874100Ferrari Screw Torx - 80874100$1.97Available, ships in 3-6 days
8808736Ferrari Door Lock Striker Plate - 808736$29.48Special order, ships in 7-14 days
9924578Ferrari Pellicola Per Scontrino Port - 924578$14.39Special order, ships in 7-14 days
10802693Ferrari Door Striker Plate Shim - 802693$15.05Special order, ships in 7-14 days
1185133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
12787474Ferrari LH Outer Door Handle Module - 787474$443.17Special order, ships in 7-14 days
12787460Ferrari Modulo Maniglia Est Cpl - 787460$714.03Special order, ships in 7-14 days
12787467Ferrari RH Outer Door Handle Module - 787467$443.17Special order, ships in 7-14 days
12787476Ferrari RH Outer Door Handle Module - 787476$714.03Special order, ships in 7-14 days
1313046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
1313046111Ferrari Nut 6x6 - 13046111$0.73Special order, ships in 7-14 days
14970486Ferrari LH Handle Two/Component Paddle - 970486$98.46Special order, ships in 7-14 days
14970491Ferrari RH Handle Two/Component Paddle - 970491$98.46Special order, ships in 7-14 days
15939899Ferrari LH Handle Button - 939899$22.87Special order, ships in 7-14 days
15940534Ferrari RH Handle Button - 940534$22.87Special order, ships in 7-14 days
16263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
16263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
16263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
16263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
17238692Ferrari Camber Spacer 0.5mm - 238692$12.65Special order, ships in 7-14 days
17238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
17238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
17238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
1869877300Ferrari Door Arrester Tie-Rod - 69877300$108.31Special order, ships in 7-14 days
1914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
2083897000Ferrari Door Arrester Tie-Rod Seal - 83897000$24.32Special order, ships in 7-14 days
21815687Ferrari Tappo Otturazione Asola - 815687$13.32Special order, ships in 7-14 days
