Ferrari Roma Spider — [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER (diagram 0130)

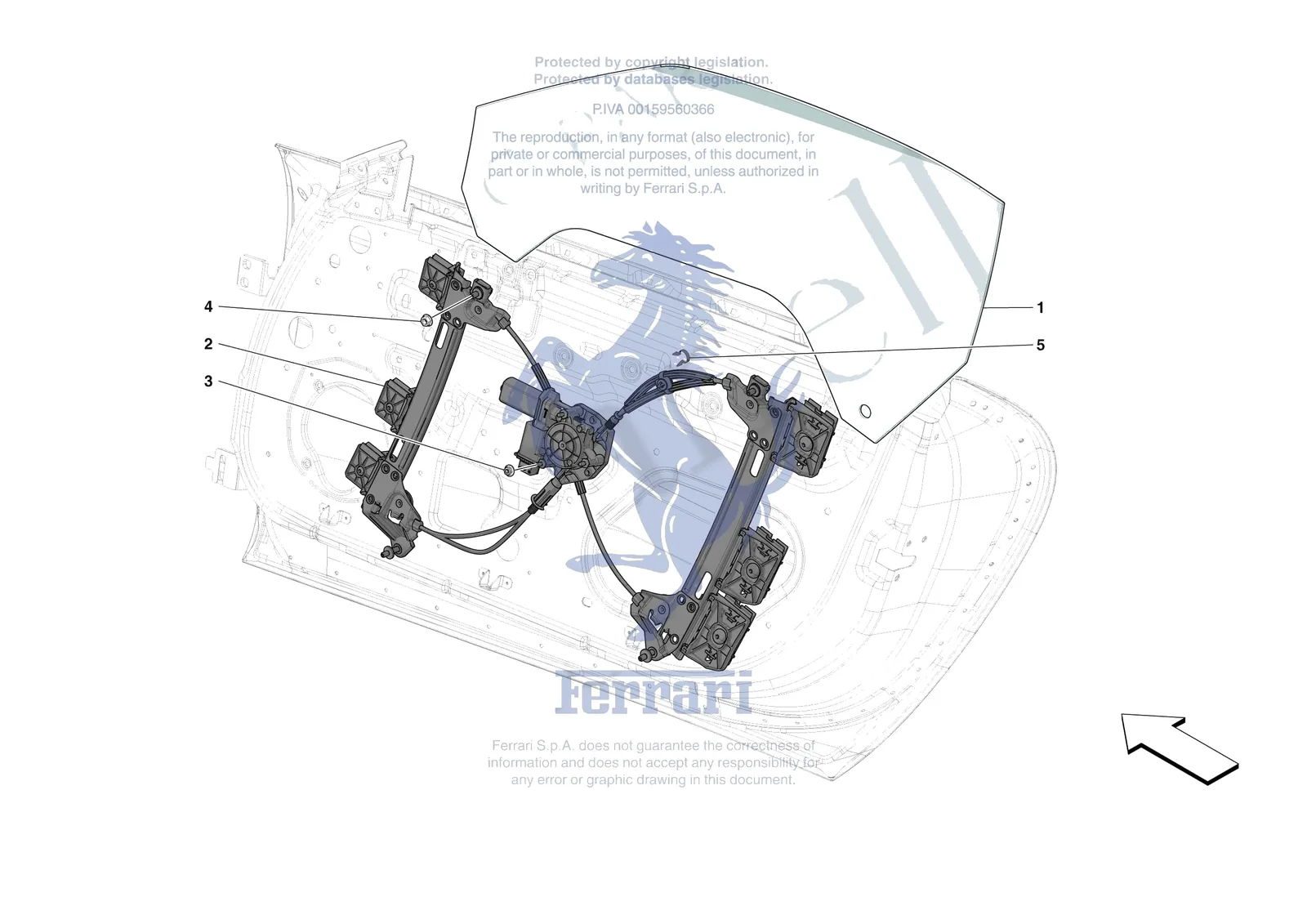

Exploded view of the [vehicle trim] - e.29.03 - doors - window and window lifter on the Ferrari Roma Spider, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0130.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 851819 | Ferrari LH Door Window - 851819 | $284.51 | Contact us to order |
| 1 | 851820 | Ferrari RH Door Window - 851820 | $284.51 | Contact us to order |
| 2 | 968851 | Ferrari Alzacristallo Porta Ant. Sx - 968851 | $1,225.63 | Contact us to order |
| 2 | 968858 | Ferrari RH Front Door Window Lifter - 968858 | $1,225.63 | Special order, ships in 7-14 days |
| 3 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 4 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 5 | 813919 | Ferrari Clip - 813919 | $0.86 | Special order, ships in 7-14 days |
