Ferrari Roma Spider — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

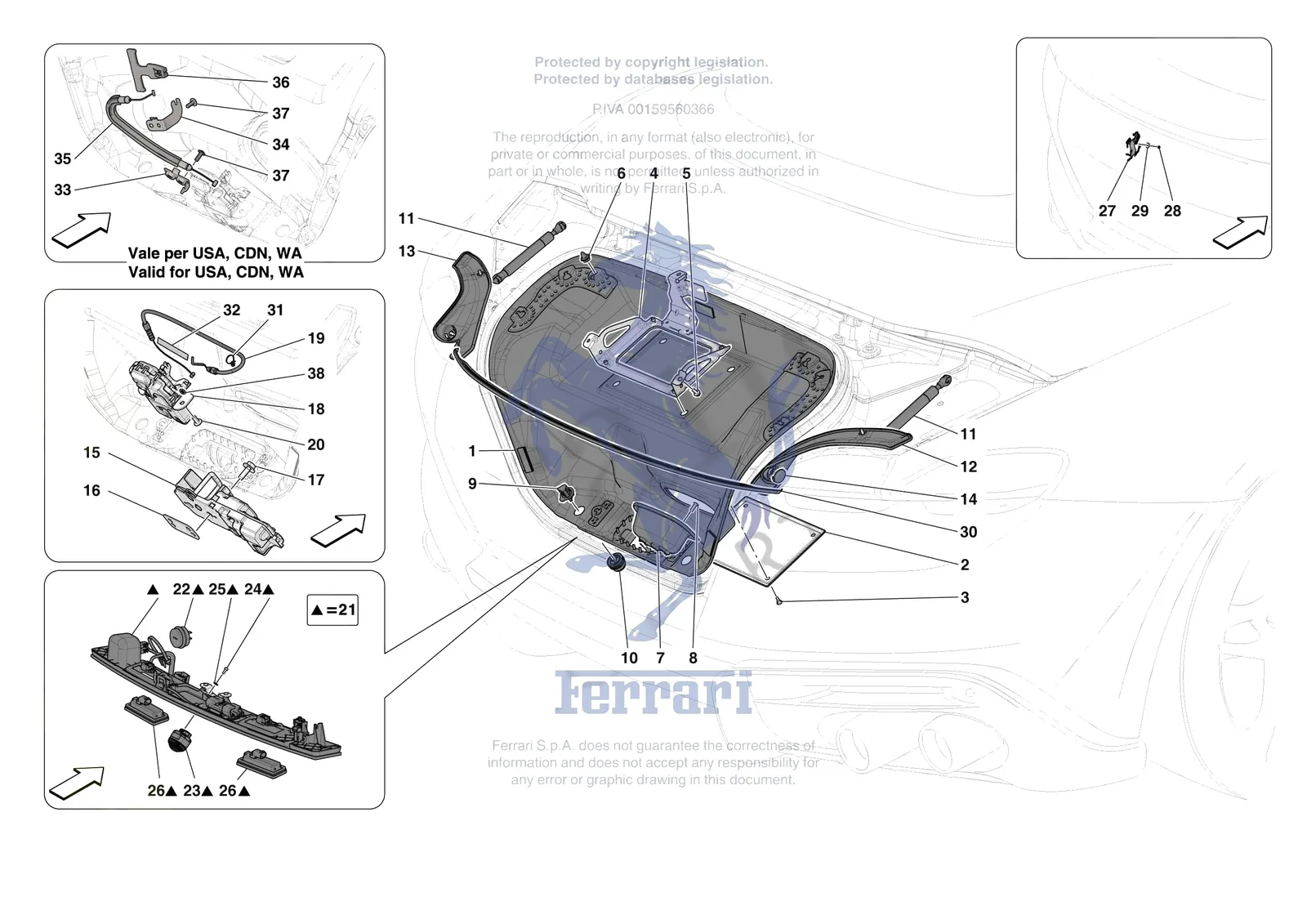

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari Roma Spider, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0137.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 782990 | Ferrari Cavo Bowden Mostrina Luci Ta - 782990 | $83.68 | Special order, ships in 7-14 days | |
| 84537500 | Ferrari Electric Lock - 84537500 | Superseded | Order 85051400 instead | |
| 84820000 | Ferrari Electric Lock - 84820000 | Superseded | Order 85051400 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 775844 | Ferrari Compl. Lid Trim - 775844 | $714.03 | Special order, ships in 7-14 days |
| 1 | 948318 | Ferrari Compl. Lid Trim - 948318 | $714.03 | Special order, ships in 7-14 days |
| 2 | 87731010 | Ferrari Vehicle Opt. List Holder - 87731010 | $614.67 | Special order, ships in 7-14 days |
| 3 | 981491 | Ferrari Screw M4 x 10 Collar D6.3 - 981491 | $12.67 | Special order, ships in 7-14 days |
| 4 | 887917 | Ferrari License Plate Mount - 887917 | $182.18 | Special order, ships in 7-14 days |
| 5 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 6 | 82672700 | Ferrari Fixing Clip - 82672700 | $1.67 | Available, ships in 3-6 days |
| 7 | 977285 | Ferrari Luggage Compartment Lid Handle - 977285 | $27.03 | Special order, ships in 7-14 days |
| 8 | 13311077 | Ferrari Screw M5 x 16 TSCIC - 13311077 | $0.27 | Available, ships in 3-6 days |
| 9 | 958106 | Ferrari Luggage Compartment Lid Lower Damper - 958106 | $18.17 | Special order, ships in 7-14 days |
| 10 | 958109 | Ferrari Luggage Compartment Lid Upper Damper - 958109 | $41.76 | Special order, ships in 7-14 days |
| 11 | 899600 | Ferrari Stabilus Gas Strut - 899600 | $56.89 | Special order, ships in 7-14 days |
| 12 | 851930 | Ferrari RH Luggage Compartment Surro - 851930 | $96.01 | Special order, ships in 7-14 days |
| 13 | 851926 | Ferrari LH Luggage Compartment Surro - 851926 | $96.01 | Special order, ships in 7-14 days |
| 14 | 985968 | Ferrari Tappo Mostrina Baule Dx - 985968 | $14.99 | Special order, ships in 7-14 days |
| 14 | 985967 | Ferrari Tappo Mostrina Baule Sx - 985967 | $14.99 | Special order, ships in 7-14 days |
| 15 | 83629000 | Ferrari Lock Striker - 83629000 | $1,083.38 | Special order, ships in 7-14 days |
| 16 | 84718500 | Ferrari Striker Reinforcement Plate - 84718500 | $19.42 | Special order, ships in 7-14 days |
| 17 | 82271400 | Ferrari Screw with Washer M8 x 25 TE - 82271400 | $2.59 | Available, ships in 3-6 days |
| 18 | 85051400 | Ferrari Electric Lock - Trunk - 85051400 | $177.00 | Special order, ships in 7-14 days |
| 19 | 893732 | Ferrari Bowden Cable - 893732 | $88.61 | Special order, ships in 7-14 days |
| 20 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 21 | 915113 | Ferrari Complete Licence Plate Light Surround - 915113 | $3,470.59 | Special order, ships in 7-14 days |
| 21 | 970461 | Ferrari Complete Licence Plate Light Surround - 970461 | $3,801.24 | Special order, ships in 7-14 days |
| 22 | 306715 | Ferrari Magnetic Battery Conditioner Jack - 306715 | $293.71 | Special order, ships in 7-14 days |
| 23 | 852295 | Ferrari Rear Camera - 852295 | $2,248.03 | Special order, ships in 7-14 days |
| 23 | 818615 | Ferrari Surround Camera - 818615 | $1,967.03 | Special order, ships in 7-14 days |
| 23 | 990172 | Ferrari Surround Camera - 990172 | $1,943.61 | Special order, ships in 7-14 days |
| 24 | 14418074 | Ferrari Screw M3x8 - 14418074 | $0.40 | Available, ships in 3-6 days |
| 25 | 12639901 | Ferrari Washer - 12639901 | $0.17 | Available, ships in 3-6 days |
| 26 | 307799 | Ferrari Light - 307799 | $87.40 | Special order, ships in 7-14 days |
| 27 | 988983 | Ferrari CAVALLINO RAMPANTE BADGE - 988983 | $56.27 | Special order, ships in 7-14 days |
| 27 | 968776 | Ferrari Prancing Horse Badge - 968776 | $93.53 | Special order, ships in 7-14 days |
| 28 | 16101711 | Ferrari Nut M3 x 2.4 - 16101711 | $0.17 | Available, ships in 3-6 days |
| 29 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 30 | 779228 | Ferrari Luggage Compartment Seal - 779228 | $161.94 | Special order, ships in 7-14 days |
| 31 | 69708300 | Ferrari Clip - 69708300 | $2.59 | Available, ships in 3-6 days |
| 32 | 84801200 | Ferrari Adhesive Strip - 84801200 | $13.99 | Special order, ships in 7-14 days |
| 33 | 763831 | Ferrari Lower Fastener Bracket For E - 763831 | $51.67 | Special order, ships in 7-14 days |
| 34 | 916632 | Ferrari Fastener Bracket For Emergen - 916632 | $29.52 | Special order, ships in 7-14 days |
| 35 | 927440 | Ferrari Bowden Cable - 927440 | $78.76 | Special order, ships in 7-14 days |
| 36 | 66403900 | Ferrari Emergency Trunk Release Handle - 66403900 | $74.00 | In stock |
| 37 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 38 | 999530 | Ferrari Clip - 999530 | $0.90 | Special order, ships in 7-14 days |
