Ferrari Roma Spider — [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO (diagram 0144)
Exploded view of the [vehicle trim] - e.42 - rear active aero on the Ferrari Roma Spider, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

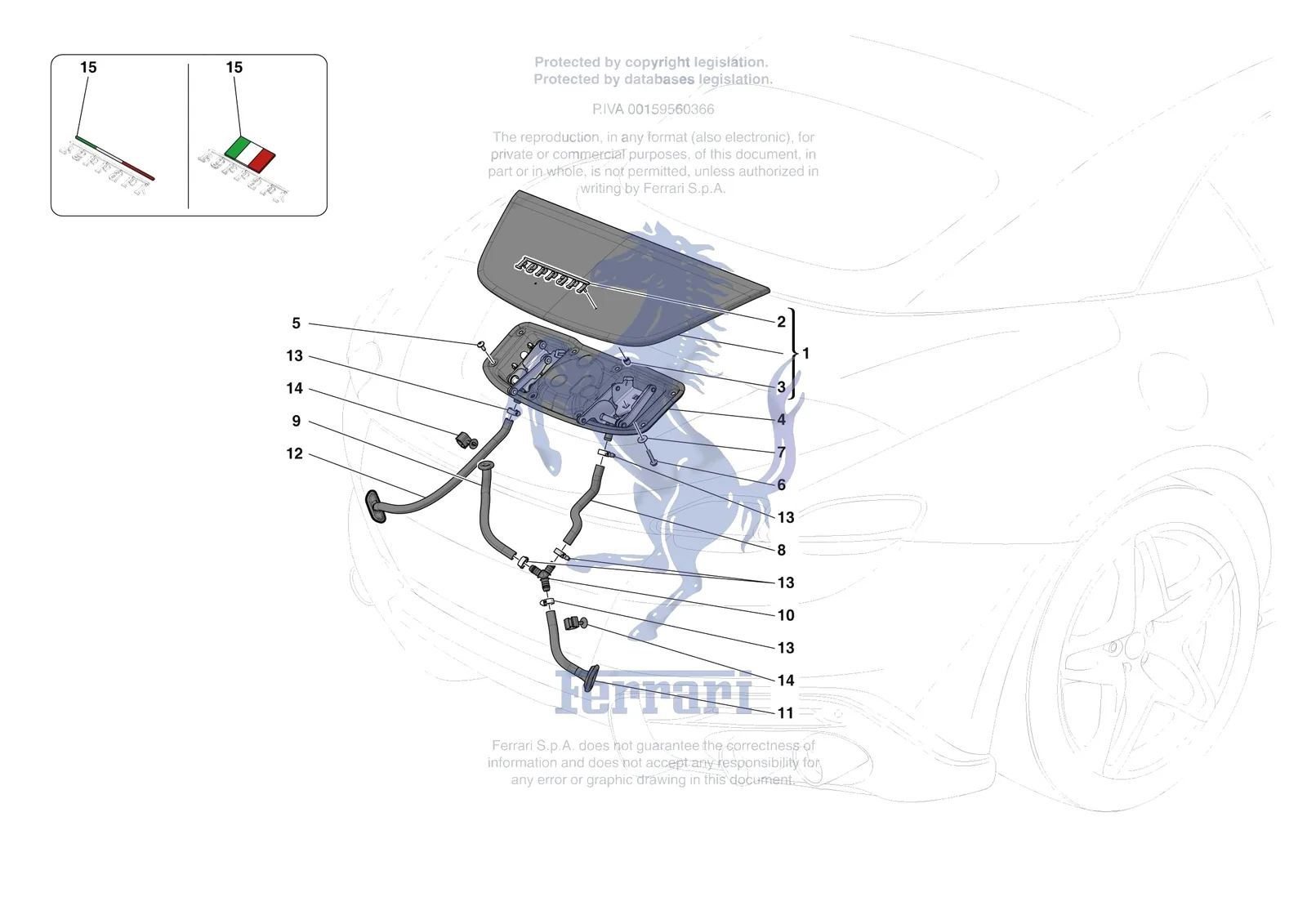

![Ferrari Roma Spider [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0144.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55036575 | Ferrari Compl. Variable Geometry Win - 55036575 | $3,988.84 | Special order, ships in 7-14 days |
| 1 | 55036593 | Ferrari Compl. Variable Geometry Win - 55036593 | $8,462.32 | Special order, ships in 7-14 days |
| 1 | 852538 | Ferrari Compl. Variable Geometry Win - 852538 | Superseded | Order 55036575 instead |
| 1 | 940302 | Ferrari Compl. Variable Geometry Win - 940302 | Superseded | Order 55036593 instead |
| 1 | 70008210 | Ferrari COMPL. VARIABLE GEOMETRY WING - 70008210 | Price on request | Contact us for price and availability |
| 2 | 775836 | Ferrari 2-Pin Ferrari Badge - 775836 | $108.31 | Special order, ships in 7-14 days |
| 2 | 896035 | Ferrari 2-Pin Ferrari Badge - 896035 | $192.03 | Special order, ships in 7-14 days |
| 3 | 84952000 | Ferrari Cosmetic Cap - 84952000 | $16.45 | Available, ships in 3-6 days |
| 4 | 902637 | Ferrari Compl. Tub Mechanism - 902637 | $6,702.02 | Special order, ships in 7-14 days |
| 5 | 774707 | Ferrari Torx Screw M6X18 Ros.Imp. D.1 - 774707 | $5.65 | Special order, ships in 7-14 days |
| 6 | 775076 | Ferrari Screw M6 x 35 - 775076 | $8.72 | Special order, ships in 7-14 days |
| 7 | 983365 | Ferrari Washer D.6.2x20x1.5 - 983365 | $0.63 | Special order, ships in 7-14 days |
| 8 | 951421 | Ferrari Wing Drain Pipe - 951421 | $23.61 | Special order, ships in 7-14 days |
| 9 | 951420 | Ferrari RH Upper Lid Drain Pipe - 951420 | $81.23 | Special order, ships in 7-14 days |
| 10 | 951409 | Ferrari 3-Way Connector - 951409 | $10.83 | Special order, ships in 7-14 days |
| 11 | 951419 | Ferrari RH Lower Lid Drain Pipe - 951419 | $78.76 | Special order, ships in 7-14 days |
| 12 | 963941 | Ferrari Tubo Scolo Acqua Vasca Ala M - 963941 | $78.76 | Special order, ships in 7-14 days |
| 13 | 161490 | Ferrari Hose Clip 12 - 20 x 9 - 161490 | $3.91 | Available, ships in 3-6 days |
| 14 | 927664 | Ferrari Clip Connector - Rotatable - 927664 | $4.14 | Special order, ships in 7-14 days |
| 15 | 55024105 | Ferrari Italian Flag Badge - 55024105 | $1,076.99 | Special order, ships in 7-14 days |
| 15 | 84542200 | Ferrari Italian Flag Badge - 84542200 | Price on request | Special order, ships in 7-14 days |
| 15 | 988640 | Ferrari Italian Flag Badge - 988640 | $835.97 | Available, ships in 3-6 days |
