Ferrari Roma Spider — [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- (diagram 0150)

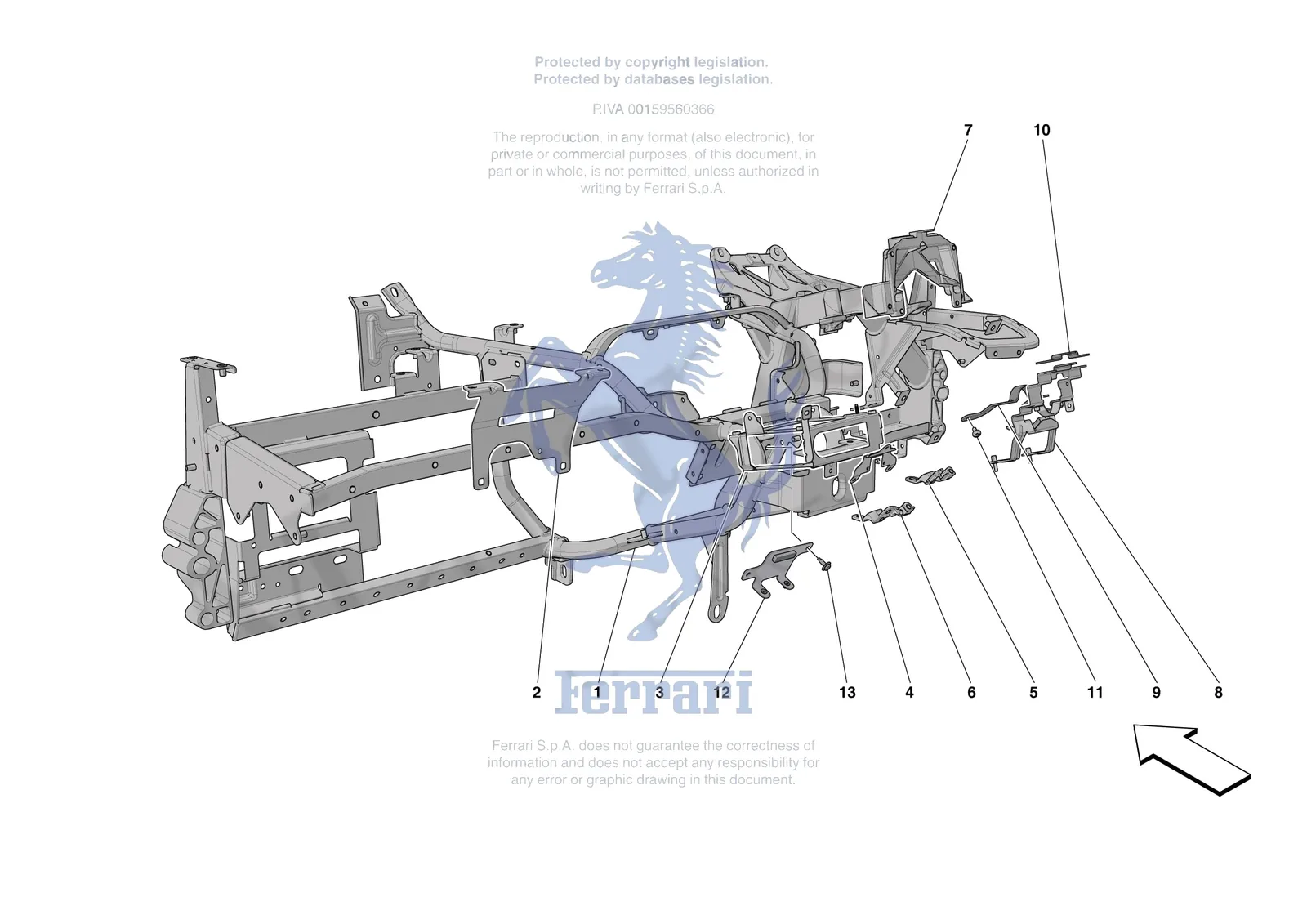

Exploded view of the [vehicle trim] - e.47.02 - dashboard - substructure -applicable for rhd- on the Ferrari Roma Spider, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0150.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 940779 | Ferrari Upper Bracket for Lower Steering Column Trim - 940779 | $41.82 | Special order, ships in 7-14 days | |
| 1 | 914436 | Ferrari Dashboard Cross Member - 914436 | $5,630.35 | Special order, ships in 7-14 days |
| 2 | 916502 | Ferrari Passenger Side Cover Reinfor - 916502 | $78.76 | Special order, ships in 7-14 days |
| 3 | 915116 | Ferrari Nit - Nav Bracket - 915116 | $228.97 | Special order, ships in 7-14 days |
| 4 | 940771 | Ferrari Mounting Bracket For Engine - 940771 | $125.54 | Special order, ships in 7-14 days |
| 5 | 901113 | Ferrari RH Flank Fastener Bracket - 901113 | $15.24 | Special order, ships in 7-14 days |
| 6 | 901111 | Ferrari LH Flank Fastener Bracket - 901111 | $15.24 | Special order, ships in 7-14 days |
| 7 | 898332 | Ferrari Instrument Bracket - 898332 | $73.85 | Special order, ships in 7-14 days |
| 8 | 837920 | Ferrari Lower Bracket for Steering Column Trim - 837920 | $155.10 | Special order, ships in 7-14 days |
| 8 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 9 | 870753 | Ferrari Upper Bracket for Lower Steering Column Trim - 870753 | $36.92 | Special order, ships in 7-14 days |
| 10 | 837930 | Ferrari Upper Steering Column Trim Bracket - 837930 | $22.60 | Special order, ships in 7-14 days |
| 11 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 11 | 15688801 | Ferrari Screw M3.5 x 13 - 15688801 | Superseded | Order 63343400 instead |
| 12 | 946002 | Ferrari Myferrari Connect ECU Bracke - 946002 | $88.61 | Special order, ships in 7-14 days |
| 13 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
