Ferrari Roma Spider — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

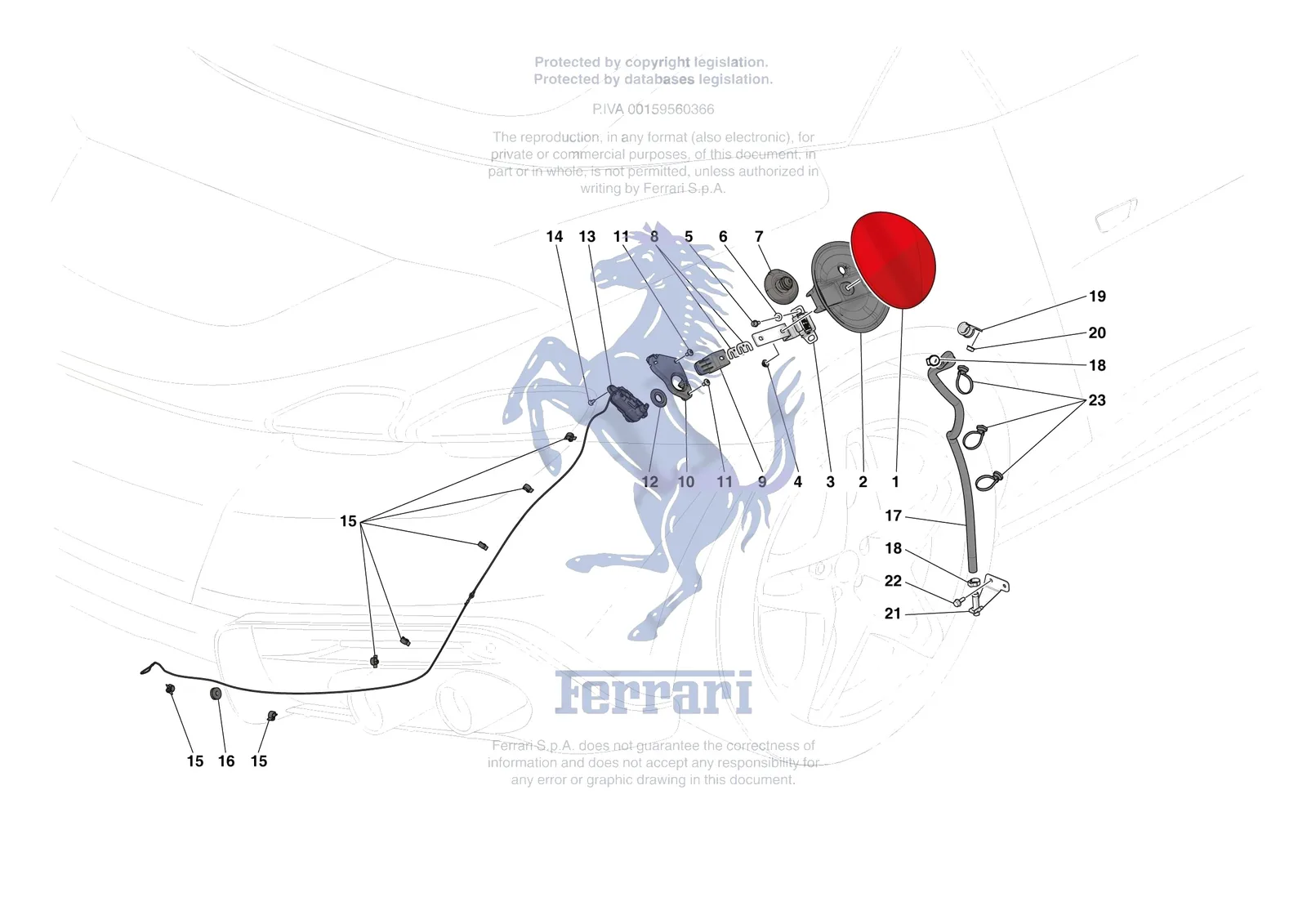

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari Roma Spider, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0168.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 900437 | Ferrari Rivestimento Internosport.Ca - 900437 | $23.86 | Special order, ships in 7-14 days | |
| 16286227 | Ferrari Screw - 16286227 | Superseded | Order 16286027 instead | |
| 1 | 985900432 | Ferrari Compl. Fuel Filler Flap - 985900432 | $443.17 | Special order, ships in 7-14 days |
| 2 | 833162 | Ferrari Rivestimento Internosport.Ca - 833162 | $39.37 | Special order, ships in 7-14 days |
| 3 | 900439 | Ferrari Cerniera Sportello Carburant - 900439 | $164.95 | Special order, ships in 7-14 days |
| 4 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 4 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 5 | 11566227 | Ferrari Screw 5x14 - 11566227 | $2.59 | Special order, ships in 7-14 days |
| 6 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 7 | 89290600 | Ferrari FUEL FILLER FLAP RUBBER BLOCK - 89290600 | $29.48 | Special order, ships in 7-14 days |
| 8 | 81619400 | Ferrari Spacer - 81619400 | $8.59 | Special order, ships in 7-14 days |
| 9 | 88945200 | Ferrari Striker for Actuator - 88945200 | $10.83 | Special order, ships in 7-14 days |
| 10 | 88945100 | Ferrari Supporto Attuatore Carburant - 88945100 | $31.99 | Special order, ships in 7-14 days |
| 11 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 12 | 89180500 | Ferrari Gasket - 89180500 | $15.28 | Special order, ships in 7-14 days |
| 13 | 754618 | Ferrari Compl. Fuel Filler Flap Actuator - 754618 | $157.55 | Special order, ships in 7-14 days |
| 14 | 15516204 | Ferrari Screw 4 x 12 - 15516204 | $0.59 | Available, ships in 3-6 days |
| 15 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 16 | 10396180 | Ferrari Rubber Ring - 10396180 | $5.65 | Available, ships in 3-6 days |
| 17 | 88944500 | Ferrari Tubo Drenaggio Carburante - 88944500 | $21.64 | Special order, ships in 7-14 days |
| 18 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 19 | 10450490 | Ferrari Bracket P Clip16mm - 10450490 | $1.04 | Available, ships in 3-6 days |
| 20 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 21 | 900429 | Ferrari Tubo Rigido Scarico Benz.Cpl - 900429 | $73.85 | Special order, ships in 7-14 days |
| 22 | 16286027 | Ferrari Screw 6x16 - 16286027 | $1.02 | Available, ships in 3-6 days |
| 23 | 786155 | Ferrari Clip - 786155 | $1.80 | Special order, ships in 7-14 days |
