Ferrari Roma Spider — [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0170)

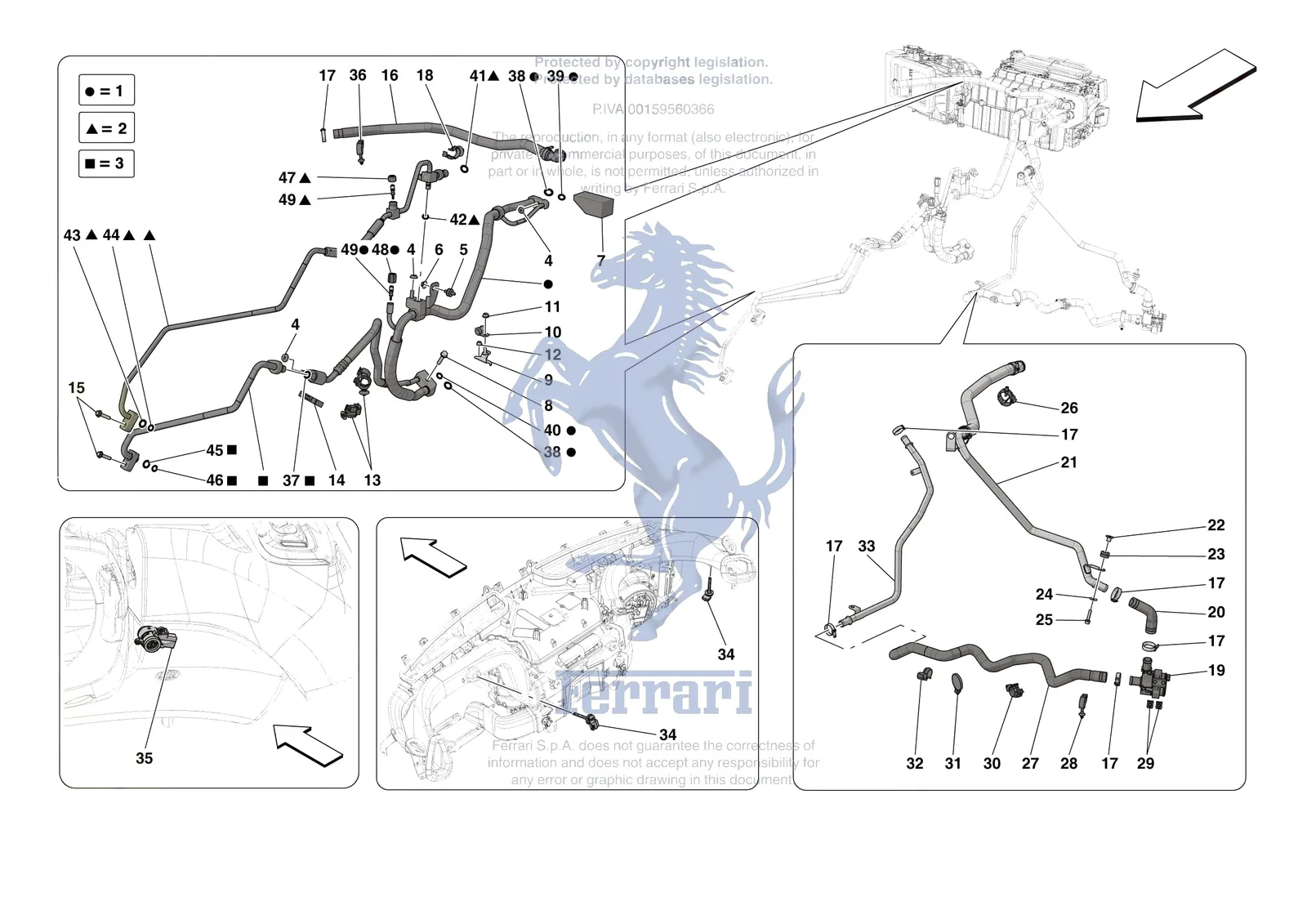

Exploded view of the [vehicle trim] - e.57.02 - ac system - air conditioner system on the Ferrari Roma Spider, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Roma Spider [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
13442484Ferrari Gasket - 13442484SupersededOrder 11342484 instead
14066017Ferrari Nut - 14066017$5.65Special order, ships in 7-14 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
785613Ferrari Tubazione Ihx - 785613SupersededOrder 808101 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1808101Ferrari IHX Pipe - 808101$1,551.20Special order, ships in 7-14 days
2796455Ferrari Tubo Da Condensatore A Ihx - 796455$590.91Special order, ships in 7-14 days
3796453Ferrari Pipe from Compressor Disconnect - 796453$216.66Special order, ships in 7-14 days
414066021Ferrari Nut - 14066021$5.86Special order, ships in 7-14 days
5225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
614039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
615896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
7978909Ferrari Hvac Insulation - 978909$6.61Special order, ships in 7-14 days
813839624Ferrari Screw - 13839624$7.63Special order, ships in 7-14 days
9807281Ferrari Bracket - A/C Pipe from Condensor to IHX - 807281$36.92Special order, ships in 7-14 days
1010441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
1114040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
1214040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
13267177Ferrari Clip D.20-21.5 - 267177$2.01Special order, ships in 7-14 days
14294693Ferrari Clip - 294693$8.05Special order, ships in 7-14 days
1513837017Ferrari Screw 6X30 - 13837017$7.19Special order, ships in 7-14 days
16342226Ferrari Return Pipe From Ac Unit To - 342226$162.48Special order, ships in 7-14 days
17262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
18340010Ferrari Clip - 340010$3.03Special order, ships in 7-14 days
19291349Ferrari Idle Water Recirculation Pump - 291349$5,509.80Special order, ships in 7-14 days
20766928Ferrari Manicotto Uscita Pompa Ricir - 766928$51.67Special order, ships in 7-14 days
21943075Ferrari Tubo Cpl Ingresso Hvac - 943075$738.64Special order, ships in 7-14 days
22149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
23103549Ferrari Grommet - 103549$2.80In stock
2412643724Ferrari/Maserati Washer - 12643724$0.20In stock
25231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
26310150Ferrari Clip - 310150$3.03Special order, ships in 7-14 days
27917083Ferrari Manicotto Ingresso Pompa - 917083$198.24Special order, ships in 7-14 days
28813123Ferrari Clip - 813123$6.98Special order, ships in 7-14 days
29291645Ferrari Clip - 291645$8.07Special order, ships in 7-14 days
30790253Ferrari Clip - 790253$4.35Special order, ships in 7-14 days
31217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
32794586Ferrari Clip - 794586$1.36Special order, ships in 7-14 days
33813982Ferrari Tubo Rigido Da Motore A Pomp - 813982$295.43Special order, ships in 7-14 days
3488712600Ferrari Temperature Sensor - 88712600$34.94Special order, ships in 7-14 days
3589274100Ferrari Sensore Temperatura - 89274100$157.34Special order, ships in 7-14 days
36248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
3711084284Ferrari Gasket - 11084284$10.46Special order, ships in 7-14 days
3811342784Ferrari Washer 3/4" - 11342784$19.42Available, ships in 3-6 days
3911342484Ferrari Gasket - 11342484$10.46Special order, ships in 7-14 days
4011342584Ferrari Washer 1/2" - 11342584$19.42Available, ships in 3-6 days
4114452884Ferrari Gasket - 14452884$34.94Special order, ships in 7-14 days
4211084084Ferrari Gasket - 11084084$10.46Special order, ships in 7-14 days
4314450483Ferrari Gasket - 14450483$10.46Special order, ships in 7-14 days
4410318884Ferrari Gasket - 10318884$10.46Special order, ships in 7-14 days
4510319184Ferrari Gasket - 10319184$10.48Available, ships in 3-6 days
4614450683Ferrari Gasket - 14450683$10.48Special order, ships in 7-14 days
4755029869Ferrari LP Plug - 55029869$21.60Special order, ships in 7-14 days
4855029871Ferrari High Pressure Cap - 55029871$23.57Special order, ships in 7-14 days
4955029938Ferrari Valve Mechanism - 55029938$34.40Special order, ships in 7-14 days
