Ferrari Roma Spider — [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS (diagram 0184)

Exploded view of the [electrical system] - f.9 - lighting systems on the Ferrari Roma Spider, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

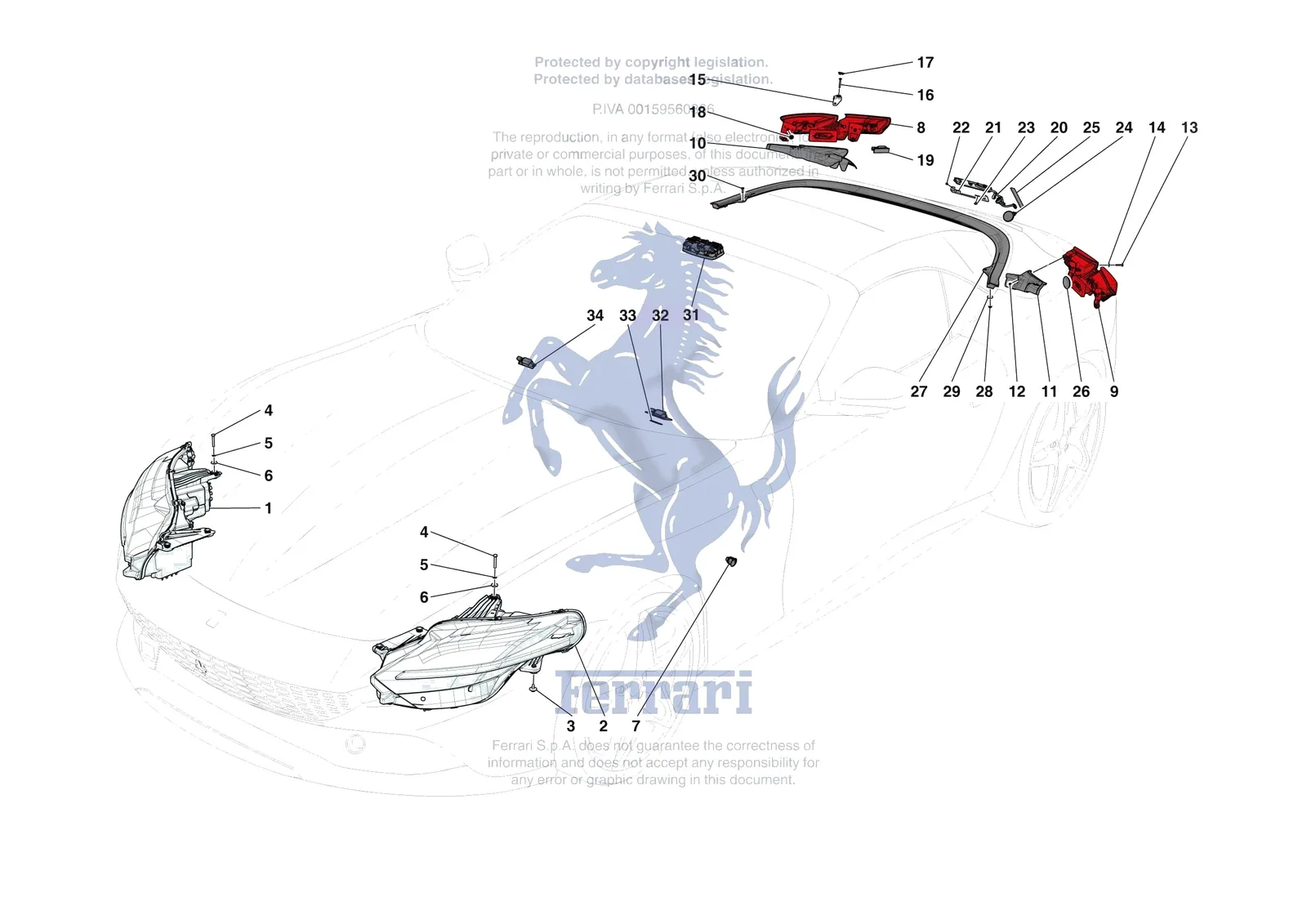

Ferrari Roma Spider [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
10903221Ferrari Bolt - 10903221SupersededOrder 10903224 instead
748857Ferrari Luggage Compartment Light - 748857SupersededOrder 974896 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12647729Ferrari Washer 6.45-21X - 12647729$0.13Special order, ships in 7-14 days
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1934862Ferrari Proiettore Dx Base - 934862$6,217.90Special order, ships in 7-14 days
1918251Ferrari RH Headlamp - 918251$6,520.15Special order, ships in 7-14 days
1940765Ferrari RH Headlamp - 940765$6,520.15Special order, ships in 7-14 days
1940767Ferrari RH Headlamp - 940767$6,217.90Special order, ships in 7-14 days
1940769Ferrari RH Headlamp - 940769$6,520.15Special order, ships in 7-14 days
1904370Ferrari RH Headlamp - LHD Adaptive Headlamps - 904370$6,520.15Special order, ships in 7-14 days
2918250Ferrari LH Headlamp - 918250$6,520.15Special order, ships in 7-14 days
2940760Ferrari LH Headlamp - 940760$6,520.15Special order, ships in 7-14 days
2940766Ferrari LH Headlamp - 940766$6,217.90Special order, ships in 7-14 days
2940768Ferrari LH Headlamp - 940768$6,520.15Special order, ships in 7-14 days
2904368Ferrari LH Headlamp - LHD Adaptive Headlamps - 904368$6,520.15Special order, ships in 7-14 days
2934859Ferrari Proiettore Sx Base - 934859$6,217.90Special order, ships in 7-14 days
381290900Ferrari Screw With Double Washer - 81290900$1.42In stock
410903224Ferrari Screw M6 x 40 - 10903224$0.50Available, ships in 3-6 days
512601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
612646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
7317211Ferrari Lateral Turn Indicator - 317211$159.79Special order, ships in 7-14 days
8917269Ferrari RH Tail Light - 917269$1,422.61Special order, ships in 7-14 days
8919258Ferrari RH Tail Light - 919258$1,466.38Special order, ships in 7-14 days
9917268Ferrari Fanale Sx Ava - 917268$1,422.61Special order, ships in 7-14 days
9919257Ferrari LH Tail Light - 919257$1,466.38Special order, ships in 7-14 days
10854370Ferrari RH Taillight Surround - 854370$93.53Special order, ships in 7-14 days
11854371Ferrari LH Taillight Surround - 854371$93.53Special order, ships in 7-14 days
12986200Ferrari Torx Screw - 986200$0.44Special order, ships in 7-14 days
1385834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
1413577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
15854322Ferrari Compl. LH Light Unit Bezel F - 854322$93.53Special order, ships in 7-14 days
15854226Ferrari Compl. RH Light Unit Bezel F - 854226$93.53Special order, ships in 7-14 days
1688831000Ferrari Screw M5 x 40 - 88831000$1.05Special order, ships in 7-14 days
17985968Ferrari Tappo Mostrina Baule Dx - 985968$14.99Special order, ships in 7-14 days
17985967Ferrari Tappo Mostrina Baule Sx - 985967$14.99Special order, ships in 7-14 days
1814039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
19974896Ferrari Luggage Compartment Light - 974896$98.32Special order, ships in 7-14 days
20853253Ferrari Compl. Third Brake Light - 853253$547.15Special order, ships in 7-14 days
21853175Ferrari Third Brake Light Fastener B - 853175$64.00Special order, ships in 7-14 days
2215687204Ferrari Screw 3.5x13 - 15687204$0.90Available, ships in 3-6 days
2263343400Ferrari Screw 4x15 - 63343400$5.02Available, ships in 3-6 days
2215688801Ferrari Screw M3.5 x 13 - 15688801SupersededOrder 63343400 instead
23948328Ferrari Screw - 948328$1.48Special order, ships in 7-14 days
24217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
25179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
26276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days
27853168Ferrari Compl. Third Brake Light Bezel - 853168$4,314.80Special order, ships in 7-14 days
2813046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
2813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
2912647727Ferrari Washer 6X21 - 12647727$0.12Special order, ships in 7-14 days
3085692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
31744262Ferrari Plafoniera Padiglione - 744262$1,770.31Special order, ships in 7-14 days
32318013Ferrari Light Unit - 318013$61.45Special order, ships in 7-14 days
33958959Ferrari Piastra Plafoniera Wirelessc - 958959$4.91Special order, ships in 7-14 days
34911486Ferrari Luggage Compartment Light - 911486SupersededOrder 974896 instead
