Ferrari Roma — [ENGINE] - B.4 - CRANKSHAFT (diagram 0007)

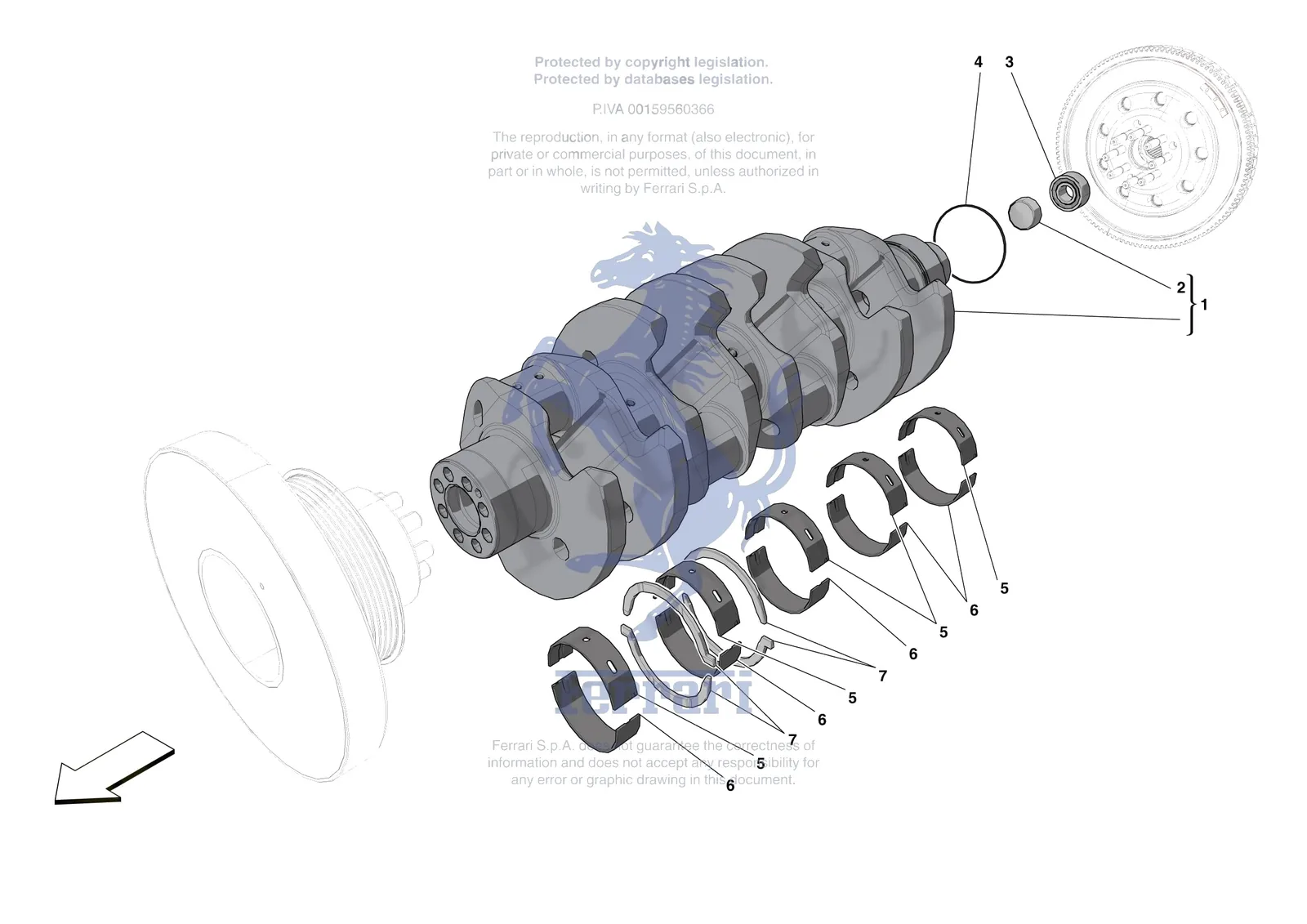

Exploded view of the [engine] - b.4 - crankshaft on the Ferrari Roma, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.4 - CRANKSHAFT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0007.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 296939 | Ferrari Crankshaft - 296939 | $3,474.52 | Special order, ships in 7-14 days | |
| 315651 | Ferrari Crankshaft - 315651 | Price on request | Contact us for price and availability | |
| 1 | 312838 | Ferrari Crankshaft - 312838 | $1,905.95 | Special order, ships in 7-14 days |
| 2 | 176396 | Ferrari Threaded Plug D. 28 x 1.5 - 176396 | $10.42 | Available, ships in 3-6 days |
| 3 | 103877 | Ferrari/Maserati Clutch Pilot Bearing - 103877 | $32.95 | In stock |
| 4 | 259917 | Ferrari O-Ring - 259917 | $5.14 | Special order, ships in 7-14 days |
| 5 | 271406 | Ferrari Upper Half Main Bearing - 271406 | $64.00 | Available, ships in 3-6 days |
| 5 | 271408 | Ferrari Upper Half Main Bearing - 271408 | $64.00 | Special order, ships in 7-14 days |
| 5 | 271409 | Ferrari Upper Half Main Bearing - 271409 | $59.07 | Available, ships in 3-6 days |
| 5 | 309242 | Ferrari Upper Half Main Bearing - 309242 | $44.29 | Special order, ships in 7-14 days |
| 5 | 309243 | Ferrari Upper Half Main Bearing - 309243 | $44.29 | Available, ships in 3-6 days |
| 6 | 271412 | Ferrari Lower Half Main Bearing - 271412 | $61.52 | Available, ships in 3-6 days |
| 6 | 271413 | Ferrari Lower Half Main Bearing - 271413 | $61.52 | Special order, ships in 7-14 days |
| 6 | 271414 | Ferrari Lower Half Main Bearing - 271414 | $56.60 | Available, ships in 3-6 days |
| 6 | 309244 | Ferrari Lower Half Main Bearing - 309244 | $41.82 | Special order, ships in 7-14 days |
| 6 | 309245 | Ferrari Lower Half Main Bearing - 309245 | $44.29 | Special order, ships in 7-14 days |
| 7 | 271589 | Ferrari Crankshaft Bearing Shim - 271589 | $24.07 | Available, ships in 3-6 days |
