Ferrari Roma — [ENGINE] - B.10 - ENGINE OIL SUMP (diagram 0015)

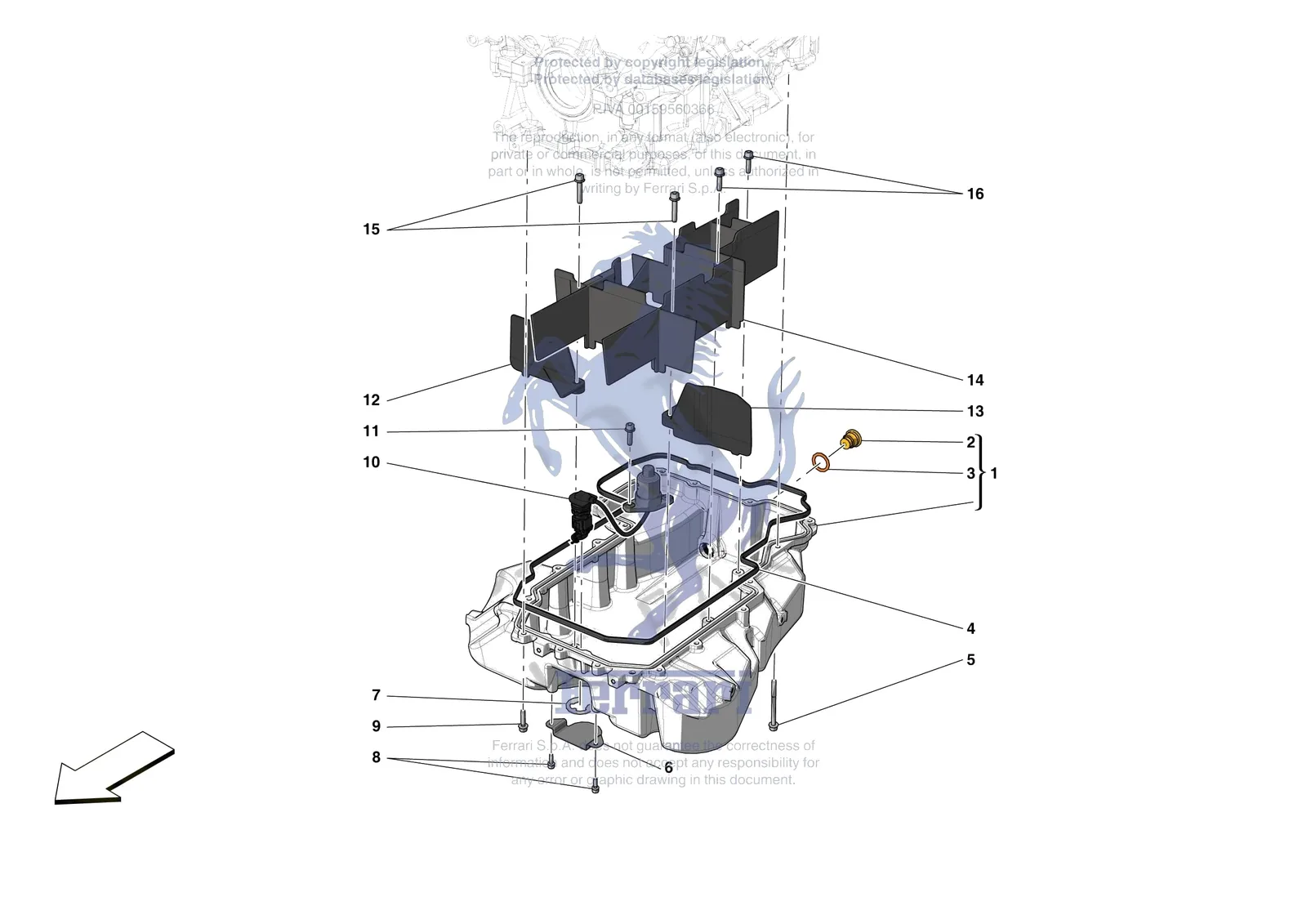

Exploded view of the [engine] - b.10 - engine oil sump on the Ferrari Roma, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.10 - ENGINE OIL SUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0015.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 306807 | Ferrari Oil Sump - 306807 | $1,136.83 | Special order, ships in 7-14 days | |
| 1 | 785239 | Ferrari Oil Sump - 785239 | $1,195.54 | Special order, ships in 7-14 days |
| 2 | 104280 | Ferrari/Maserati Drain Plug Magnetic - 104280 | $12.75 | In stock |
| 3 | 10261860 | Ferrari Copper Washer - 10261860 | $1.42 | In stock |
| 4 | 782978 | Ferrari Oil Sump Gasket - 782978 | $118.16 | Special order, ships in 7-14 days |
| 5 | 231626 | Ferrari Screw M6 x 70 - 231626 | $1.61 | Available, ships in 3-6 days |
| 6 | 304668 | Ferrari Sensor Protective Shield - 304668 | $23.86 | Special order, ships in 7-14 days |
| 7 | 16165276 | Ferrari/Maserati Circlip Snap Ring - 16165276 | $2.00 | In stock |
| 8 | 299916 | Ferrari Screw M5 x 16 - 299916 | $6.10 | Available, ships in 3-6 days |
| 9 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 10 | 230171 | Ferrari/Maserati Oil Level Sensor - 230171 | $105.29 | In stock |
| 11 | 282396 | Ferrari Screw 6x22 - 282396 | $1.23 | Available, ships in 3-6 days |
| 12 | 303457 | Ferrari RH Oil Sump Baffle Fin - 303457 | $13.76 | Special order, ships in 7-14 days |
| 13 | 303456 | Ferrari LH Oil Sump Baffle Fin - 303456 | $14.64 | Special order, ships in 7-14 days |
| 14 | 311171 | Ferrari Oil Sump Baffle - 311171 | $103.38 | Special order, ships in 7-14 days |
| 15 | 282398 | Ferrari Screw 6x30 - 282398 | $1.04 | Available, ships in 3-6 days |
