Ferrari Roma — [ENGINE] - B.12 - ENGINE OIL PUMP (diagram 0017)

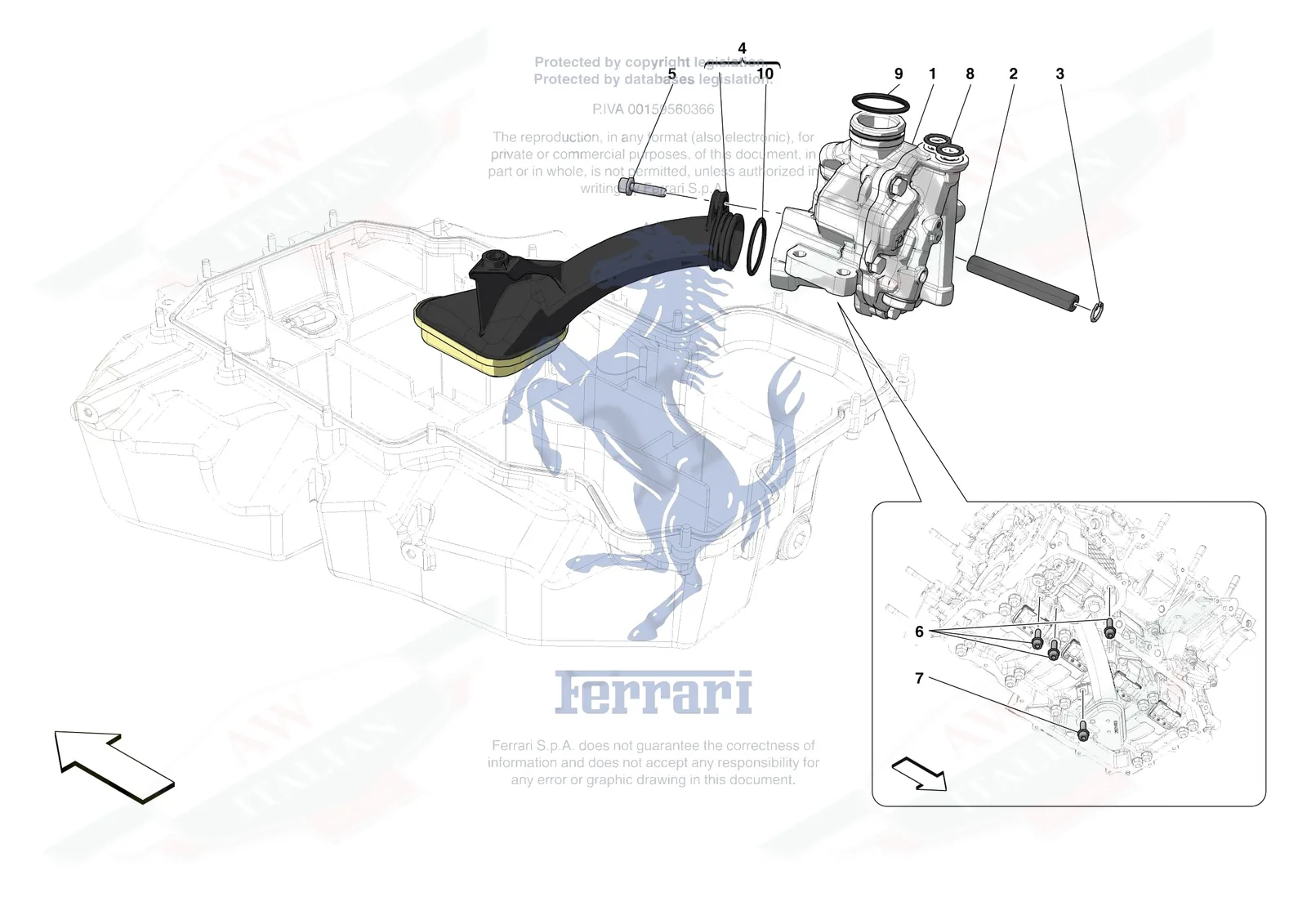

Exploded view of the [engine] - b.12 - engine oil pump on the Ferrari Roma, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.12 - ENGINE OIL PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0017.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 297854 | Ferrari Oil Pump - 297854 | $1,958.19 | Special order, ships in 7-14 days | |
| 1 | 749795 | Ferrari Oil Pump - 749795 | $2,204.29 | Special order, ships in 7-14 days |
| 1 | 807411 | Ferrari Oil Pump - 807411 | $1,969.79 | Special order, ships in 7-14 days |
| 2 | 288129 | Ferrari Oil Pump Drive Rod - 288129 | $39.37 | Special order, ships in 7-14 days |
| 3 | 11057076 | Ferrari Seeger Ring - 11057076 | $0.19 | Special order, ships in 7-14 days |
| 4 | 292493 | Ferrari Oil Pump Pickup - 292493 | $125.54 | Special order, ships in 7-14 days |
| 5 | 282397 | Ferrari Screw 6x25 - 282397 | $1.02 | Available, ships in 3-6 days |
| 6 | 282409 | Ferrari Screw M8 x 25 - 282409 | $1.50 | Available, ships in 3-6 days |
| 7 | 301493 | Ferrari Screw - 301493 | $1.04 | Special order, ships in 7-14 days |
| 8 | 804097 | Ferrari O-Ring - 804097 | $24.05 | Special order, ships in 7-14 days |
| 9 | 804096 | Ferrari O-Ring - 804096 | $15.74 | Special order, ships in 7-14 days |
| 10 | 271463 | Ferrari O-Ring 2.62x3 - 271463 | $3.03 | Available, ships in 3-6 days |
