Ferrari Roma — [ENGINE] - B.17 - INJECTOR PIPES (diagram 0022)

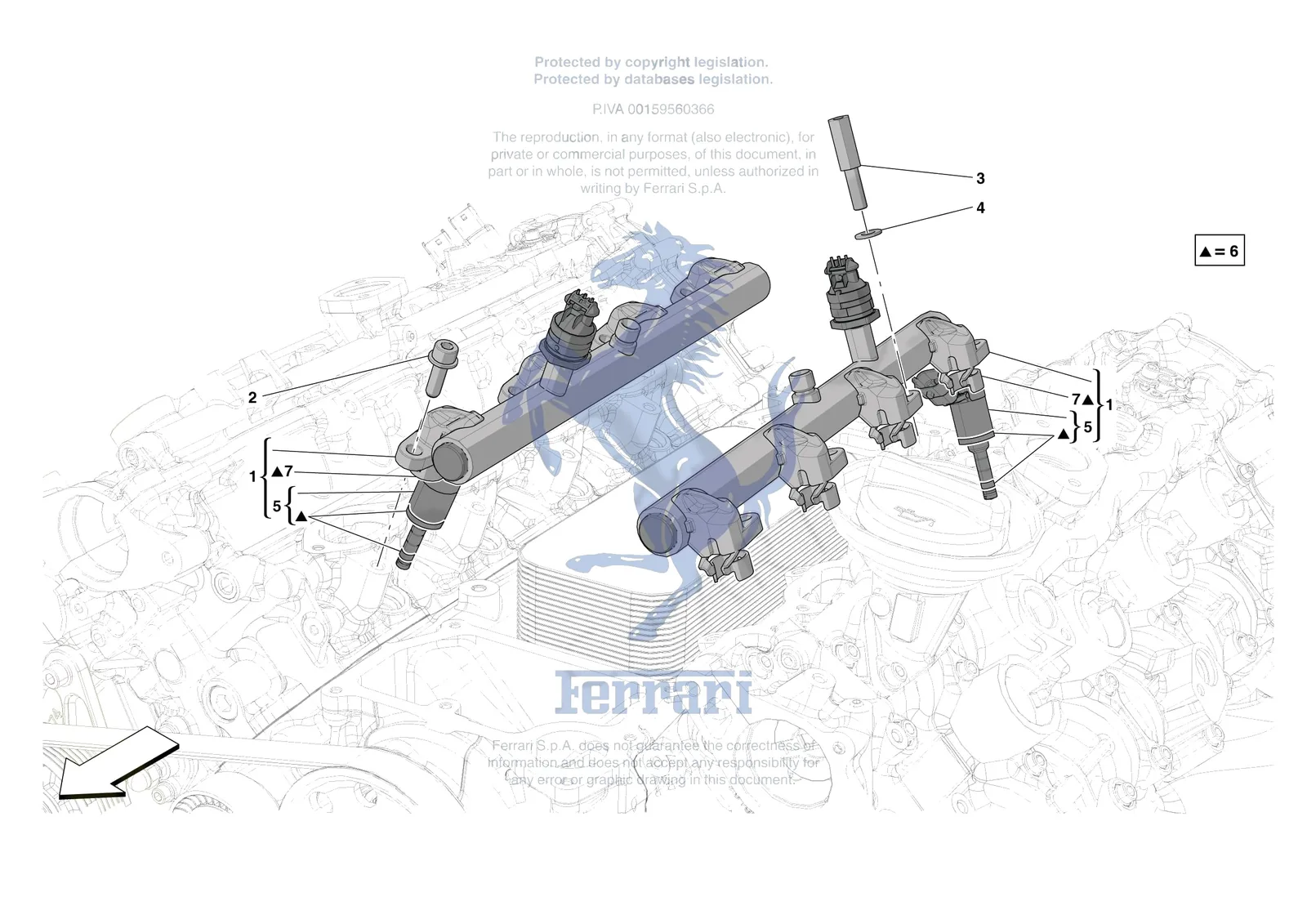

Exploded view of the [engine] - b.17 - injector pipes on the Ferrari Roma, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.17 - INJECTOR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0022.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 293409 | Ferrari Stud Bolt - 293409 | $29.34 | Special order, ships in 7-14 days | |
| 1 | 334920 | Ferrari Fuel Pipe Compl. With Inject - 334920 | Superseded | Order 882826 instead |
| 1 | 882826 | Ferrari Fuel Pipe Compl. With Injector - 882826 | $2,971.11 | Special order, ships in 7-14 days |
| 2 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 3 | 294005 | Ferrari Stud Bolt - 294005 | $23.86 | Special order, ships in 7-14 days |
| 4 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 5 | 334907 | Ferrari Electro-Iniectors - 334907 | $190.38 | Special order, ships in 7-14 days |
| 6 | 70004988 | Ferrari Seal Kit Ferrari F149M/488 - 70004988 | $81.23 | Special order, ships in 7-14 days |
