Ferrari Roma — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0057)

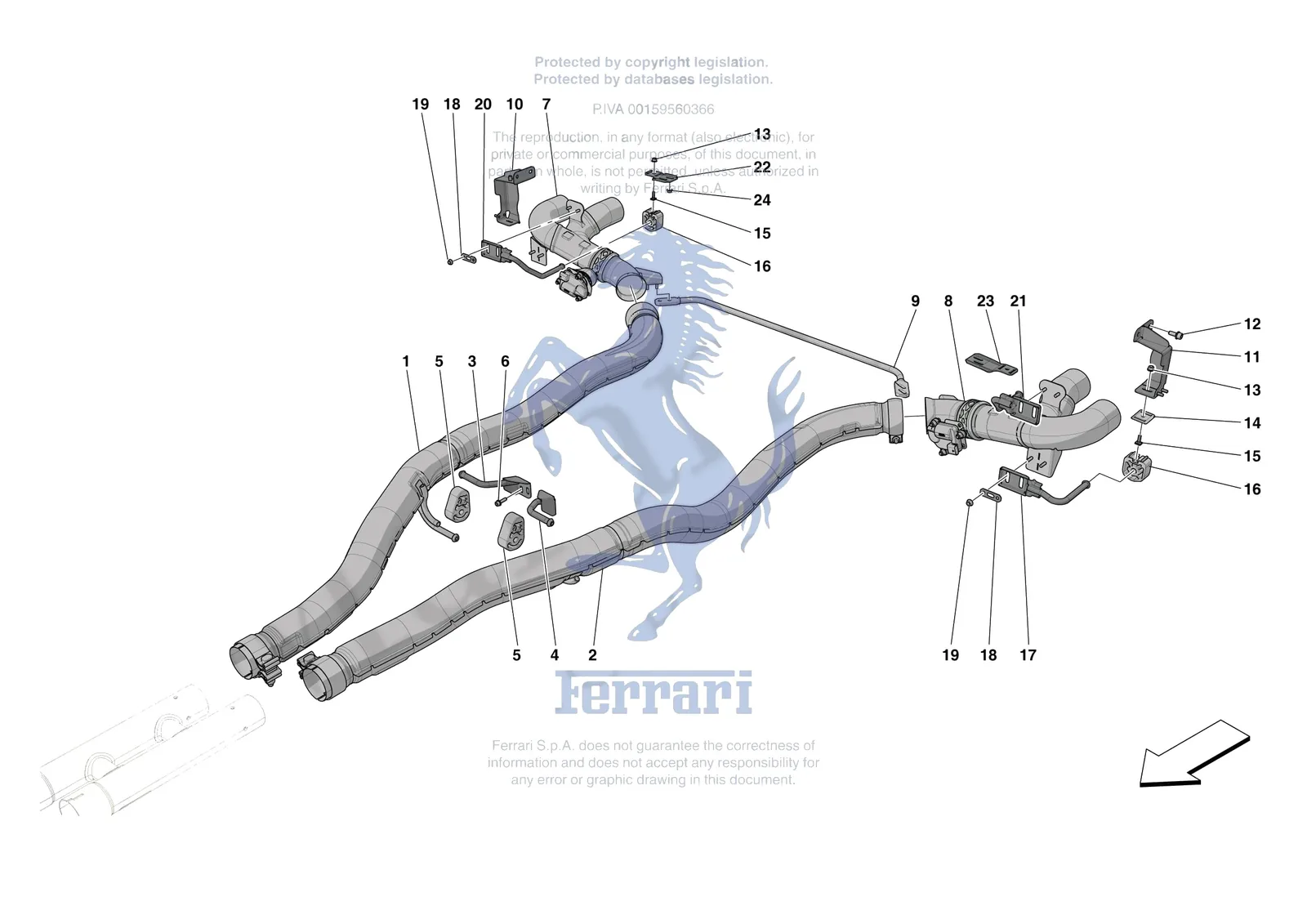

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari Roma, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0057.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 760985 | Ferrari Compl. RH Rear Extension - 760985 | $1,159.97 | Special order, ships in 7-14 days |
| 2 | 760987 | Ferrari Compl. LH Rear Extension - 760987 | $1,159.97 | Special order, ships in 7-14 days |
| 3 | 749043 | Ferrari RH Extension Fastener Bracket - 749043 | $83.68 | Special order, ships in 7-14 days |
| 4 | 749044 | Ferrari LH Extension Fastener Bracket - 749044 | $83.68 | Special order, ships in 7-14 days |
| 5 | 307258 | Ferrari Plug - 307258 | $41.76 | Special order, ships in 7-14 days |
| 6 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 7 | 901044 | Ferrari Terminale Di Scarico Cpl Dx - 901044 | $2,826.50 | Special order, ships in 7-14 days |
| 8 | 901046 | Ferrari Terminale Di Scarico Cpl Sx - 901046 | $2,826.50 | Special order, ships in 7-14 days |
| 9 | 921135 | Ferrari Traversa Silenziat. Posterio - 921135 | $184.65 | Special order, ships in 7-14 days |
| 10 | 899271 | Ferrari RH Lateral Silencer Fastener Bracket - 899271 | $103.38 | Special order, ships in 7-14 days |
| 11 | 861660 | Ferrari LH Lateral Silencer Fastener Bracket - 861660 | $103.38 | Special order, ships in 7-14 days |
| 12 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 13 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 14 | 240598 | Ferrari Bracket Plate - 240598 | $21.60 | Available, ships in 3-6 days |
| 15 | 250222 | Ferrari Screw Squared Head 6x18.5 - 250222 | $5.44 | Special order, ships in 7-14 days |
| 16 | 289529 | Ferrari Rubber Exhaust Mount - 289529 | $74.30 | Available, ships in 3-6 days |
| 17 | 982204 | Ferrari Lateral Bracket on Terminal Tailpipe - 982204 | $142.79 | Special order, ships in 7-14 days |
| 18 | 321116 | Ferrari Plate - 321116 | $9.07 | Special order, ships in 7-14 days |
| 19 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 20 | 872907 | Ferrari RH Rear Bracket on Terminal - 872907 | $142.79 | Special order, ships in 7-14 days |
| 21 | 872908 | Ferrari LH Rear Bracket On Terminal - 872908 | $142.79 | Special order, ships in 7-14 days |
| 22 | 828868 | Ferrari Silencer Mounting RH Rear Bracket - 828868 | $39.37 | Special order, ships in 7-14 days |
| 23 | 828869 | Ferrari Silencer Mounting LH Rear Bracket - 828869 | $39.37 | Special order, ships in 7-14 days |
| 24 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 24 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
