Ferrari Roma — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

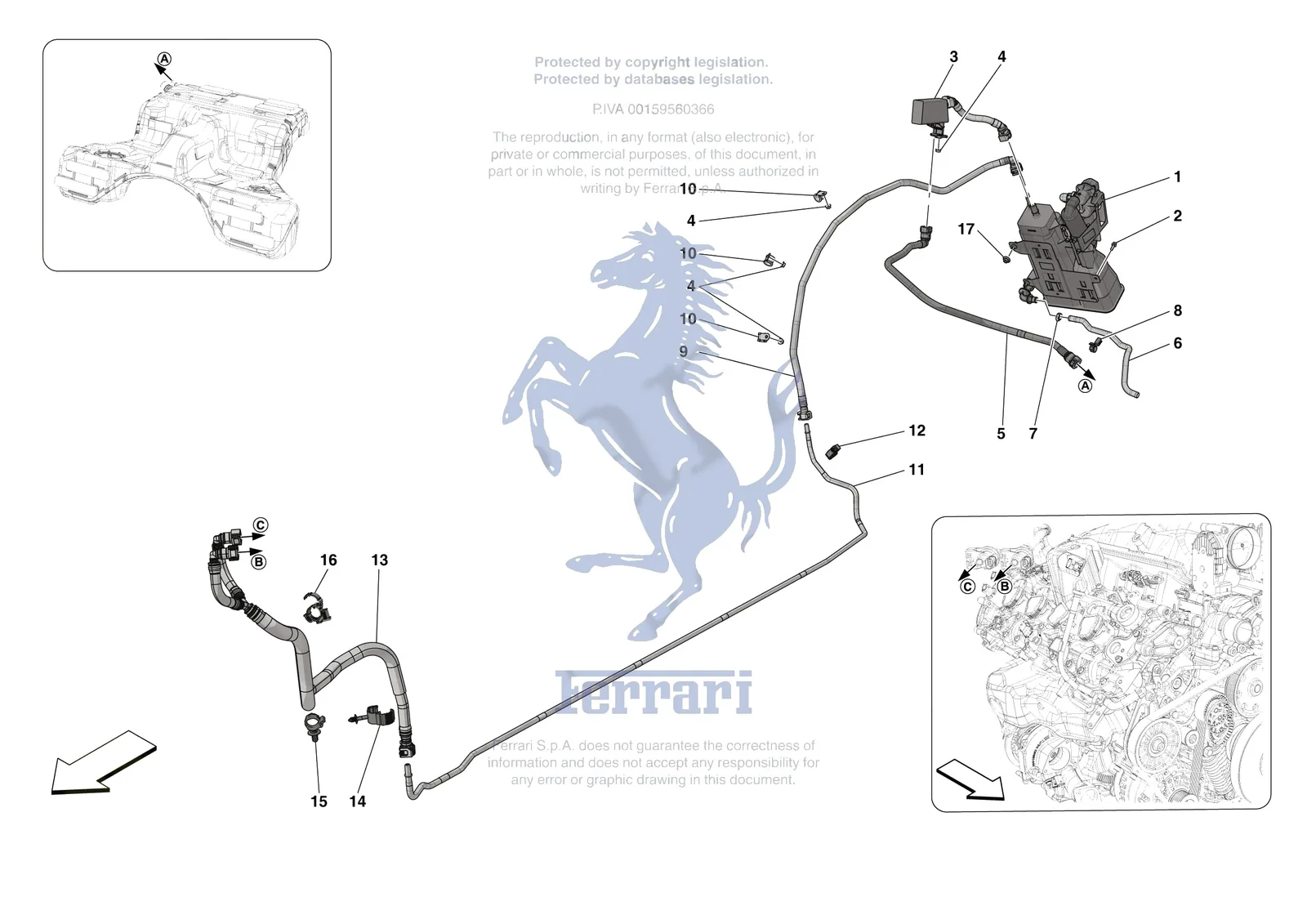

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari Roma, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0062.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 338263 | Ferrari Clip - 338263 | Superseded | Order 332428 instead | |
| 1 | 895460 | Ferrari Complete Vapour Filter - 895460 | $1,707.14 | Special order, ships in 7-14 days |
| 1 | 909565 | Ferrari Filtro Vapori Cpl - 909565 | Superseded | Order 895460 instead |
| 2 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 3 | 874756 | Ferrari Sep. Vapori Esterno Cpl Di T - 874756 | $344.69 | Special order, ships in 7-14 days |
| 4 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 5 | 927674 | Ferrari Tubo Serbatoio - Sep. Vap - 927674 | $221.59 | Special order, ships in 7-14 days |
| 6 | 863032 | Ferrari Tubo Aspirazione Filtro Aria - 863032 | $103.38 | Special order, ships in 7-14 days |
| 7 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 8 | 878187 | Ferrari Clip D14 for Pin D5 - 878187 | $6.98 | Special order, ships in 7-14 days |
| 9 | 924576 | Ferrari Tubo Da Canister Sez. Pas - 924576 | $241.27 | Special order, ships in 7-14 days |
| 10 | 10441590 | Ferrari P Clip Bracket With Sheath 16mm - 10441590 | $0.98 | Available, ships in 3-6 days |
| 11 | 340870 | Ferrari Tubo Da Canister Sez.Sott - 340870 | $73.85 | Special order, ships in 7-14 days |
| 12 | 298580 | Ferrari Clip - 298580 | $7.19 | Special order, ships in 7-14 days |
| 13 | 342970 | Ferrari Tubo Antievaporaz. Sez.Para - 342970 | $295.43 | Special order, ships in 7-14 days |
| 14 | 794142 | Ferrari Clip - 794142 | $7.63 | Special order, ships in 7-14 days |
| 15 | 239094 | Ferrari Clip - 239094 | $2.59 | Special order, ships in 7-14 days |
| 16 | 332428 | Ferrari Clip - 332428 | $2.61 | Special order, ships in 7-14 days |
| 17 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 17 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
