Ferrari Roma — [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM (diagram 0074)

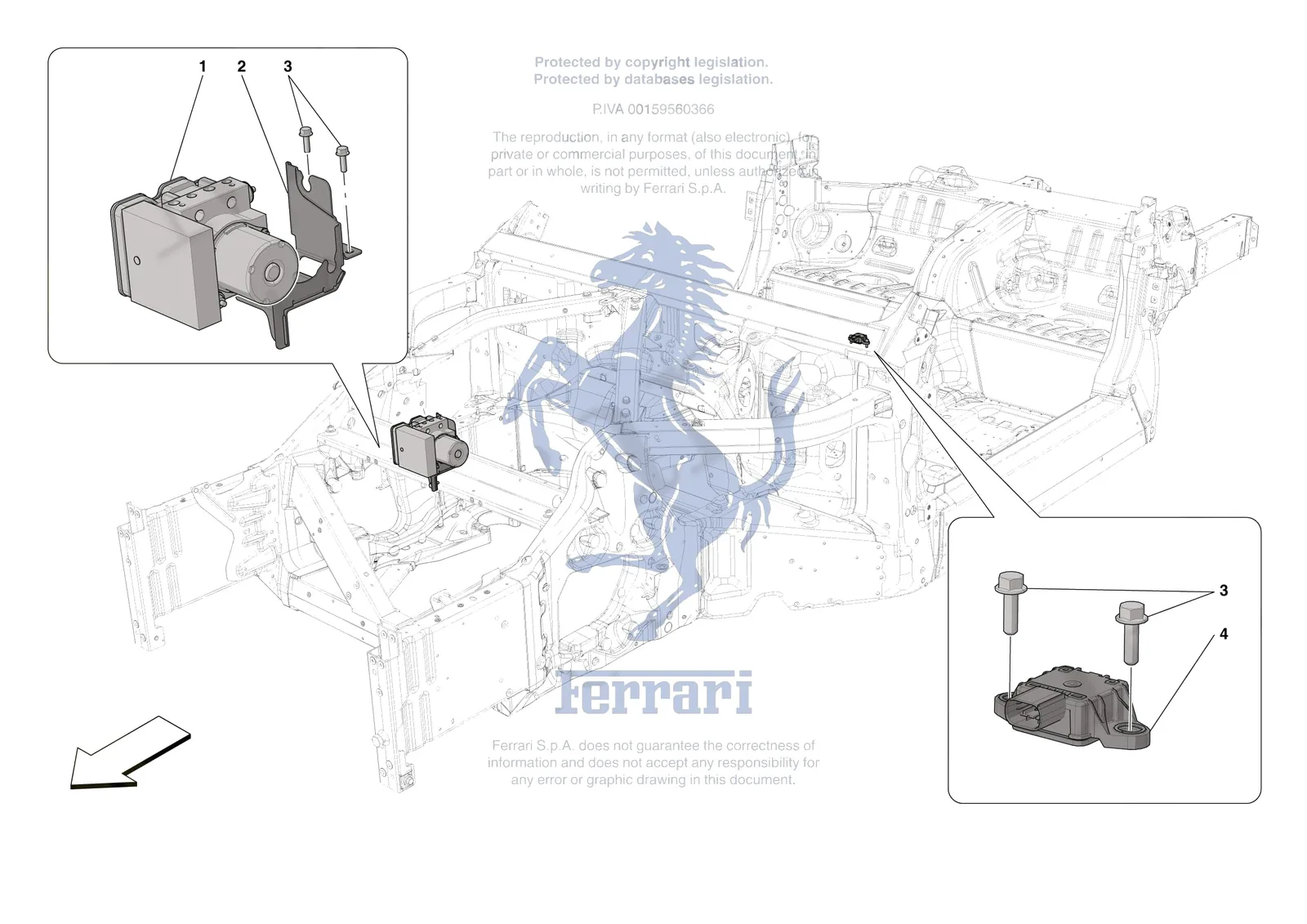

Exploded view of the [mechanical system] - d.24 - abs asr system on the Ferrari Roma, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0074.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 878494 | Ferrari Hydraulic Unit - 878494 | $5,168.39 | Special order, ships in 7-14 days |
| 2 | 334051 | Ferrari Bracket - ABS/ASR Hydraulic Unit - 334051 | $118.16 | Special order, ships in 7-14 days |
| 3 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 4 | 307688 | Ferrari Yaw Sensor - 307688 | $437.10 | Special order, ships in 7-14 days |
