Ferrari Roma — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

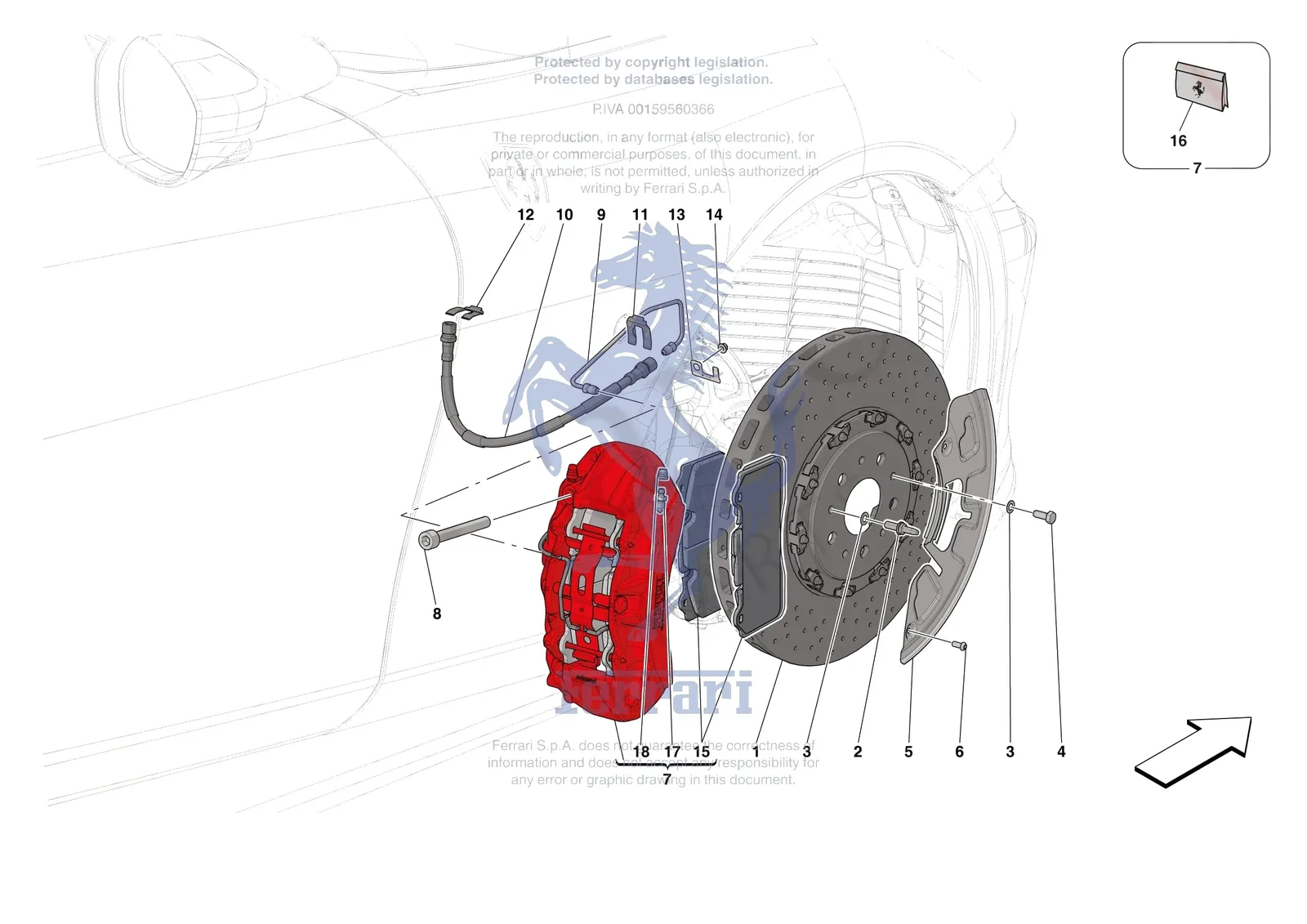

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari Roma, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0077.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 336085 | Ferrari Brake Disc - 336085 | $9,326.88 | Available, ships in 3-6 days |
| 2 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 2 | 104370 | Ferrari Wheel Alignment Stud - 104370 | $16.39 | In stock |
| 3 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 5 | 321235 | Ferrari Front LH Disc Shield - 321235 | $81.11 | Special order, ships in 7-14 days |
| 5 | 321236 | Ferrari Front RH Disc Shield - 321236 | $81.11 | Special order, ships in 7-14 days |
| 6 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 7 | 297300 | Ferrari LH Front Caliper With Pads - 297300 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297302 | Ferrari LH Front Caliper With Pads - 297302 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297304 | Ferrari LH Front Caliper With Pads - 297304 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297306 | Ferrari LH Front Caliper With Pads - 297306 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297308 | Ferrari LH Front Caliper With Pads - 297308 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297310 | Ferrari LH Front Caliper With Pads - 297310 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297312 | Ferrari LH Front Caliper With Pads - 297312 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 302755 | Ferrari LH Front Caliper With Pads - 302755 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 302757 | Ferrari LH Front Caliper With Pads - 302757 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 862956 | Ferrari LH FRONT CALIPER WITH PADS - 862956 | Price on request | Contact us for price and availability |
| 7 | 862972 | Ferrari LH FRONT CALIPER WITH PADS - 862972 | Price on request | Contact us for price and availability |
| 7 | 862984 | Ferrari LH FRONT CALIPER WITH PADS - 862984 | Price on request | Contact us for price and availability |
| 7 | 862990 | Ferrari LH FRONT CALIPER WITH PADS - 862990 | Price on request | Contact us for price and availability |
| 7 | 863020 | Ferrari LH FRONT CALIPER WITH PADS - 863020 | Price on request | Contact us for price and availability |
| 7 | 863076 | Ferrari LH FRONT CALIPER WITH PADS - 863076 | Price on request | Contact us for price and availability |
| 7 | 863136 | Ferrari LH FRONT CALIPER WITH PADS - 863136 | Price on request | Contact us for price and availability |
| 7 | 863142 | Ferrari LH FRONT CALIPER WITH PADS - 863142 | Price on request | Contact us for price and availability |
| 7 | 863147 | Ferrari LH FRONT CALIPER WITH PADS - 863147 | Price on request | Contact us for price and availability |
| 7 | 297301 | Ferrari RH Front Caliper With Pads - 297301 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297303 | Ferrari RH Front Caliper With Pads - 297303 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297305 | Ferrari RH Front Caliper With Pads - 297305 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297307 | Ferrari RH Front Caliper With Pads - 297307 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297309 | Ferrari RH Front Caliper With Pads - 297309 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297311 | Ferrari RH Front Caliper With Pads - 297311 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 297313 | Ferrari RH Front Caliper With Pads - 297313 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 302756 | Ferrari RH Front Caliper With Pads - 302756 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 302758 | Ferrari RH Front Caliper With Pads - 302758 | $5,165.25 | Special order, ships in 7-14 days |
| 7 | 862958 | Ferrari RH FRONT CALIPER WITH PADS - 862958 | Price on request | Contact us for price and availability |
| 7 | 862982 | Ferrari RH FRONT CALIPER WITH PADS - 862982 | Price on request | Contact us for price and availability |
| 7 | 862988 | Ferrari RH FRONT CALIPER WITH PADS - 862988 | Price on request | Contact us for price and availability |
| 7 | 862994 | Ferrari RH Front Caliper With Pads - 862994 | $6,094.93 | Special order, ships in 7-14 days |
| 7 | 863064 | Ferrari RH FRONT CALIPER WITH PADS - 863064 | Price on request | Contact us for price and availability |
| 7 | 863098 | Ferrari RH FRONT CALIPER WITH PADS - 863098 | Price on request | Contact us for price and availability |
| 7 | 863138 | Ferrari RH FRONT CALIPER WITH PADS - 863138 | Price on request | Contact us for price and availability |
| 7 | 863145 | Ferrari RH FRONT CALIPER WITH PADS - 863145 | Price on request | Contact us for price and availability |
| 7 | 863149 | Ferrari RH FRONT CALIPER WITH PADS - 863149 | Price on request | Contact us for price and availability |
| 8 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 9 | 274701 | Ferrari Brake Pipe From Caliper To LH - 274701 | $98.46 | Special order, ships in 7-14 days |
| 9 | 274703 | Ferrari Brake Pipe From Caliper To RH Flexible Hose - 274703 | $98.46 | Special order, ships in 7-14 days |
| 10 | 977800 | Ferrari Brake Hose L.376 - 977800 | $93.40 | Available, ships in 3-6 days |
| 11 | 326837 | Ferrari Clip - 326837 | $4.77 | Available, ships in 3-6 days |
| 12 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 13 | 162606 | Ferrari Clip - 162606 | $2.82 | Available, ships in 3-6 days |
| 14 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 15 | 70003329 | Ferrari California T/Portofino/Roma Front Brake Pad Set BREMBO - 70003329 | $951.50 | In stock |
| 15 | 851787 | Ferrari Front Pad Set With Spring - 851787 | $3,371.33 | Special order, ships in 7-14 days |
| 16 | 70004900 | Ferrari Front Dust Gaiter Kit - 70004900 | $196.96 | Special order, ships in 7-14 days |
| 17 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 18 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
