Ferrari Roma — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)

Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari Roma, with 70 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

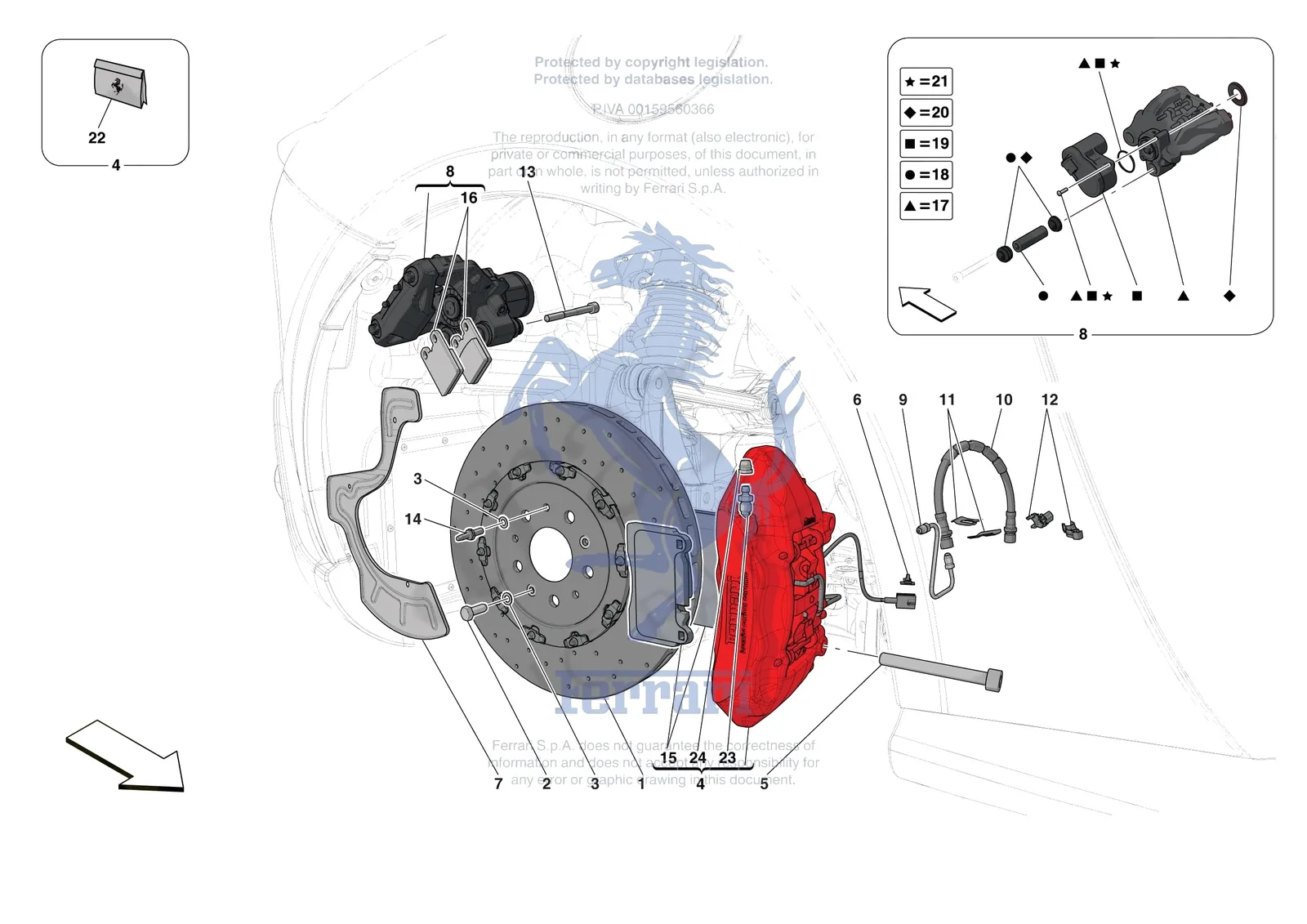

Ferrari Roma [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12486580Ferrari Botton - 12486580SupersededOrder 204781 instead
175871Ferrari Clip - 175871SupersededOrder 204781 instead
323365Ferrari Connector Fastener Clip - 323365SupersededOrder 204781 instead
335650Ferrari Rear RH Calliper With Pads - 335650SupersededOrder 829930 instead
1338393Ferrari Brake Disc - 338393$8,891.23Special order, ships in 7-14 days
2228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
3228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
4863172Ferrari LH REAR CALIPER WITH PADS - 863172Price on requestContact us for price and availability
4863175Ferrari LH REAR CALIPER WITH PADS - 863175Price on requestContact us for price and availability
4863179Ferrari LH REAR CALIPER WITH PADS - 863179Price on requestContact us for price and availability
4863183Ferrari LH REAR CALIPER WITH PADS - 863183Price on requestContact us for price and availability
4863210Ferrari LH REAR CALIPER WITH PADS - 863210Price on requestContact us for price and availability
4863214Ferrari LH REAR CALIPER WITH PADS - 863214Price on requestContact us for price and availability
4863225Ferrari LH REAR CALIPER WITH PADS - 863225Price on requestContact us for price and availability
4863229Ferrari LH REAR CALIPER WITH PADS - 863229Price on requestContact us for price and availability
4863278Ferrari LH REAR CALIPER WITH PADS - 863278Price on requestContact us for price and availability
4829677Ferrari Rear LH Calliper With Pads - 829677$3,236.76Special order, ships in 7-14 days
4829878Ferrari Rear LH Calliper With Pads - 829878$3,332.52Special order, ships in 7-14 days
4829882Ferrari Rear LH Calliper With Pads - 829882$3,467.82Special order, ships in 7-14 days
4829885Ferrari Rear LH Calliper With Pads - 829885$3,648.91Special order, ships in 7-14 days
4829886Ferrari Rear LH Calliper With Pads - 829886$3,648.91Special order, ships in 7-14 days
4829888Ferrari Rear LH Calliper With Pads - 829888$3,648.91Special order, ships in 7-14 days
4829889Ferrari Rear LH Calliper With Pads - 829889$4,213.00Special order, ships in 7-14 days
4829891Ferrari Rear LH Calliper With Pads - 829891$3,648.91Special order, ships in 7-14 days
4829893Ferrari Rear LH Calliper With Pads - 829893$4,213.00Special order, ships in 7-14 days
4829922Ferrari Rear RH Calliper With Pads - 829922$3,467.82Special order, ships in 7-14 days
4829923Ferrari Rear RH Calliper With Pads - 829923$3,648.91Special order, ships in 7-14 days
4829924Ferrari Rear RH Calliper With Pads - 829924$3,648.91Special order, ships in 7-14 days
4829925Ferrari Rear RH Calliper With Pads - 829925$3,648.91Special order, ships in 7-14 days
4829926Ferrari Rear RH Calliper With Pads - 829926$4,213.00Special order, ships in 7-14 days
4829927Ferrari Rear RH Calliper With Pads - 829927$3,648.91Special order, ships in 7-14 days
4829928Ferrari Rear RH Calliper With Pads - 829928$4,213.00Special order, ships in 7-14 days
4829930Ferrari Rear RH Calliper With Pads - 829930$3,236.76Special order, ships in 7-14 days
4829931Ferrari Rear RH Calliper With Pads - 829931$3,332.52Special order, ships in 7-14 days
4863173Ferrari RH REAR CALIPER WITH PADS - 863173Price on requestContact us for price and availability
4863177Ferrari RH REAR CALIPER WITH PADS - 863177Price on requestContact us for price and availability
4863181Ferrari RH REAR CALIPER WITH PADS - 863181Price on requestContact us for price and availability
4863201Ferrari RH REAR CALIPER WITH PADS - 863201Price on requestContact us for price and availability
4863212Ferrari RH REAR CALIPER WITH PADS - 863212Price on requestContact us for price and availability
4863216Ferrari RH REAR CALIPER WITH PADS - 863216Price on requestContact us for price and availability
4863227Ferrari RH REAR CALIPER WITH PADS - 863227Price on requestContact us for price and availability
4863264Ferrari RH REAR CALIPER WITH PADS - 863264Price on requestContact us for price and availability
4863281Ferrari RH REAR CALIPER WITH PADS - 863281Price on requestContact us for price and availability
5196837Ferrari Screw M12 x 1.5 x 105 - 196837$33.28Available, ships in 3-6 days
6204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
7338391Ferrari LH Rear Disc Shield - 338391$90.95Special order, ships in 7-14 days
7338392Ferrari RH Rear Disc Shield - 338392$90.95Special order, ships in 7-14 days
8339252Ferrari Pinza Stazionamento Cpl Dx - 339252$1,466.38Special order, ships in 7-14 days
8339251Ferrari Pinza Stazionamento Cpl Sx - 339251$1,466.38Special order, ships in 7-14 days
9338397Ferrari Tubo Freno Da Pinza A Flex.D - 338397$51.62Special order, ships in 7-14 days
9338396Ferrari Tubo Freno Da Pinza A Flex.S - 338396$51.62Special order, ships in 7-14 days
10977797Ferrari Brake Hose 330 mm - 977797$100.78Available, ships in 3-6 days
10307382Ferrari Rubber Pipe - 307382SupersededOrder 977797 instead
11116374Ferrari/Maserati Clip - 116374$3.20In stock
12310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
13338792Ferrari Screw - 338792$5.44Special order, ships in 7-14 days
14104370Ferrari Wheel Alignment Stud - 104370$16.39In stock
1570004286Ferrari Rear Pad Set With Spring - 70004286$2,761.00Available, ships in 3-6 days
15851788Ferrari Rear Pad Set With Spring - 851788$3,366.60Special order, ships in 7-14 days
1670004343Ferrari Set Electronic Parking Brake Pads - 70004343$1,842.45Available, ships in 3-6 days
1670006840Ferrari Set Electronic Parking Brake Pads - 70006840$1,924.47Available, ships in 3-6 days
1770004366Ferrari Corpo Pinza Freno Epb Dx. F1 - 70004366$1,772.80Special order, ships in 7-14 days
1770004365Ferrari Corpo Pinza Freno Epb Sx. F1 - 70004365Price on requestContact us for price and availability
1870004367Ferrari Kit Ricambio Guide Epb F164 - 70004367$135.66Special order, ships in 7-14 days
1970004368Ferrari Gear Motor Spare Parts Kit - EPB - 70004368$525.26Special order, ships in 7-14 days
2070004369Ferrari Kit Ricambio Parti In Gomma - 70004369$39.37Special order, ships in 7-14 days
2170004370Ferrari Kit Oring E Viti Epb F164 - 70004370$39.37Special order, ships in 7-14 days
2270004901Ferrari Rear Dust Gaiter Kit - 70004901$186.84Special order, ships in 7-14 days
23215665Ferrari Bleed Nipple Valve - 215665$78.66Available, ships in 3-6 days
24215666Ferrari Cap For Bleed Nipple - 215666$51.62Available, ships in 3-6 days

All Roma diagrams
