Ferrari Roma — [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS (diagram 0083)
Exploded view of the [mechanical system] - d.29 - complete wheels on the Ferrari Roma, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

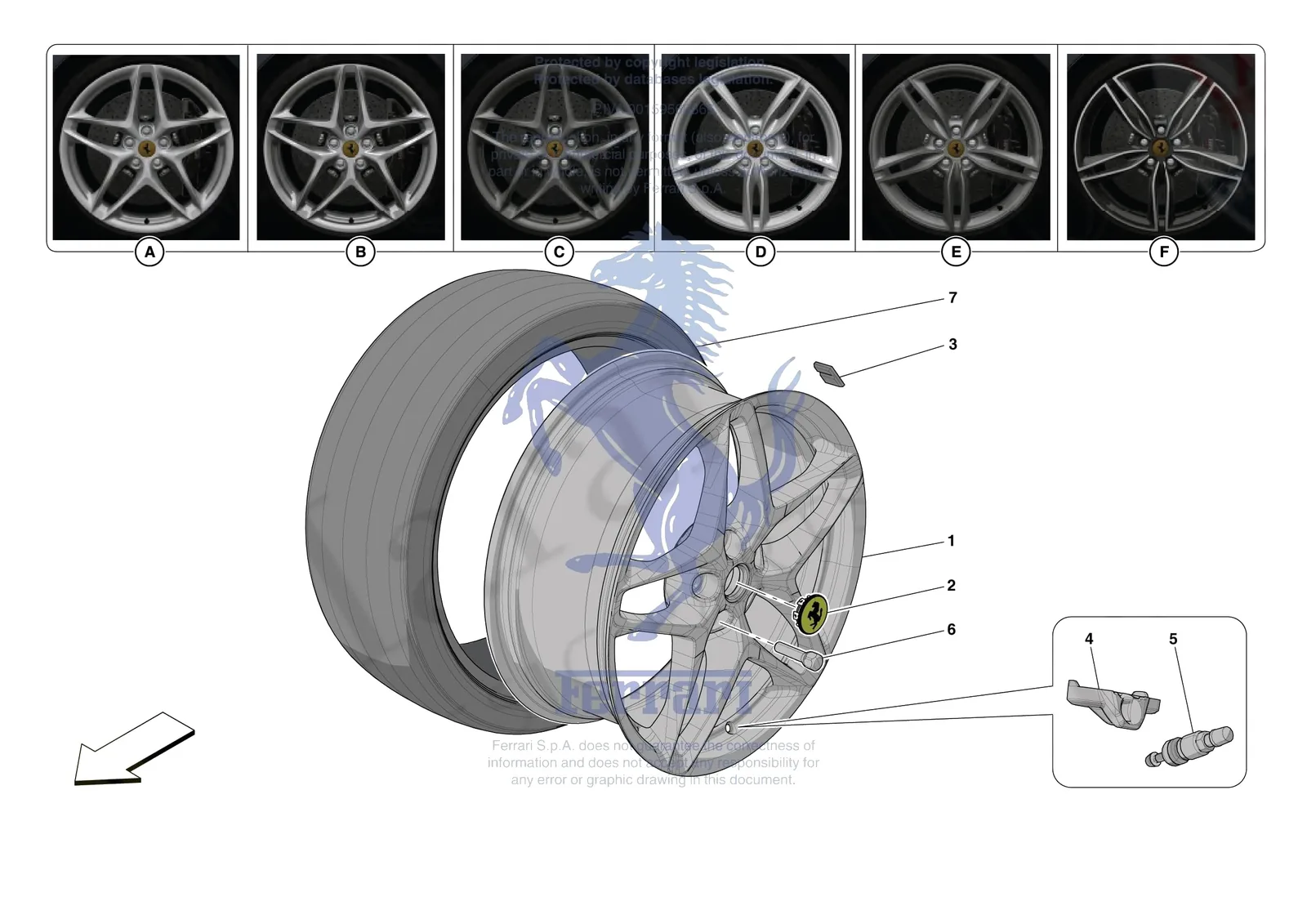

![Ferrari Roma [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0083.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 108947 | Ferrari Push In Hub Cap - 108947 | Superseded | Order 55059092 instead | |
| 226245 | Ferrari Push In Hub Cap - 226245 | Superseded | Order 55059092 instead | |
| 192724 | Ferrari Wheel Bolt - 192724 | Superseded | Order 55031812 instead | |
| 247702 | Ferrari Wheel Bolt L50.5-26.5F - 247702 | Superseded | Order 55031812 instead | |
| 1 | 866482 | Ferrari Front Wheel 8J x 20 H2 - 866482 | $5,306.99 | Special order, ships in 7-14 days |
| 1 | 70007121 | Ferrari Front Wheel - 70007121 | $6,622.30 | Special order, ships in 7-14 days |
| 1 | 70007122 | Ferrari Front Wheel - 70007122 | $15,620.89 | Special order, ships in 7-14 days |
| 1 | 866485 | Ferrari Front Wheel 8J X 20 H2 - 866485 | $2,209.50 | Special order, ships in 7-14 days |
| 1 | 881320 | Ferrari Front Wheel 8J x 20 H2 - 881320 | $2,849.43 | Special order, ships in 7-14 days |
| 1 | 881322 | Ferrari Front Wheel 8J x 20 H2 - 881322 | $2,674.33 | Special order, ships in 7-14 days |
| 1 | 881324 | Ferrari Front Wheel 8J x 20 H2 - 881324 | $5,598.82 | Special order, ships in 7-14 days |
| 1 | 881326 | Ferrari Front Wheel 8J x 20 H2 - 881326 | $6,144.96 | Special order, ships in 7-14 days |
| 1 | 70007123 | Ferrari Rear Wheel - 70007123 | $6,689.00 | Special order, ships in 7-14 days |
| 1 | 70007124 | Ferrari Rear Wheel - 70007124 | $15,620.89 | Special order, ships in 7-14 days |
| 1 | 866483 | Ferrari Rear Wheel 10J x 20 - 866483 | $5,638.43 | Special order, ships in 7-14 days |
| 1 | 866487 | Ferrari Rear Wheel 10J x 20 - 866487 | $2,326.23 | Special order, ships in 7-14 days |
| 1 | 881321 | Ferrari Rear Wheel 10J x 20 - 881321 | $2,901.54 | Special order, ships in 7-14 days |
| 1 | 881323 | Ferrari Rear Wheel 10J x 20 - 881323 | $2,726.45 | Special order, ships in 7-14 days |
| 1 | 881325 | Ferrari Rear Wheel 10J x 20 - 881325 | $5,930.26 | Special order, ships in 7-14 days |
| 1 | 881327 | Ferrari Rear Wheel 10J x 20 - 881327 | $6,147.04 | Special order, ships in 7-14 days |
| 2 | 744579 | Ferrari Hub Cap - 744579 | $58.05 | Available, ships in 3-6 days |
| 2 | 889561 | Ferrari Hub Cap - 889561 | $442.56 | Special order, ships in 7-14 days |
| 2 | 340066 | Ferrari Wheel Center Cap Set - 55059092/4 | Superseded | Order 55059092 instead |
| 2 | 55059092 | Ferrari Wheel Centre Cap - 55059092 | $44.11 | Available, ships in 3-6 days |
| 3 | 11096693 | Ferrari Adhesive Wheel Balancer Weight - 11096693 | $24.32 | Special order, ships in 7-14 days |
| 4 | 314818 | Ferrari Tpms Wheel Sensor Gen 3.8 - 314818 | Superseded | Order 777770 instead |
| 4 | 314821 | Ferrari Tyre Pressure Monitoring System - 314821 | Superseded | Order 777804 instead |
| 4 | 777804 | Ferrari Tyre Pressure Monitoring System - 777804 | $327.81 | Available, ships in 3-6 days |
| 4 | 777770 | Ferrari Tyre Pressure Monitoring System Wheel Sensor - 777770 | $327.81 | Available, ships in 3-6 days |
| 5 | 913102 | Ferrari Tyre Valve - 913102 | $30.57 | Available, ships in 3-6 days |
| 5 | 185328 | Ferrari/Maserati Tire Valve - 185328 | $26.75 | In stock |
| 6 | 803384 | Ferrari Wheel Bolt L50.5-26 - 803384 | $24.47 | Available, ships in 3-6 days |
| 6 | 55031812 | Ferrari Wheel Bolt L50.5-26.5 - 55031812 | $63.90 | Available, ships in 3-6 days |
