Ferrari Roma — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0093)

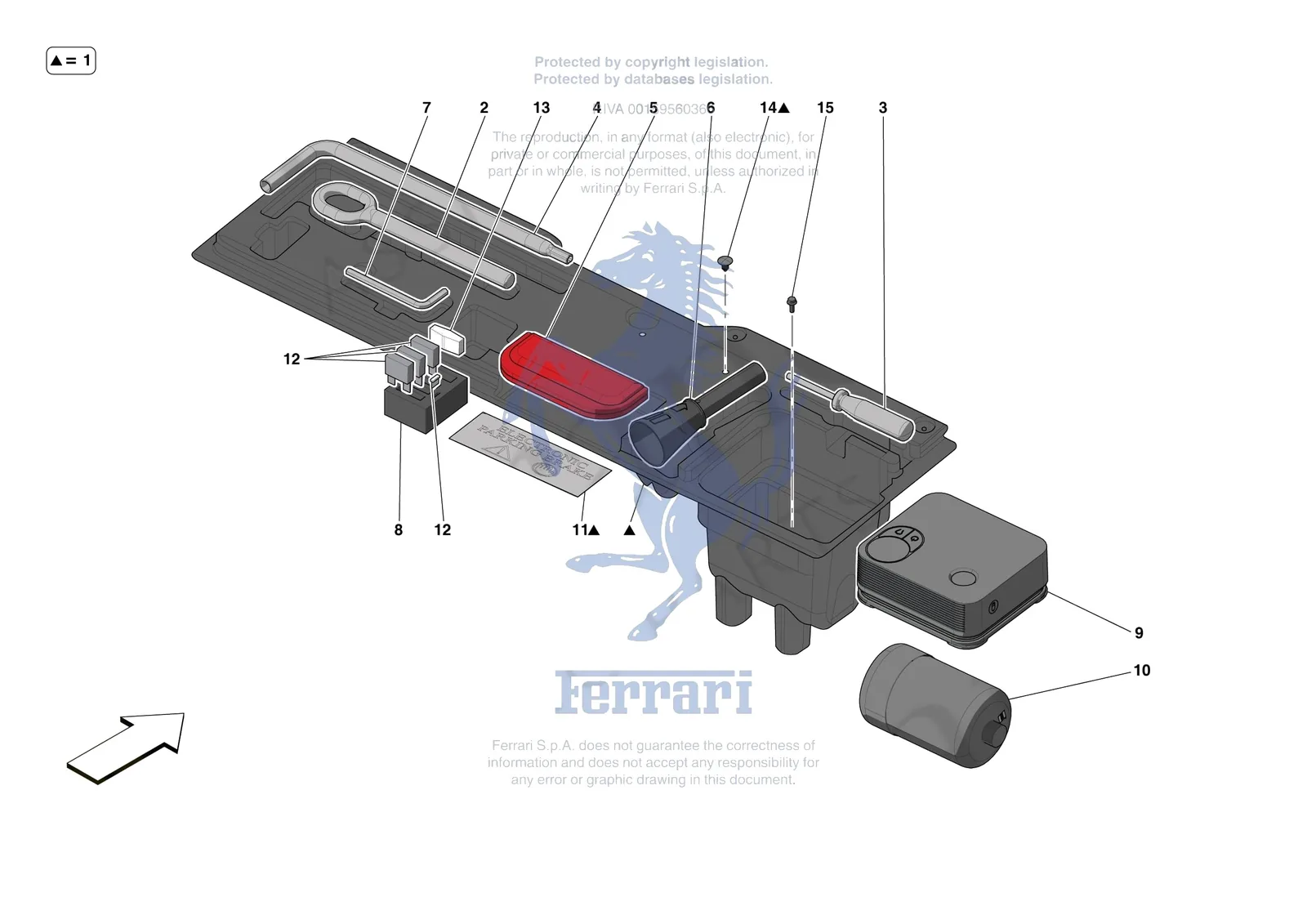

Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari Roma, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0093.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 823636 | Ferrari Tool Kit Tray - 823636 | $295.03 | Special order, ships in 7-14 days | |
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 1 | 921846 | Ferrari Complete Tool Kit Tray - 921846 | $167.17 | Special order, ships in 7-14 days |
| 2 | 155838 | Ferrari Tow Hook - 155838 | $98.87 | In stock |
| 3 | 225020 | Ferrari Screwdriver - 225020 | $56.52 | Special order, ships in 7-14 days |
| 4 | 343204 | Ferrari P. Lock and RHT Release Tool - 343204 | $83.57 | Special order, ships in 7-14 days |
| 5 | 65253000 | Ferrari Accessory Holder Wallet Complete - 65253000 | $179.46 | Special order, ships in 7-14 days |
| 6 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 7 | 14534279 | Ferrari Chiave Maschio Esagonale Pie - 14534279 | $72.10 | Special order, ships in 7-14 days |
| 8 | 815451 | Ferrari Fuse Compartment Foam Insert - 815451 | $44.29 | Special order, ships in 7-14 days |
| 9 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 10 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 11 | 341813 | Ferrari DCT RELEASE PRECAUTIONS LABEL - 341813 | $34.40 | Special order, ships in 7-14 days |
| 12 | 169438 | Ferrari Maxi Fuse 20A - 169438 | $26.24 | Available, ships in 3-6 days |
| 12 | 166835 | Ferrari Maxi Fuse 40A - 166835 | $17.46 | Available, ships in 3-6 days |
| 12 | 172871 | Ferrari Maxi Fuse 60A - 172871 | $28.42 | Available, ships in 3-6 days |
| 12 | 172879 | Ferrari Mini Fuse 20A - 172879 | $13.95 | Available, ships in 3-6 days |
| 13 | 178659 | Ferrari Fuse Pliers - 178659 | $4.89 | Special order, ships in 7-14 days |
| 14 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 15 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
