Ferrari Roma — [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE (diagram 0101)

Exploded view of the [vehicle trim] - e.5 - front substructure on the Ferrari Roma, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

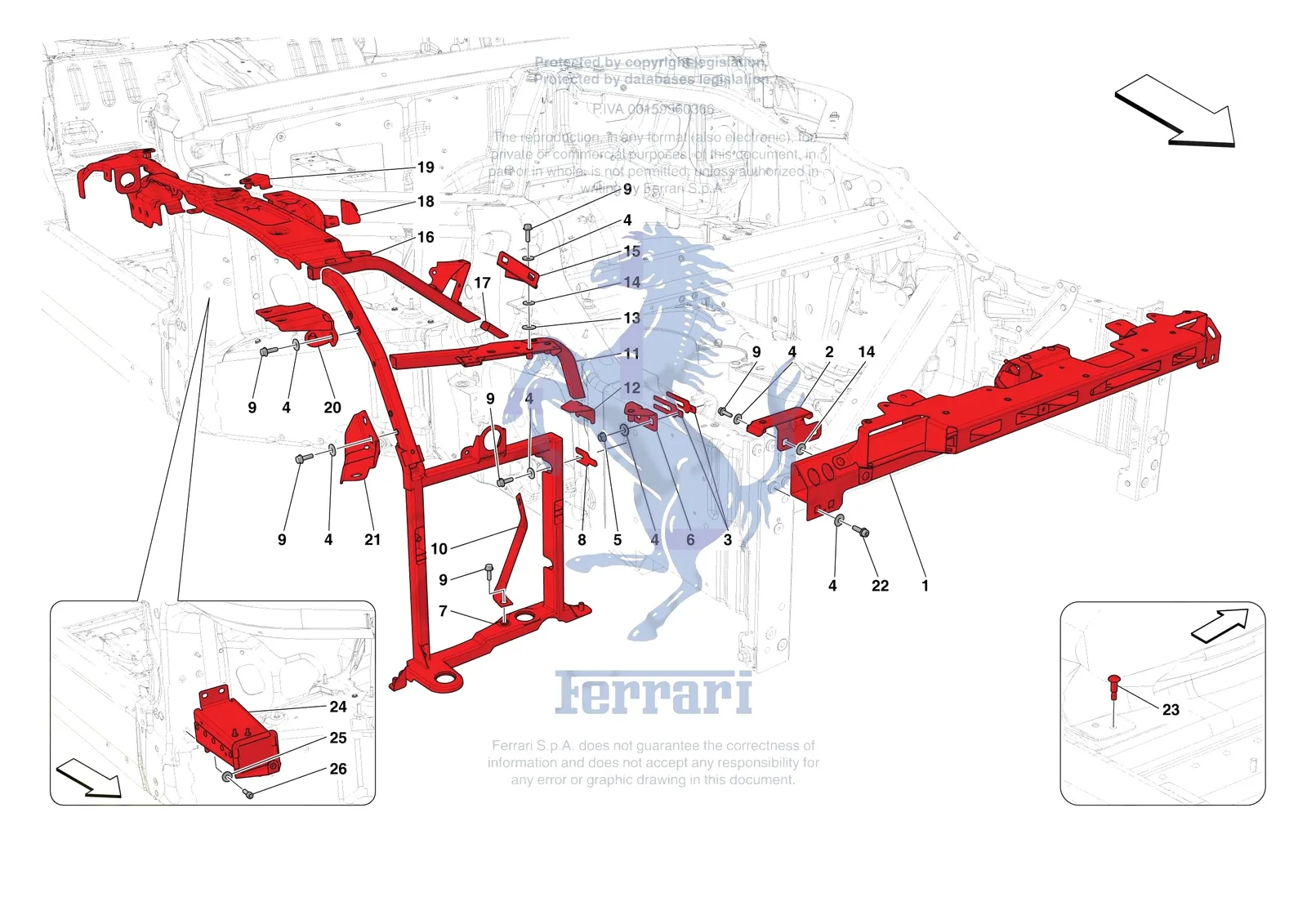

Ferrari Roma [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
985764928Ferrari Compl. LH Front Intercooler - 985764928SupersededOrder 985780482 instead
985764934Ferrari Compl. RH Front Intercooler - 985764934SupersededOrder 985780486 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985883015Ferrari Front Bumper Cross-Member - 985883015$4,270.24Special order, ships in 7-14 days
1985933948Ferrari Front Bumper Cross-Member - 985933948$4,270.24Special order, ships in 7-14 days
2985883031Ferrari Compl. LH Inner Lateral Fast - 985883031$467.80Special order, ships in 7-14 days
2985883040Ferrari Compl. RH Inner Lateral Fast - 985883040$467.80Special order, ships in 7-14 days
3821189Ferrari Adjuster Shim - 821189$5.14Special order, ships in 7-14 days
3824254Ferrari Adjuster Shim - 824254$3.91Special order, ships in 7-14 days
412643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
412643724Ferrari/Maserati Washer - 12643724$0.20In stock
514059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
6904608Ferrari Compl. Headlight Fastener Bracket - 904608$34.44Special order, ships in 7-14 days
7985780482Ferrari Compl. LH Front Intercooler - 985780482$1,551.20Special order, ships in 7-14 days
7955028554Ferrari Compl. LH Intercooler Trelli - 955028554$837.14Special order, ships in 7-14 days
7985780486Ferrari Compl. RH Front Intercooler - 985780486$1,551.20Special order, ships in 7-14 days
7955028557Ferrari Compl. RH Intercooler Trelli - 955028557$837.14Special order, ships in 7-14 days
886225600Ferrari Metal Plate - 86225600$7.61Special order, ships in 7-14 days
916286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1088730811Ferrari LH Intercooler Cross-Bar Tie - 88730811$295.43Available, ships in 3-6 days
1088730911Ferrari RH Intercooler Cross-Bar Tie Rod - 88730911$295.43Special order, ships in 7-14 days
11985883019Ferrari Compl. LH Front Fender Trell - 985883019$911.01Special order, ships in 7-14 days
11985883016Ferrari Compl. RH Front Fender Trellis - 985883016$911.01Special order, ships in 7-14 days
12904609Ferrari Lower Cross Piece Bracket Front - 904609$16.46Special order, ships in 7-14 days
1312647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
1468040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
15968870Ferrari LH Fender Front Adjustment B - 968870$39.37Special order, ships in 7-14 days
15968871Ferrari RH Fender Front Adjustment Bracket - 968871$39.37Special order, ships in 7-14 days
16955022036Ferrari Compl. LH Front Fender Mount - 955022036$2,133.94Special order, ships in 7-14 days
16985883027Ferrari Compl. LH Front Fender Mount - 985883027$4,659.53Special order, ships in 7-14 days
16955022038Ferrari Compl. RH Front Fender Mount - 955022038$2,133.94Special order, ships in 7-14 days
16985883025Ferrari Compl. RH Front Fender Mount - 985883025$4,659.53Special order, ships in 7-14 days
17985783774Ferrari LH Fender Trellis Fastener B - 985783774$130.47Special order, ships in 7-14 days
17985783773Ferrari RH Fender Trellis Fastener B - 985783773$130.47Special order, ships in 7-14 days
1888732911Ferrari Upper Front Connector Elemen - 88732911$150.17Special order, ships in 7-14 days
1988731911Ferrari Compl. Expansion Tank Mounti - 88731911$150.17Special order, ships in 7-14 days
20985883072Ferrari Compl. External LH Fender Co - 985883072$219.11Special order, ships in 7-14 days
20985883073Ferrari Compl. External RH Fender Connector Bracket - 985883073$418.56Special order, ships in 7-14 days
21985780574Ferrari LH Headlight External Fasten - 985780574$194.48Special order, ships in 7-14 days
21985780673Ferrari RH Headlight External Fasten - 985780673$270.83Special order, ships in 7-14 days
22231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
2314639791Ferrari Rivet D. 6.4X 14.1 - 14639791$2.59Special order, ships in 7-14 days
24985952382Ferrari Compl. LH Bumper - 985952382$787.90Contact us to order
24985952384Ferrari Compl. RH Bumper - 985952384$664.78Contact us to order
24985978620Ferrari Compl. RH Bumper - 985978620SupersededOrder 985952384 instead
2587944700Ferrari Washer - 87944700$0.57Special order, ships in 7-14 days
2614814434Ferrari Screw M8 x 25 - 14814434$0.90Available, ships in 3-6 days

All Roma diagrams
