Ferrari Roma — [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE (diagram 0102)

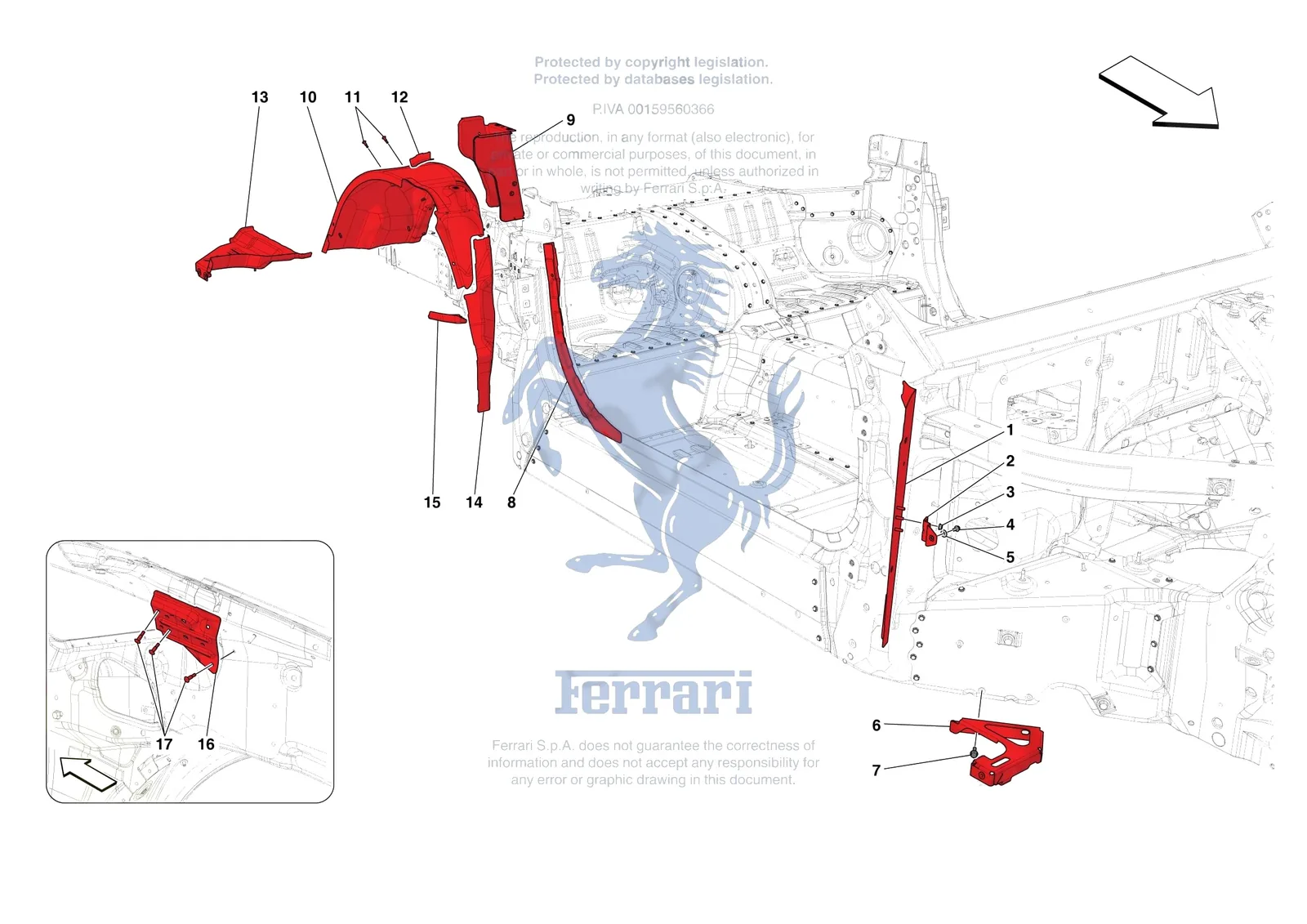

Exploded view of the [vehicle trim] - e.6 - lateral substructure on the Ferrari Roma, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0102.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 1 | 985898514 | Ferrari Compl. LH Flank Front Mounti - 985898514 | $344.69 | Special order, ships in 7-14 days |
| 1 | 985898516 | Ferrari Compl. RH Flank Front Mounti - 985898516 | $344.69 | Special order, ships in 7-14 days |
| 2 | 985958940 | Ferrari Fender Adjustment Bracket - 985958940 | $233.89 | Special order, ships in 7-14 days |
| 3 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 3 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 4 | 16285021 | Ferrari Screw - 16285021 | $0.82 | Special order, ships in 7-14 days |
| 5 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 6 | 985882749 | Ferrari Compl. LH Front Fender Lower - 985882749 | $467.80 | Special order, ships in 7-14 days |
| 6 | 955022215 | Ferrari Compl. Lower Mount For RH Fr - 955022215 | $443.17 | Special order, ships in 7-14 days |
| 6 | 985882744 | Ferrari Compl. Lower Mount For RH Fr - 985882744 | $467.80 | Special order, ships in 7-14 days |
| 7 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 8 | 985882734 | Ferrari LH B-Pillar Inner Truss - 985882734 | $443.17 | Special order, ships in 7-14 days |
| 8 | 985882732 | Ferrari RH B-Pillar Inner Truss - 985882732 | $443.17 | Special order, ships in 7-14 days |
| 9 | 985882733 | Ferrari Compl. LH C Pillar Substruct - 985882733 | $517.04 | Special order, ships in 7-14 days |
| 9 | 985882741 | Ferrari Compl. RH C Pillar Substruct - 985882741 | $517.04 | Special order, ships in 7-14 days |
| 10 | 985882736 | Ferrari Compl. LH Inner Rear WheeLHo - 985882736 | $1,083.38 | Special order, ships in 7-14 days |
| 10 | 985882742 | Ferrari Compl. RH Inner Rear WheeLHo - 985882742 | $787.90 | Special order, ships in 7-14 days |
| 11 | 14639791 | Ferrari Rivet D. 6.4X 14.1 - 14639791 | $2.59 | Special order, ships in 7-14 days |
| 12 | 882743 | Ferrari LH Flank Joint Bracket - 882743 | $10.83 | Special order, ships in 7-14 days |
| 12 | 882746 | Ferrari RH Flank Joint Bracket - 882746 | $10.83 | Special order, ships in 7-14 days |
| 13 | 985882747 | Ferrari Compl. LH Lateral Closure Pa - 985882747 | $590.91 | Special order, ships in 7-14 days |
| 13 | 985918020 | Ferrari Compl. LH Lateral Closure Pa - 985918020 | $640.17 | Special order, ships in 7-14 days |
| 13 | 955021299 | Ferrari Compl. RH Lateral Closure Pa - 955021299 | Superseded | Order 985918037 instead |
| 13 | 985882738 | Ferrari Compl. RH Lateral Closure Pa - 985882738 | Superseded | Order 985918037 instead |
| 13 | 985918037 | Ferrari Compl. RH Lateral Closure Pa - 985918037 | $517.04 | Special order, ships in 7-14 days |
| 14 | 985882740 | Ferrari LH Front Part Of Inner Rear - 985882740 | $418.56 | Special order, ships in 7-14 days |
| 14 | 985882735 | Ferrari RH Front Part Of Inner Rear - 985882735 | $714.03 | Special order, ships in 7-14 days |
| 15 | 985882737 | Ferrari LH Fumes Cover Cap. - 985882737 | $369.30 | Special order, ships in 7-14 days |
| 15 | 985882748 | Ferrari RH Fumes Cover Cap. - 985882748 | $369.30 | Special order, ships in 7-14 days |
| 16 | 890249 | Ferrari LH Cut Cover - 890249 | $93.53 | Special order, ships in 7-14 days |
| 16 | 890248 | Ferrari RH Cut Cover - 890248 | $93.53 | Special order, ships in 7-14 days |
| 17 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
