Ferrari Roma — [VEHICLE TRIM] - E.7 - REAR SUBSTRUCTURE (diagram 0103)

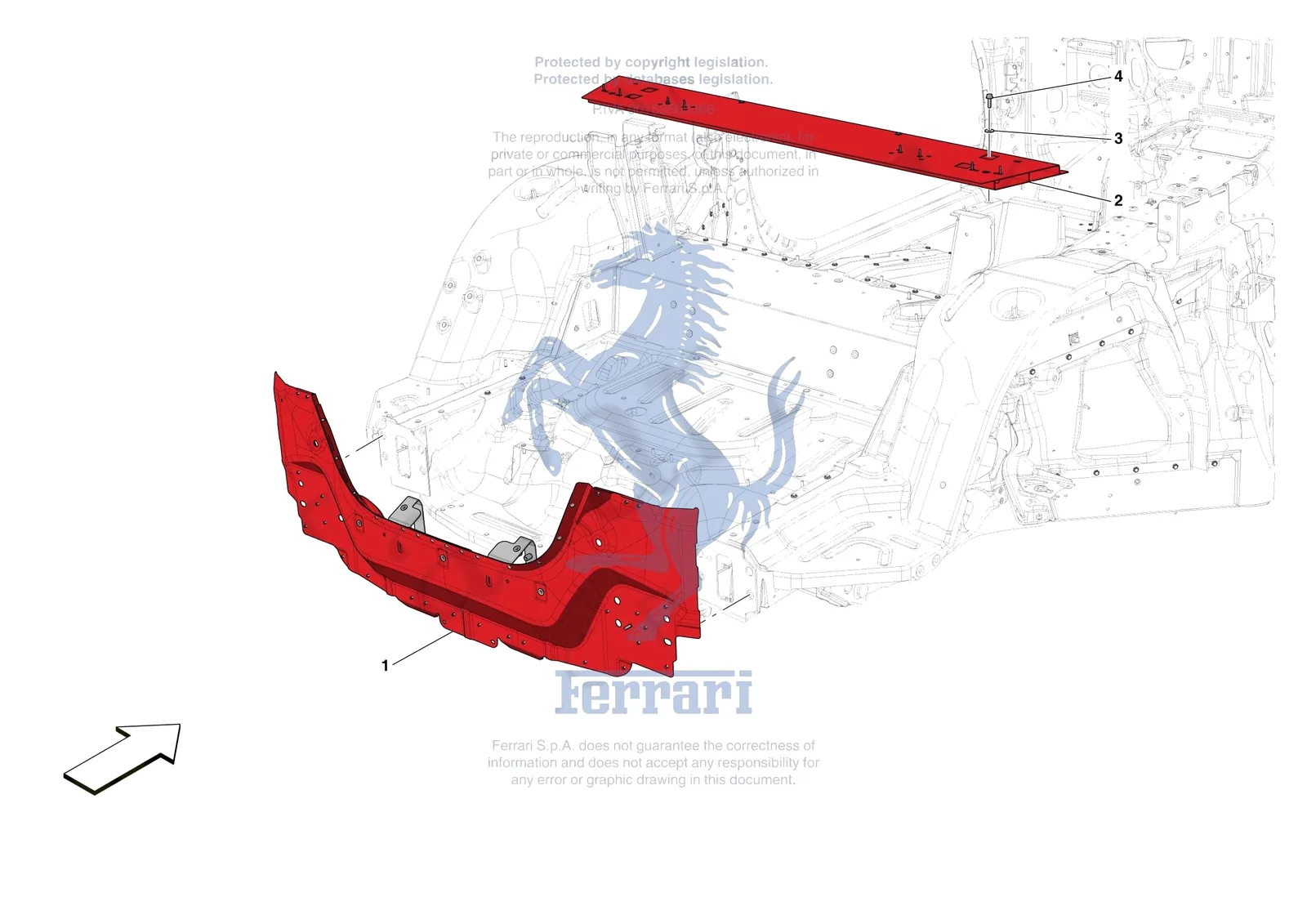

Exploded view of the [vehicle trim] - e.7 - rear substructure on the Ferrari Roma, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.7 - REAR SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0103.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985882979 | Ferrari Compl. Rear Cross Member - 985882979 | $2,485.70 | Special order, ships in 7-14 days |
| 2 | 985882991 | Ferrari Compl. Parcel Shelf Cross Me - 985882991 | $1,428.09 | Special order, ships in 7-14 days |
| 3 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 4 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
