Ferrari Roma — [VEHICLE TRIM] - E.8 - FRONT DOOR SUBSTRUCTURE (diagram 0104)
Exploded view of the [vehicle trim] - e.8 - front door substructure on the Ferrari Roma, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

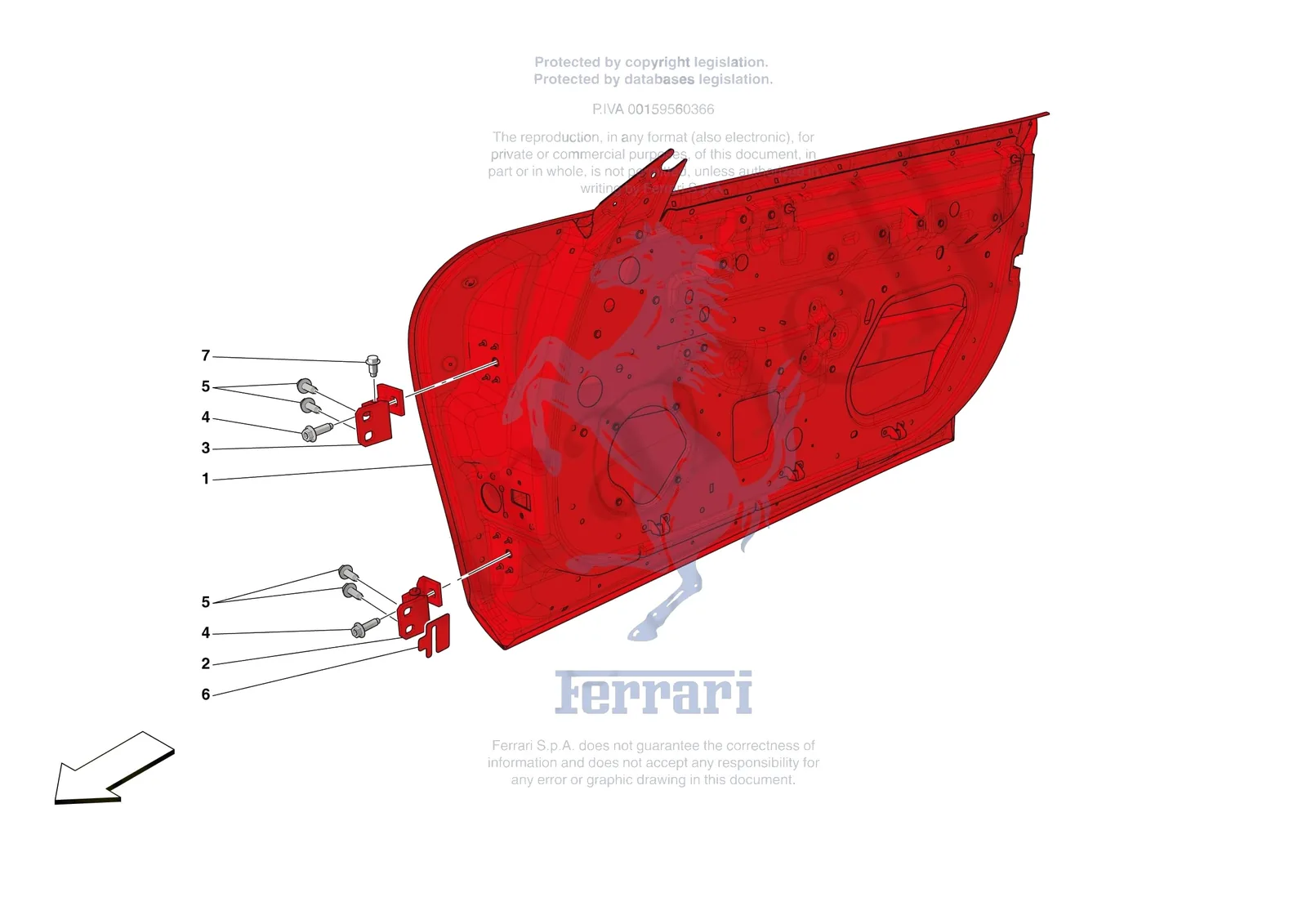

![Ferrari Roma [VEHICLE TRIM] - E.8 - FRONT DOOR SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0104.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82505100 | Ferrari Screw - 82505100 | Superseded | Order 81267100 instead | |
| 1 | 985882457 | Ferrari Compl. LH Door Structure - 985882457 | Superseded | Order 985921163 instead |
| 1 | 985921163 | Ferrari Compl. LH Door Structure - 985921163 | $15,848.10 | Contact us to order |
| 1 | 985882420 | Ferrari Compl. RH Door Structure - 985882420 | $12,846.49 | Contact us to order |
| 1 | 985921173 | Ferrari Compl. RH Door Structure - 985921173 | $15,848.10 | Contact us to order |
| 2 | 83865100 | Ferrari LH Upper Hinge - 83865100 | $78.66 | Available, ships in 3-6 days |
| 2 | 83856100 | Ferrari RH Upper Hinge - 83856100 | $78.66 | Special order, ships in 7-14 days |
| 3 | 83864900 | Ferrari LH Lower Door Hinge - 83864900 | $78.66 | Available, ships in 3-6 days |
| 3 | 83856000 | Ferrari RH Lower Door Hinge - 83856000 | $78.66 | Special order, ships in 7-14 days |
| 4 | 81267100 | Ferrari Screw M10 x 30 - 81267100 | $10.02 | Special order, ships in 7-14 days |
| 5 | 18754324 | Ferrari Screw M10 x 1.25 x 32 - 18754324 | $3.03 | Available, ships in 3-6 days |
| 6 | 88927700 | Ferrari Shim 1.0mm - 88927700 | $4.56 | Special order, ships in 7-14 days |
| 7 | 85133600 | Ferrari Screw - 85133600 | $2.82 | Available, ships in 3-6 days |
