Ferrari Roma — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

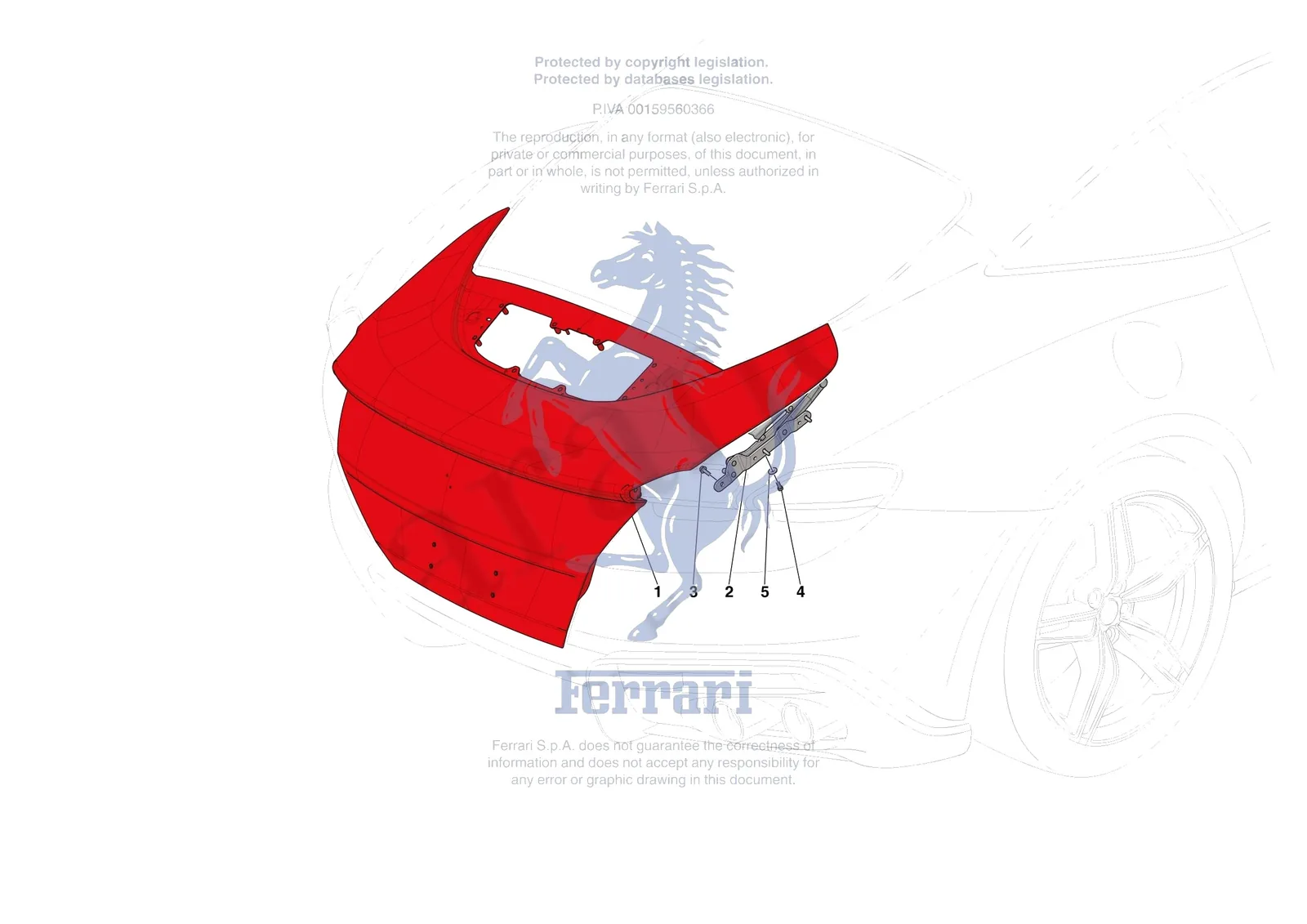

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari Roma, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985882872 | Ferrari Complete Luggage Compartment Lid - Primer - 985882872 | $16,756.92 | Contact us to order |
| 2 | 912404 | Ferrari LH Hinge - 912404 | $295.43 | Special order, ships in 7-14 days |
| 2 | 912400 | Ferrari RH Hinge` - 912400 | $295.43 | Special order, ships in 7-14 days |
| 3 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 4 | 13027024 | Ferrari Screw TCEI M6 x 16 - 13027024 | $0.38 | Special order, ships in 7-14 days |
| 5 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
