Ferrari Roma — [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE (diagram 0116)

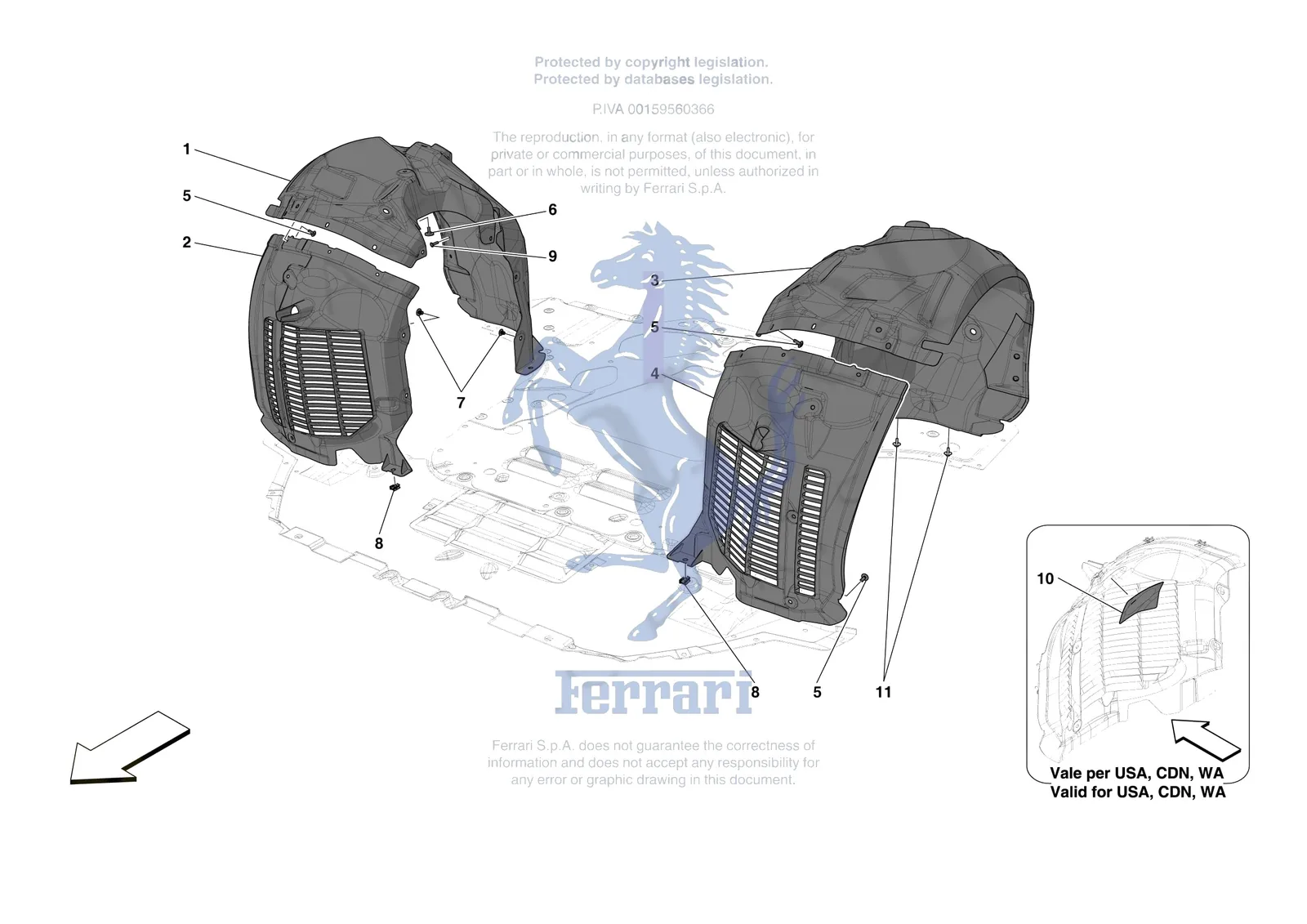

Exploded view of the [vehicle trim] - e.17 - front wheelhouse on the Ferrari Roma, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 965412 | Ferrari Front Wheelhouse - RH Rear Part - 965412 | $262.62 | Special order, ships in 7-14 days |
| 2 | 965413 | Ferrari Front Wheelhouse - RH Front Part - 965413 | $131.29 | Special order, ships in 7-14 days |
| 2 | 979244 | Ferrari Front Wheelhouse. RH Front Part - 979244 | $131.29 | Special order, ships in 7-14 days |
| 3 | 965395 | Ferrari Front Wheelhouse - LH Rear Part - 965395 | $262.62 | Special order, ships in 7-14 days |
| 4 | 979243 | Ferrari Front Wheelhouse - LH Front Part - 979243 | $131.29 | Special order, ships in 7-14 days |
| 4 | 965394 | Ferrari Front Wheelhouse. LH Front Part - 965394 | $131.29 | Special order, ships in 7-14 days |
| 5 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 5 | 82113500 | Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500 | $5.86 | Available, ships in 3-6 days |
| 6 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 7 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 8 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
| 10 | 817257 | Ferrari Anti-Tamper Adhesive Plug - 817257 | $11.12 | Special order, ships in 7-14 days |
| 11 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
