Ferrari Roma — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0119)

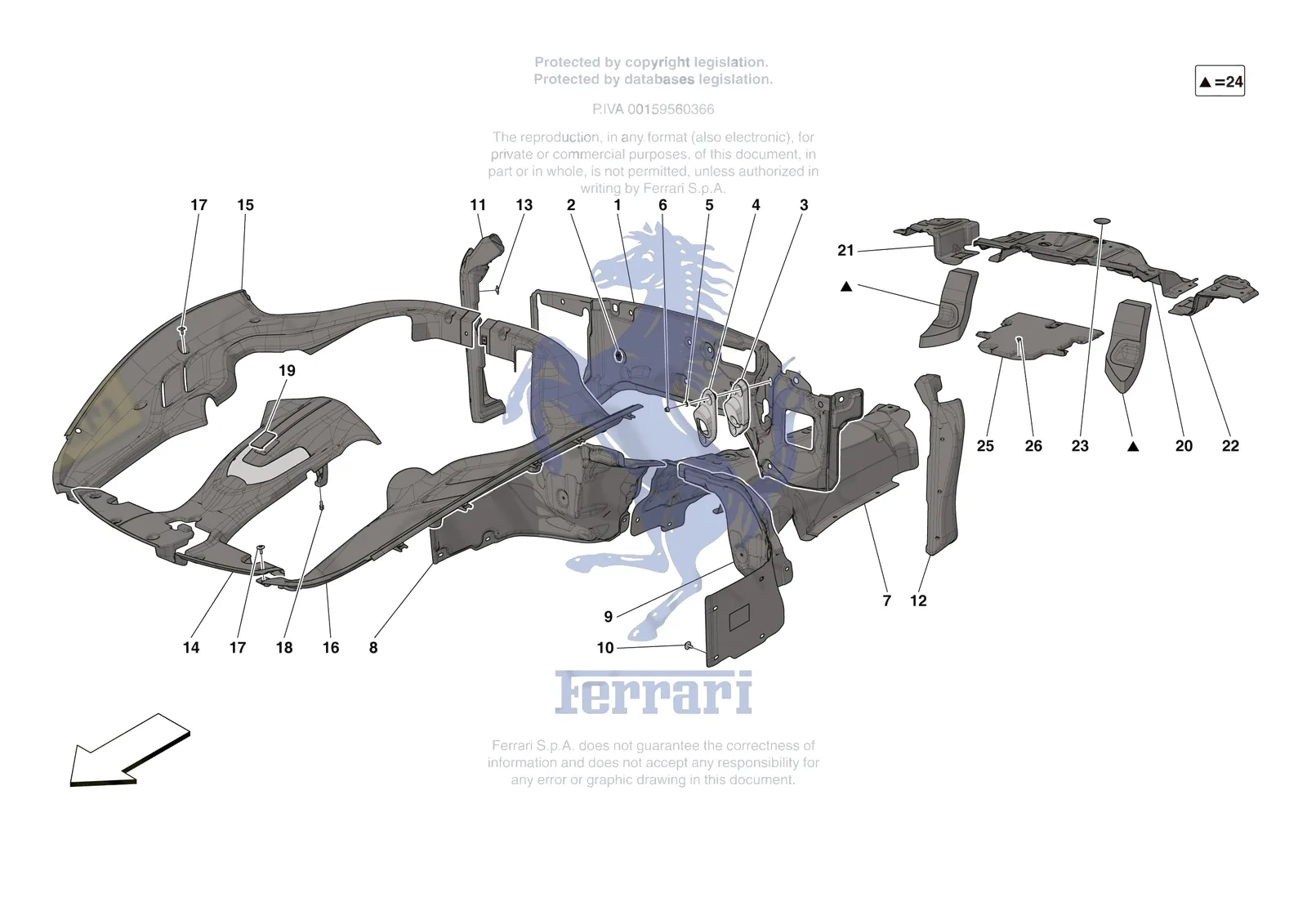

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari Roma, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0119.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 768369 | Ferrari Central Heat Shield for Spare Wheel Tray - 768369 | $367.14 | Special order, ships in 7-14 days | |
| 89129600 | Ferrari Engine Compartment Insulatio - 89129600 | $440.56 | Special order, ships in 7-14 days | |
| 782497 | Ferrari Engine Compartment Insulation - 782497 | $391.61 | Special order, ships in 7-14 days | |
| 1 | 903082 | Ferrari Engine Compartment Insulation - 903082 | $393.93 | Special order, ships in 7-14 days |
| 1 | 910687 | Ferrari Engine Compartment Insulation - 910687 | Superseded | Order 89129600 instead |
| 2 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
| 3 | 768522 | Ferrari Plug - 768522 | $95.87 | Special order, ships in 7-14 days |
| 3 | 89052100 | Ferrari Plug - 89052100 | $76.19 | Special order, ships in 7-14 days |
| 4 | 768521 | Ferrari Steering Column Compartment Cover - 768521 | $22.60 | Special order, ships in 7-14 days |
| 4 | 89052200 | Ferrari Steering Column Compartment Cover - 89052200 | $16.45 | Special order, ships in 7-14 days |
| 5 | 786772 | Ferrari Washer - 786772 | $1.17 | Special order, ships in 7-14 days |
| 6 | 14058419 | Ferrari Flanged Nut - 14058419 | $1.61 | Special order, ships in 7-14 days |
| 7 | 792722 | Ferrari Riparo Calore Tunnel - 792722 | $566.30 | Special order, ships in 7-14 days |
| 8 | 790516 | Ferrari Riparo Calore Catalizz - 790516 | $344.69 | Special order, ships in 7-14 days |
| 9 | 790514 | Ferrari Riparo Calore Catalizz - 790514 | $344.69 | Special order, ships in 7-14 days |
| 10 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 11 | 903079 | Ferrari Tampone Post. Parafango Ant. - 903079 | $91.08 | Special order, ships in 7-14 days |
| 12 | 903077 | Ferrari Tampone Post. Parafango Ant. - 903077 | $91.08 | Special order, ships in 7-14 days |
| 13 | 67640300 | Ferrari Fixing Button - 67640300 | $1.04 | Available, ships in 3-6 days |
| 14 | 903078 | Ferrari Complete Front Engine Compartment Cover - 903078 | $443.17 | Special order, ships in 7-14 days |
| 15 | 903084 | Ferrari Paratia Estetica Vano Motore - 903084 | $344.69 | Special order, ships in 7-14 days |
| 16 | 903076 | Ferrari Compl. LH Engine Compartment Cover - 903076 | $344.69 | Special order, ships in 7-14 days |
| 17 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
| 18 | 85797600 | Ferrari Special Screw - 85797600 | $59.07 | Available, ships in 3-6 days |
| 20 | 836326 | Ferrari Central Heat Shield For Spare Wheel Tray - 836326 | $368.79 | Special order, ships in 7-14 days |
| 21 | 862857 | Ferrari Riparo Calore Pavimento Baul - 862857 | $206.81 | Special order, ships in 7-14 days |
| 22 | 862858 | Ferrari Riparo Calore Pavimento Baul - 862858 | $206.81 | Special order, ships in 7-14 days |
| 23 | 14507287 | Ferrari Rubber Plug - 14507287 | $30.57 | Special order, ships in 7-14 days |
| 24 | 1002910 | Ferrari Rear Shelf Insulation Kit - 1002910 | $152.62 | Special order, ships in 7-14 days |
| 25 | 954470 | Ferrari Isolamento Fondo Post. Serie - 954470 | $150.17 | Special order, ships in 7-14 days |
| 26 | 14591687 | Ferrari Fixing Button - 14591687 | $0.13 | Available, ships in 3-6 days |
