Ferrari Roma — [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES (diagram 0122)

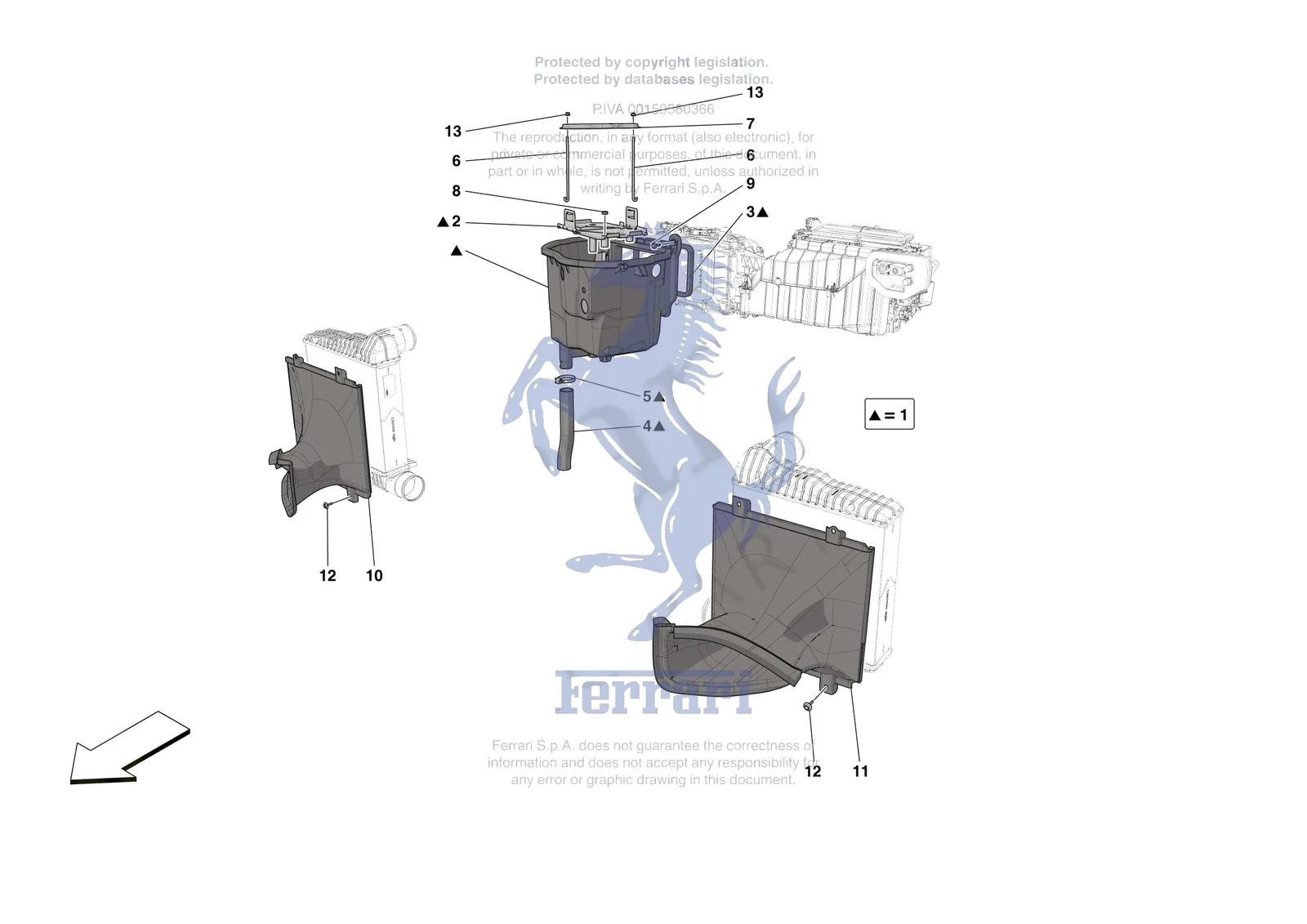

Exploded view of the [vehicle trim] - e.23 - lateral air intakes on the Ferrari Roma, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0122.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 89185200 | Ferrari Air Feeder Partition - 89185200 | Superseded | Order 811335 instead | |
| 88959100 | Ferrari Compl. Inlet Tray - 88959100 | Superseded | Order 88958800 instead | |
| 88959200 | Ferrari Compl. Inlet Tray - 88959200 | Superseded | Order 88958800 instead | |
| 89185100 | Ferrari Lower Tray - 89185100 | Superseded | Order 811335 instead | |
| 1 | 89184800 | Ferrari Air Feeder Partition - 89184800 | Superseded | Order 811335 instead |
| 1 | 811335 | Ferrari Compl. Inlet Tray - 811335 | $960.25 | Special order, ships in 7-14 days |
| 1 | 88958800 | Ferrari Compl. Inlet Tray - 88958800 | $1,132.62 | Special order, ships in 7-14 days |
| 2 | 88958900 | Ferrari Battery Carrier Plate - 88958900 | $418.56 | Special order, ships in 7-14 days |
| 2 | 802528 | Ferrari Battery Mounting Plate - 802528 | $320.06 | Special order, ships in 7-14 days |
| 3 | 89185400 | Ferrari Firewall Seal - 89185400 | $35.00 | Special order, ships in 7-14 days |
| 4 | 89185500 | Ferrari Exhaust Pipe - 89185500 | $31.99 | Special order, ships in 7-14 days |
| 5 | 13000790 | Ferrari Hose Clip 40-60cm - 13000790 | $1.44 | Available, ships in 3-6 days |
| 6 | 798993 | Ferrari Battery Tie Rod - 798993 | $51.62 | Available, ships in 3-6 days |
| 7 | 798992 | Ferrari Upper Battery Bracket - 798992 | $61.52 | Special order, ships in 7-14 days |
| 8 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 9 | 781953 | Ferrari Screw - 781953 | $2.59 | Special order, ships in 7-14 days |
| 10 | 909440 | Ferrari Complete RH Intercooler Duct - 909440 | $172.33 | Special order, ships in 7-14 days |
| 11 | 909439 | Ferrari Convogliatore Intercooler Sx - 909439 | $172.33 | Special order, ships in 7-14 days |
| 12 | 15699804 | Ferrari Screw 6X20 - 15699804 | $0.38 | Available, ships in 3-6 days |
| 13 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
