Ferrari Roma — [VEHICLE TRIM] - E.40 - FRONT BUMPER (diagram 0141)

Exploded view of the [vehicle trim] - e.40 - front bumper on the Ferrari Roma, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

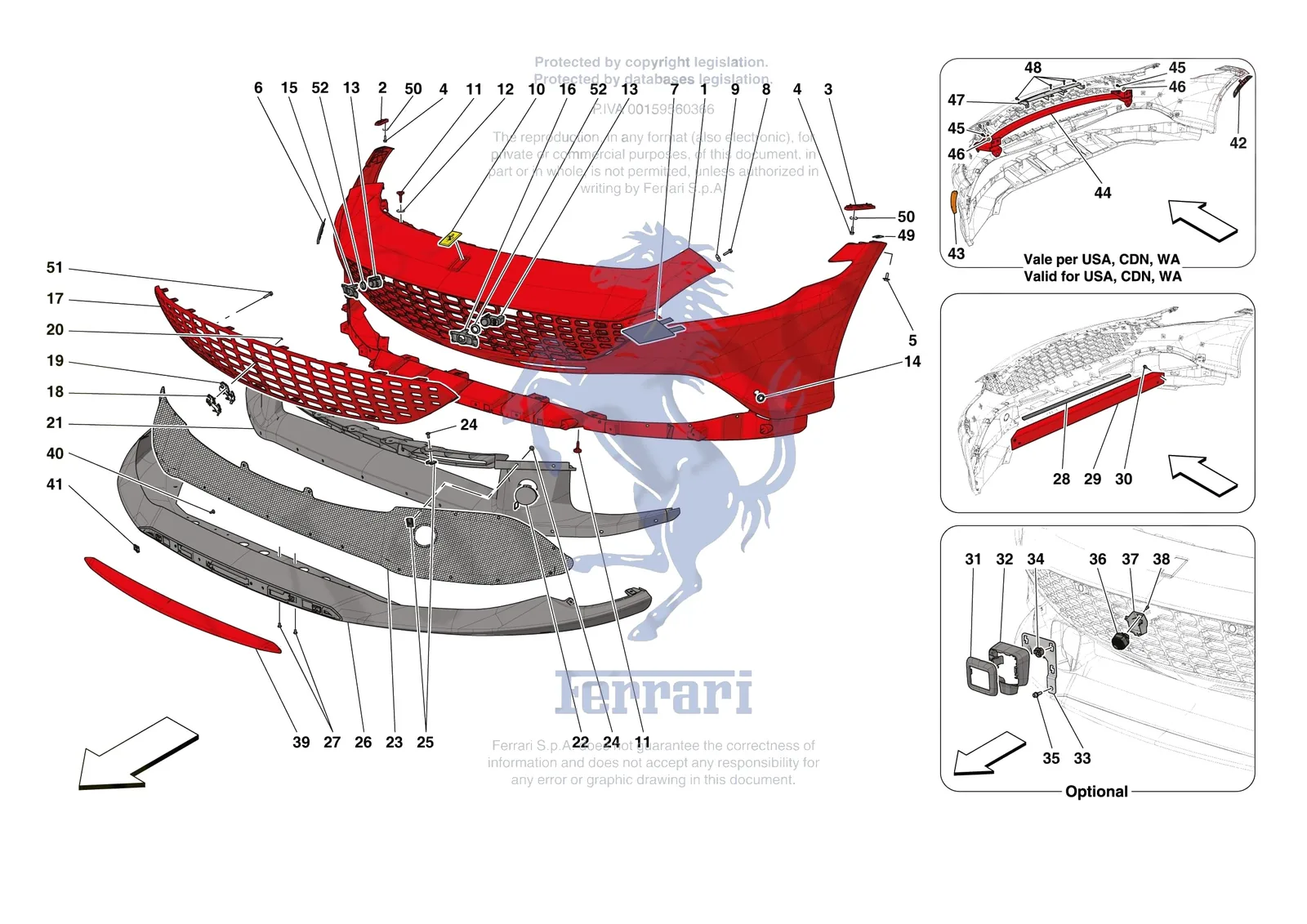

Ferrari Roma [VEHICLE TRIM] - E.40 - FRONT BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985749492Ferrari Compl. Front Bumper - 985749492$6,952.94Contact us to order
1985749494Ferrari Compl. Front Bumper - 985749494$8,636.66Contact us to order
1985809470Ferrari Compl. Front Bumper - 985809470$6,906.04Contact us to order
1985809471Ferrari Compl. Front Bumper - 985809471$8,245.04Contact us to order
1985832263Ferrari Compl. Front Bumper - 985832263$7,419.60Contact us to order
1985832264Ferrari Compl. Front Bumper - 985832264$8,758.60Contact us to order
2898566Ferrari RH Bumper Fastener Bracket - 898566$13.51Special order, ships in 7-14 days
3898583Ferrari LH Bumper Fastener Bracket - 898583$13.51Special order, ships in 7-14 days
416285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
581591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
6898558Ferrari RH Cover - 898558$130.47Special order, ships in 7-14 days
7898579Ferrari LH Cover - 898579$130.47Special order, ships in 7-14 days
816285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
961148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
912643724Ferrari/Maserati Washer - 12643724$0.20In stock
10973053Ferrari Front Emblem/Badge - 973053$368.80In stock
1065394800Ferrari Nose Emblem Badge - 65394800SupersededOrder 973053 instead
1184913100Ferrari Screw 5.6mm - 84913100$37.13Special order, ships in 7-14 days
12105864Ferrari Spacer Washer D. 6.5-24 X 1.5 - 105864$2.82Available, ships in 3-6 days
13295361Ferrari Parking Sensor - 295361$80.91In stock
1481544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
15769354Ferrari RH Parking Sensor Cover - 769354$9.81Available, ships in 3-6 days
16769344Ferrari LH Parking Sensor Cover - 769344$9.81Available, ships in 3-6 days
17934744Ferrari Front Grille - 934744$1,834.30Special order, ships in 7-14 days
17934775Ferrari Front Grille - 934775$1,917.67Special order, ships in 7-14 days
17934821Ferrari Front Grille - 934821$1,834.30Special order, ships in 7-14 days
17935052Ferrari Front Grille - 935052$1,917.67Special order, ships in 7-14 days
17985898557Ferrari Front Grille - 985898557$1,794.69Special order, ships in 7-14 days
17985906460Ferrari Front Grille - 985906460$1,794.69Special order, ships in 7-14 days
18938809Ferrari Cavallino Rampante Badge - 938809$98.46Special order, ships in 7-14 days
19898562Ferrari Prancing Horse Badge Mount - 898562$19.42Special order, ships in 7-14 days
2016101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
21898570Ferrari Central Duct Liner - 898570$1,034.12Special order, ships in 7-14 days
21910665Ferrari Central Duct Liner - 910665$344.69Special order, ships in 7-14 days
22953245Ferrari Tow Hook Cover - 953245$83.68Available, ships in 3-6 days
23972912Ferrari Central Mesh - 972912$1,875.98Special order, ships in 7-14 days
23972913Ferrari Central Mesh - 972913$2,063.59Available, ships in 3-6 days
2485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
2584583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
2670007114Ferrari Spoiler - 70007114$17,643.55Contact us to order
2670007115Ferrari SPOILER - 70007115Price on requestContact us for price and availability
26749496Ferrari Spoiler - 749496$1,748.17Special order, ships in 7-14 days
26855855Ferrari Spoiler - 855855$6,380.77Special order, ships in 7-14 days
26928254Ferrari Spoiler - 928254$5,428.68Special order, ships in 7-14 days
26964944Ferrari Spoiler - 964944$1,698.93Special order, ships in 7-14 days
28898559Ferrari Duct Liner Seal - 898559$52.50Special order, ships in 7-14 days
29939883Ferrari Compl. Bumper Lower Front Cr - 939883$270.44Special order, ships in 7-14 days
29898584Ferrari Lower Front Bumper Cross Mem - 898584$443.17Special order, ships in 7-14 days
3016287124Ferrari Flanged Bolt - 16287124$2.38Available, ships in 3-6 days
31956964Ferrari Front ADAS Cover. - 956964$23.86Available, ships in 3-6 days
32956965Ferrari Rear ADAS Cover - 956965$31.99Special order, ships in 7-14 days
33781833Ferrari Complete Radar Mounting Bracket - 781833$68.92Special order, ships in 7-14 days
34848849Ferrari Clip - 848849$5.65Special order, ships in 7-14 days
35231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
36818615Ferrari Surround Camera - 818615$1,967.03Special order, ships in 7-14 days
37898576Ferrari Camera Bracket - 898576$20.66Special order, ships in 7-14 days
3814417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
39985812518Ferrari Front Part Of Spoiler - 985812518$1,526.57Available, ships in 3-6 days
4287329600Ferrari RH Front Side Marker - 87329600$122.36Special order, ships in 7-14 days
4387329500Ferrari LH Front Side Marker - 87329500$122.36Available, ships in 3-6 days
44905027Ferrari Crosspiece - 905027$640.17Special order, ships in 7-14 days
45231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
47979167Ferrari Upper Impact Absorber Bracke - 979167$320.06Special order, ships in 7-14 days
4864830600Ferrari Screw M6 x 22 TBEI - 64830600$3.26Available, ships in 3-6 days
4987327900Ferrari Single Mounting Spacer - 87327900$3.68Special order, ships in 7-14 days
51840504Ferrari Screw 25X6 Zbc - 840504$7.86Special order, ships in 7-14 days
52770452Ferrari Silicone Ring - 770452$17.02Special order, ships in 7-14 days

All Roma diagrams
