Ferrari Roma — [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- (diagram 0154)
Exploded view of the [vehicle trim] - e.47.06 - dashboard - ducts -applicable for rhd- on the Ferrari Roma, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

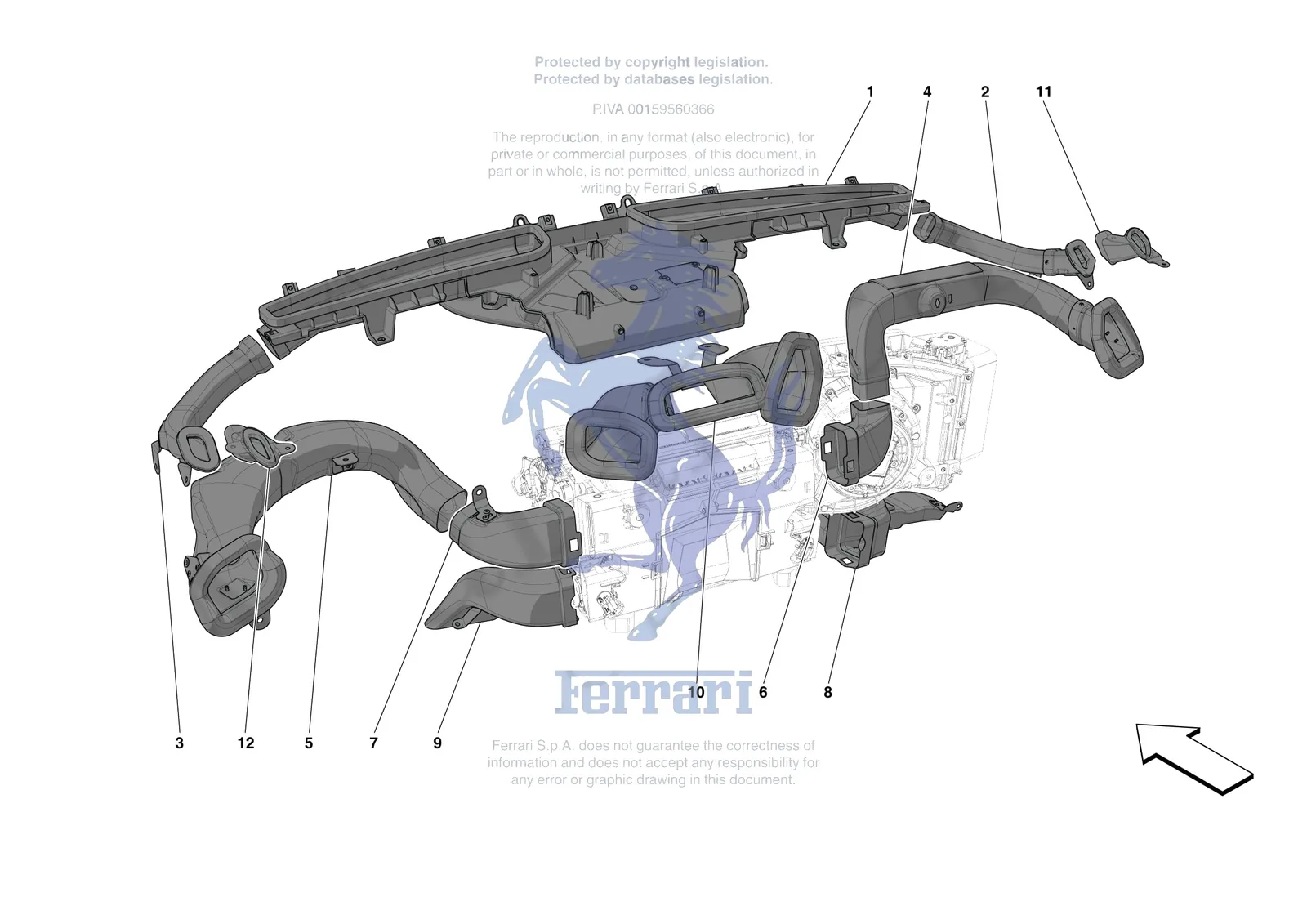

![Ferrari Roma [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0154.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 898315 | Ferrari Condotto Aria Defroster - 898315 | $443.17 | Special order, ships in 7-14 days |
| 2 | 914666 | Ferrari Driver Side Demister Duct - 914666 | $152.62 | Special order, ships in 7-14 days |
| 3 | 914555 | Ferrari Passenger Side Demister Duct - 914555 | $182.18 | Special order, ships in 7-14 days |
| 4 | 914554 | Ferrari Driver Side Air Duct - 914554 | $344.69 | Special order, ships in 7-14 days |
| 5 | 914442 | Ferrari Passenger Side Air Duct - 914442 | $320.06 | Special order, ships in 7-14 days |
| 6 | 89387600 | Ferrari Driver Side Ventilation Duct - 89387600 | $184.65 | Special order, ships in 7-14 days |
| 7 | 89388300 | Ferrari Passenger Ventilation Connec - 89388300 | $369.30 | Special order, ships in 7-14 days |
| 8 | 914553 | Ferrari Driver Side Footwell Duct - 914553 | $320.06 | Special order, ships in 7-14 days |
| 9 | 89388500 | Ferrari Passenger Side Footwell Vent - 89388500 | $270.44 | Special order, ships in 7-14 days |
| 10 | 914440 | Ferrari Centre Duct - 914440 | $320.06 | Special order, ships in 7-14 days |
| 11 | 914721 | Ferrari Demister-Driver Side Outlet - 914721 | $44.29 | Special order, ships in 7-14 days |
| 12 | 914726 | Ferrari Demister-Passenger Side Outl - 914726 | $44.29 | Special order, ships in 7-14 days |
