Ferrari Roma — [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

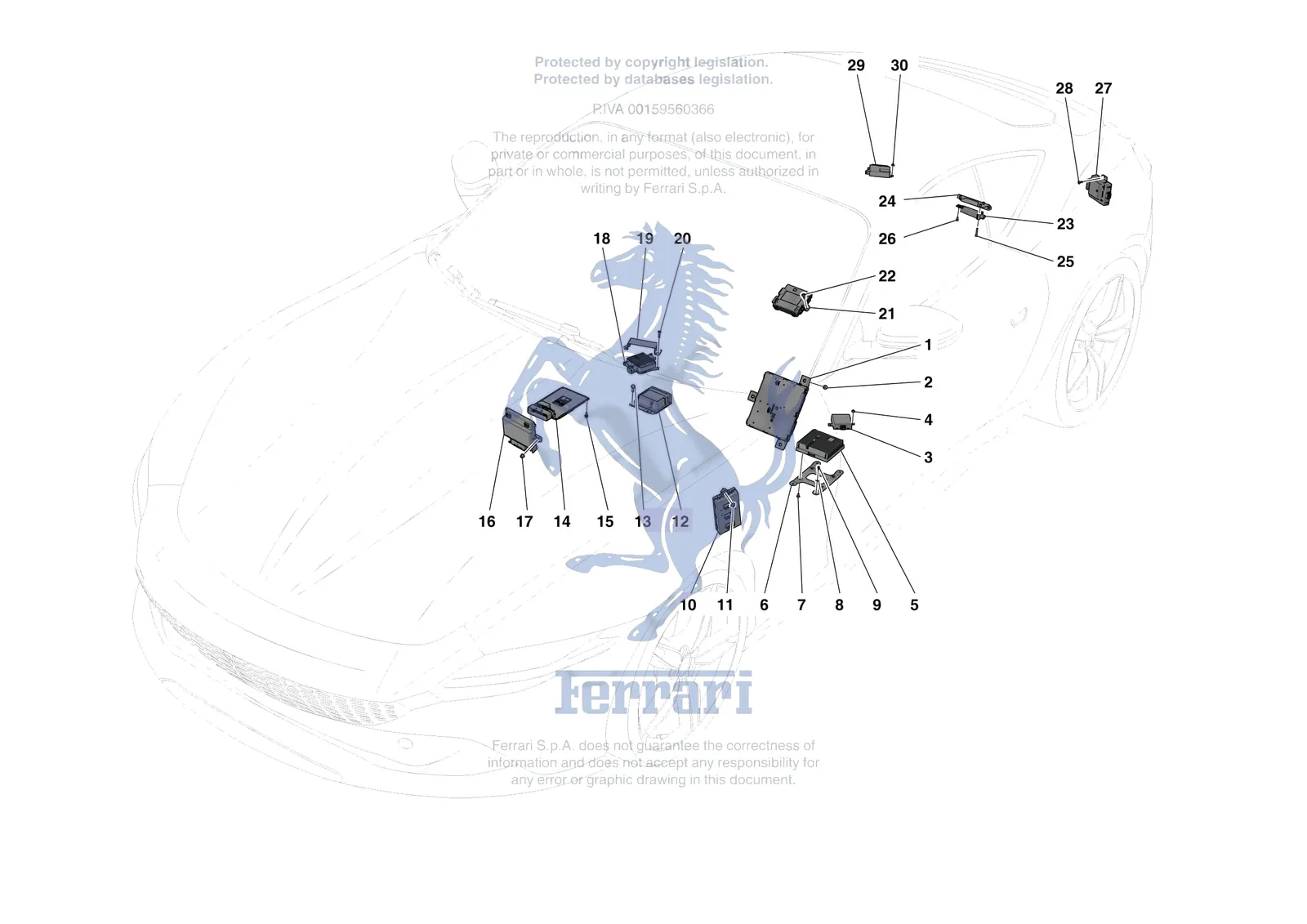

Exploded view of the [electrical system] - f.6 - electrical system control units on the Ferrari Roma, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0181.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 294559 | Ferrari PWM Command Signal For Fuel - 294559 | Superseded | Order 849386 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 916484 | Ferrari Body Computer F169 L10 Dpi S - 916484 | $1,346.25 | Special order, ships in 7-14 days |
| 2 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 3 | 829517 | Ferrari Matrix Headlamp ECU - 829517 | $491.74 | Special order, ships in 7-14 days |
| 4 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 5 | 912726 | Ferrari ESE ECU - 912726 | $1,649.69 | Special order, ships in 7-14 days |
| 6 | 927790 | Ferrari ESE ECU Bracket - 927790 | $59.07 | Special order, ships in 7-14 days |
| 7 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 8 | 12642801 | Ferrari Washer - 12642801 | $0.19 | Available, ships in 3-6 days |
| 9 | 14303024 | Ferrari Allen Screw M4 x 12 TCEI - 14303024 | $1.63 | Available, ships in 3-6 days |
| 10 | 853201 | Ferrari HVAC ECU - F169 Serie Hw 1.51 - 853201 | $1,835.80 | Special order, ships in 7-14 days |
| 11 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 12 | 939213 | Ferrari Airbag Ecu - 939213 | $979.09 | Special order, ships in 7-14 days |
| 12 | 968385 | Ferrari Airbag ECU - 968385 | $979.09 | Special order, ships in 7-14 days |
| 13 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 14 | 853167 | Ferrari Magneride ECU - F169 - 853167 | $1,860.28 | Special order, ships in 7-14 days |
| 15 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 16 | 264097 | Ferrari Voltage Stabilizer - 264097 | $969.98 | In stock |
| 17 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 18 | 849386 | Ferrari PWM Command Signal for Fuel Pumps - 849386 | $688.45 | Special order, ships in 7-14 days |
| 19 | 815770 | Ferrari PWM ECU Shield Bracket - 815770 | $31.99 | Special order, ships in 7-14 days |
| 20 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
| 21 | 940464 | Ferrari Peps Ecu - 940464 | $689.41 | Special order, ships in 7-14 days |
| 21 | 853200 | Ferrari PEPS ECU - F169 - 853200 | $689.41 | Special order, ships in 7-14 days |
| 22 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 23 | 314815 | Ferrari Tpms ECU Antenna - 314815 | $983.50 | Special order, ships in 7-14 days |
| 23 | 314817 | Ferrari Tpms ECU Antenna - 314817 | $983.50 | Special order, ships in 7-14 days |
| 24 | 927849 | Ferrari TPMS Antenna/ECU Bracket - 927849 | $85.64 | Special order, ships in 7-14 days |
| 24 | 789805 | Ferrari Tpms Bracket - 789805 | $96.01 | Special order, ships in 7-14 days |
| 25 | 14358721 | Ferrari Screw 5x35 - 14358721 | $2.13 | Special order, ships in 7-14 days |
| 26 | 14304124 | Ferrari Screw TCEI M5 x 12 - 14304124 | $0.31 | Special order, ships in 7-14 days |
| 27 | 970812 | Ferrari Rear Mobile Spoiler Node ECU - 970812 | $861.77 | Special order, ships in 7-14 days |
| 28 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 29 | 853202 | Ferrari Centralina Park. Sens. F169 - 853202 | $393.93 | Special order, ships in 7-14 days |
| 30 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
