Ferrari Roma — [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM (diagram 0183)

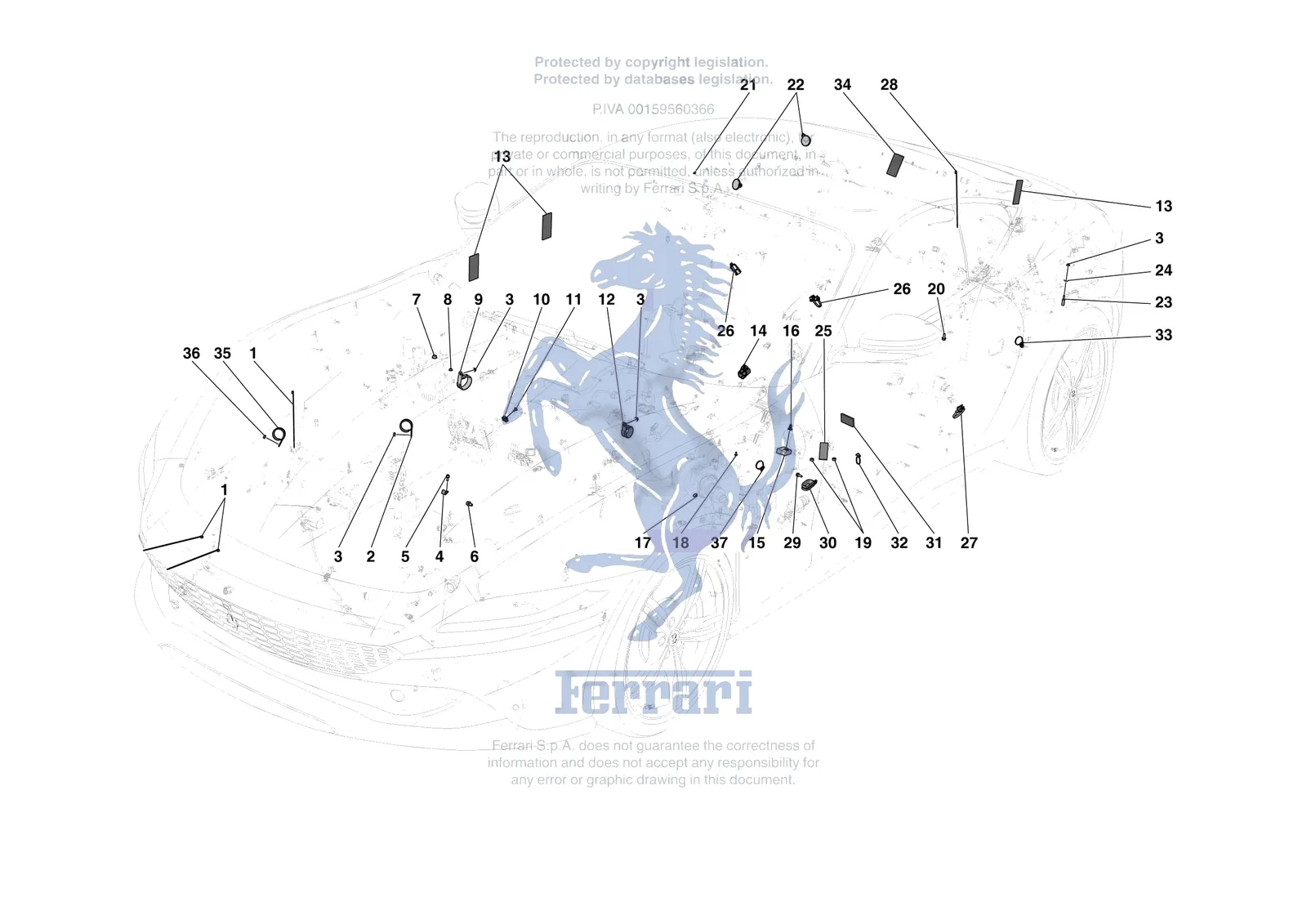

Exploded view of the [electrical system] - f.8 - various fastenings for the electrical system on the Ferrari Roma, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0183.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days | |
| 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead | |
| 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 16286227 | Ferrari Screw - 16286227 | Superseded | Order 16286027 instead | |
| 1 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 2 | 175119 | Ferrari Bracket With Sheath - 175119 | $11.29 | Special order, ships in 7-14 days |
| 3 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 4 | 10418601 | Ferrari Clamp 14mm - 10418601 | $1.86 | Available, ships in 3-6 days |
| 5 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 6 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
| 7 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 8 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 9 | 287686 | Ferrari Bracket With Sheath - 287686 | $90.95 | Special order, ships in 7-14 days |
| 10 | 68700800 | Ferrari CLIP - 68700800 | $1.92 | Available, ships in 3-6 days |
| 11 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 12 | 809079 | Ferrari Bracket - 809079 | $16.45 | Special order, ships in 7-14 days |
| 12 | 10448890 | Ferrari Bracket With Sheath - 10448890 | $4.16 | Available, ships in 3-6 days |
| 13 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
| 14 | 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days |
| 15 | 85159800 | Ferrari CONNECTOR - 85159800 | $34.40 | Special order, ships in 7-14 days |
| 16 | 84487000 | Ferrari CLIP - 84487000 | $6.96 | Special order, ships in 7-14 days |
| 17 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 18 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 19 | 179318 | Ferrari Aluminium Spacer For Rad Fan - 179318 | $4.56 | Special order, ships in 7-14 days |
| 20 | 16287127 | Ferrari Screw 8x20 - 16287127 | $0.92 | Special order, ships in 7-14 days |
| 21 | 11673111 | Ferrari Nut - 11673111 | $0.52 | Available, ships in 3-6 days |
| 21 | 14084111 | Ferrari Nut - 14084111 | Superseded | Order 11673111 instead |
| 22 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 23 | 178772 | Ferrari Stud - 178772 | $16.45 | Special order, ships in 7-14 days |
| 24 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 25 | 142798 | Ferrari Rubber Shim - 142798 | $2.82 | Available, ships in 3-6 days |
| 26 | 279762 | Ferrari Clamp - 279762 | $0.98 | Special order, ships in 7-14 days |
| 27 | 242384 | Ferrari Clip - 242384 | $0.59 | Available, ships in 3-6 days |
| 27 | 255869 | Ferrari Clip - 255869 | $3.91 | Special order, ships in 7-14 days |
| 29 | 16286027 | Ferrari Screw 6x16 - 16286027 | $1.02 | Available, ships in 3-6 days |
| 30 | 61712500 | Ferrari P Clip Bracket - 61712500 | $2.29 | In stock |
| 31 | 84706800 | Ferrari Adhesive Foam Rubber - 84706800 | $1.48 | Special order, ships in 7-14 days |
| 32 | 338181 | Ferrari Retaining Clip - 338181 | $0.17 | Special order, ships in 7-14 days |
| 33 | 69708300 | Ferrari Clip - 69708300 | $2.59 | Available, ships in 3-6 days |
| 35 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 36 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 37 | 145855 | Ferrari Clamp 208mm - 145855 | $0.98 | Special order, ships in 7-14 days |
