Ferrari Roma — [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS (diagram 0184)

Exploded view of the [electrical system] - f.9 - lighting systems on the Ferrari Roma, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

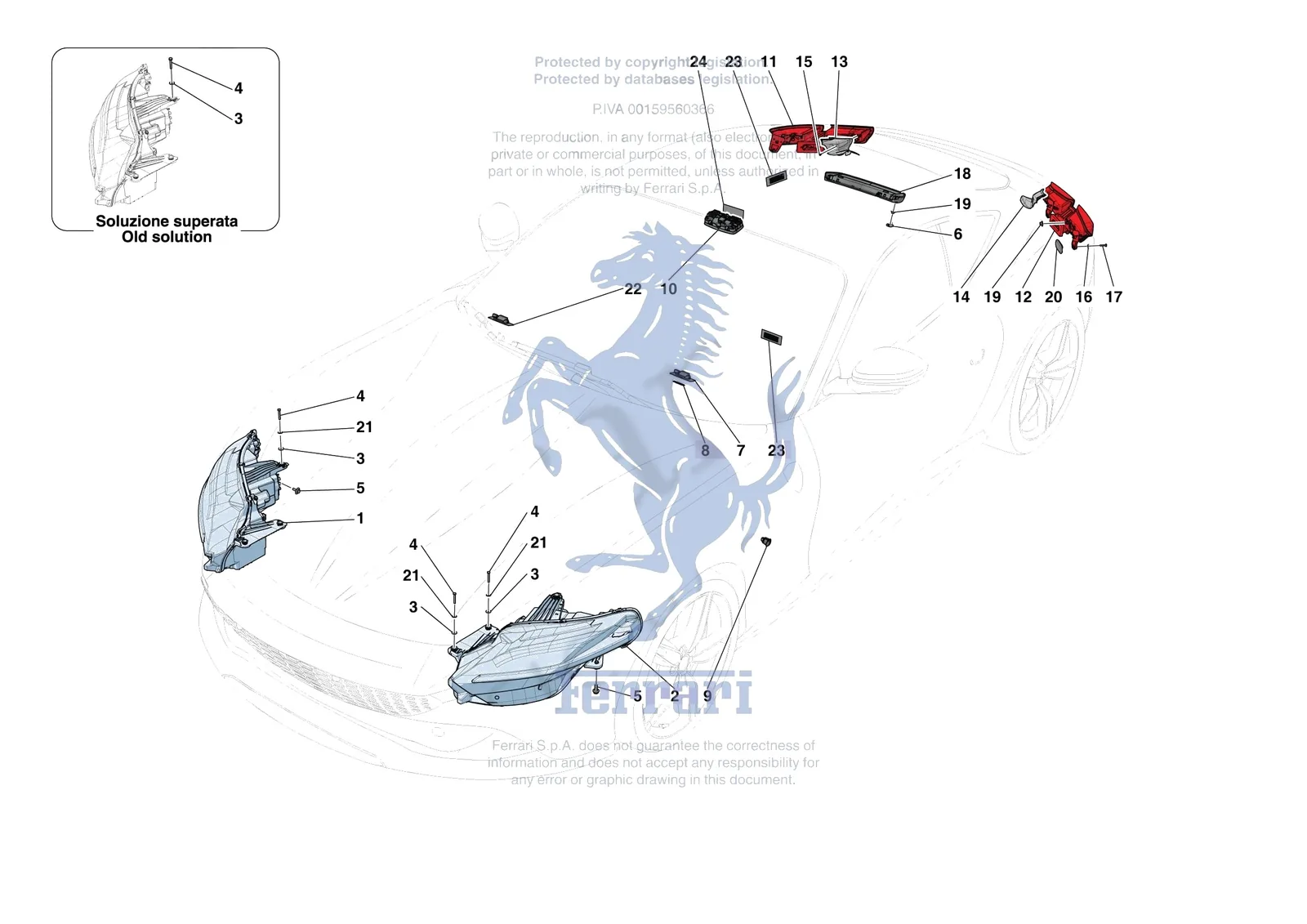

Ferrari Roma [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
10903221Ferrari Bolt - 10903221SupersededOrder 10903224 instead
748857Ferrari Luggage Compartment Light - 748857SupersededOrder 974896 instead
911486Ferrari Luggage Compartment Light - 911486SupersededOrder 974896 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1934862Ferrari Proiettore Dx Base - 934862$6,217.90Special order, ships in 7-14 days
1918251Ferrari RH Headlamp - 918251$6,520.15Special order, ships in 7-14 days
1940765Ferrari RH Headlamp - 940765$6,520.15Special order, ships in 7-14 days
1940767Ferrari RH Headlamp - 940767$6,217.90Special order, ships in 7-14 days
1940769Ferrari RH Headlamp - 940769$6,520.15Special order, ships in 7-14 days
1904370Ferrari RH Headlamp - LHD Adaptive Headlamps - 904370$6,520.15Special order, ships in 7-14 days
2918250Ferrari LH Headlamp - 918250$6,520.15Special order, ships in 7-14 days
2940760Ferrari LH Headlamp - 940760$6,520.15Special order, ships in 7-14 days
2940766Ferrari LH Headlamp - 940766$6,217.90Special order, ships in 7-14 days
2940768Ferrari LH Headlamp - 940768$6,520.15Special order, ships in 7-14 days
2904368Ferrari LH Headlamp - LHD Adaptive Headlamps - 904368$6,520.15Special order, ships in 7-14 days
2934859Ferrari Proiettore Sx Base - 934859$6,217.90Special order, ships in 7-14 days
312646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
411628524Ferrari Screw 6X40 - 11628524$2.59Special order, ships in 7-14 days
410903224Ferrari Screw M6 x 40 - 10903224$0.50Available, ships in 3-6 days
581290900Ferrari Screw With Double Washer - 81290900$1.42In stock
6939987Ferrari Third Stop Light Trim Cap - 939987$12.04Special order, ships in 7-14 days
7318013Ferrari Light Unit - 318013$61.45Special order, ships in 7-14 days
8958959Ferrari Piastra Plafoniera Wirelessc - 958959$4.91Special order, ships in 7-14 days
9317211Ferrari Lateral Turn Indicator - 317211$159.79Special order, ships in 7-14 days
10744262Ferrari Plafoniera Padiglione - 744262$1,770.31Special order, ships in 7-14 days
11917269Ferrari RH Tail Light - 917269$1,422.61Special order, ships in 7-14 days
11919258Ferrari RH Tail Light - 919258$1,466.38Special order, ships in 7-14 days
12917268Ferrari Fanale Sx Ava - 917268$1,422.61Special order, ships in 7-14 days
12919257Ferrari LH Tail Light - 919257$1,466.38Special order, ships in 7-14 days
13977681Ferrari Complete RH Taillight Surround - 977681$100.93Available, ships in 3-6 days
14977676Ferrari Complete LH Taillight Surround - 977676$100.93Special order, ships in 7-14 days
15986200Ferrari Torx Screw - 986200$0.44Special order, ships in 7-14 days
1613577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
1785834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
18916508Ferrari Terzo Stop F169 Ava - 916508$437.71Special order, ships in 7-14 days
1914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
20276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days
20815687Ferrari Tappo Otturazione Asola - 815687$13.32Special order, ships in 7-14 days
2112601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
23974896Ferrari Luggage Compartment Light - 974896$98.32Special order, ships in 7-14 days
24179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days

All Roma diagrams
