Ferrari Roma — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari Roma, with 110 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

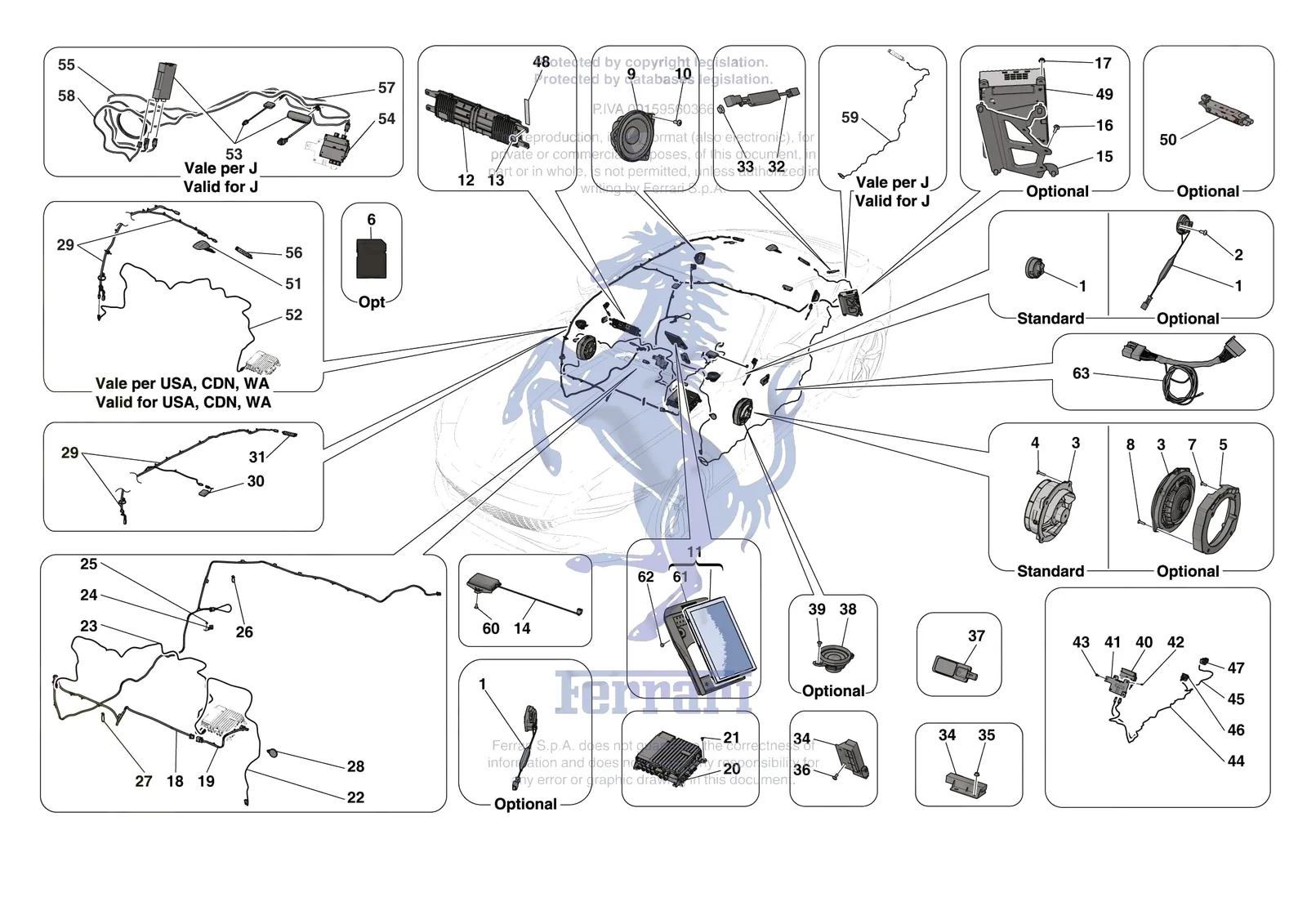

Ferrari Roma [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
263423Ferrari Negative Filter - 263423$95.43Special order, ships in 7-14 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
10558628Ferrari Screw - 10558628SupersededOrder 66207700 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
1321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
215903801Ferrari Screw - 15903801SupersededOrder 15903870 instead
3328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
3334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
485834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
5260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
5260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
670006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
785833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
885692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
9253861Ferrari Twiddler - 253861$415.82Special order, ships in 7-14 days
1085833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
1155051845Ferrari Compl. Centre Display Cover - 55051845$11,169.27Special order, ships in 7-14 days
1155051847Ferrari Compl. Centre Display Cover - 55051847$13,629.20Special order, ships in 7-14 days
1155051848Ferrari Compl. Centre Display Cover - 55051848$14,391.32Special order, ships in 7-14 days
1155051849Ferrari Compl. Centre Display Cover - 55051849$11,169.27Special order, ships in 7-14 days
11961443Ferrari Compl. Centre Display Cover - 961443$10,765.93Special order, ships in 7-14 days
11961444Ferrari Compl. Centre Display Cover - 961444SupersededOrder 55051847 instead
11961445Ferrari Compl. Centre Display Cover - 961445SupersededOrder 55051848 instead
11961446Ferrari Compl. Centre Display Cover - 961446$11,392.05Special order, ships in 7-14 days
12866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
1314039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
14935814Ferrari Passive Start Antenna - 935814$126.73Special order, ships in 7-14 days
14925991Ferrari Passive Start Antenna RF Gen - 925991$126.73Available, ships in 3-6 days
15918437Ferrari Amplifier Bracket - 918437$137.87Special order, ships in 7-14 days
1611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
1713046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
18914895Ferrari Cavo Fibra Ottica Abit. F169 - 914895$714.03Special order, ships in 7-14 days
18939279Ferrari Passenger Compartment Fibre - 939279$787.90Special order, ships in 7-14 days
19914896Ferrari Dashboard Fibre Optic Cable - 914896$132.94Special order, ships in 7-14 days
20770560Ferrari Nit - 770560Price on requestContact us for price and availability
20868501Ferrari Nit - 868501$13,185.99Contact us to order
20947970Ferrari Nit - 947970$13,148.46Contact us to order
20947971Ferrari Nit - 947971$13,148.46Contact us to order
20947972Ferrari Nit - 947972$13,148.46Contact us to order
20947973Ferrari Nit - 947973$14,703.21Contact us to order
20947974Ferrari Nit - 947974$13,148.46Contact us to order
20947975Ferrari Nit - 947975$14,986.96Contact us to order
20976326Ferrari Nit - 976326$17,062.29Contact us to order
20856061Ferrari Nit Korea F169 Sample D2 - 856061SupersededOrder 947974 instead
20868505Ferrari Nit Korea F169 Sample D2 - 868505SupersededOrder 947974 instead
20770555Ferrari Nit Row - 770555SupersededOrder 947972 instead
20868503Ferrari Nit Row - 868503SupersededOrder 947972 instead
20868504Ferrari Nit Row - 868504$14,740.74Contact us to order
20868506Ferrari Nit Row - 868506SupersededOrder 947975 instead
20968940Ferrari Nit Row - 968940Price on requestContact us for price and availability
20968981Ferrari Nit Row - 968981SupersededOrder 947975 instead
20868499Ferrari Nit Row F169 Sample D2 - 868499SupersededOrder 947970 instead
20960909Ferrari Nit Row F169 Sample D2 - 960909SupersededOrder 947970 instead
2188822200Ferrari Screw 4 x 10 - 88822200$1.30Special order, ships in 7-14 days
22783018Ferrari Dashboard DAB Antenna Cable - 783018$137.87Special order, ships in 7-14 days
22877188Ferrari Dashboard Wiring Loom DAB1 F169 Pt - 877188$108.31Special order, ships in 7-14 days
23921244Ferrari Dashboard Cable Dab2 - 921244$130.47Special order, ships in 7-14 days
23877187Ferrari Dashboard Wiring Loom DAB2 F169 Pt - 877187$120.62Special order, ships in 7-14 days
24756963Ferrari Fibre Optic Cable Mounting Bracket - 756963$19.42Special order, ships in 7-14 days
2513046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
26338181Ferrari Retaining Clip - 338181$0.17Special order, ships in 7-14 days
27338182Ferrari Ring Clamp - 338182$0.17Special order, ships in 7-14 days
28217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
29914754Ferrari Cavo Antenna Gps/Fm2 F169 Av - 914754$369.30Special order, ships in 7-14 days
29914750Ferrari Cavo Antenna Gps/Fm2/Dab2 F1 - 914750$443.17Special order, ships in 7-14 days
29953895Ferrari Gps/Fm2 Antenna Cable - 953895$418.56Special order, ships in 7-14 days
29914749Ferrari Sdars/Gps/Fm2 Antenna Cable - 914749$492.43Special order, ships in 7-14 days
30789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
31771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
31771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
32263421Ferrari Positive Filter - 263421$117.99Special order, ships in 7-14 days
3314059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
34310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
3514059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
3665752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
37969204Ferrari Antenna Bt-Wifi Dual Band - 969204$96.14Special order, ships in 7-14 days
38324658Ferrari Midrange - 324658$306.38Special order, ships in 7-14 days
3985692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
40875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
41940778Ferrari USB - Hub Splitter Bracket - 940778$78.76Special order, ships in 7-14 days
4214303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
4316281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
44877191Ferrari Cavo Usb Splitter-Presa Base - 877191$517.04Special order, ships in 7-14 days
45877192Ferrari Cavo Usb Splitter-Carplay - 877192$590.91Special order, ships in 7-14 days
46303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
47848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
49939096Ferrari 12 Channel Amplifier - 939096$8,123.11Special order, ships in 7-14 days
50882759Ferrari Ampli Am/Fm2/Dab2 New Gen Co - 882759$368.79Special order, ships in 7-14 days
51326887Ferrari SDARS/GNSS COMBO ANTENNA - 326887Price on requestContact us for price and availability
52877176Ferrari Dashboard Sdars Cable - 877176$123.09Special order, ships in 7-14 days
53928349Ferrari Compl. Drsc-Vics Kit - 928349$14,542.12Special order, ships in 7-14 days
54951766Ferrari 4-Way Usb Hub For Dsrc Jrc - 951766$1,598.19Special order, ships in 7-14 days
55960901Ferrari Dsrc/Hub Cable - 960901$140.32Special order, ships in 7-14 days
56331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
57958191Ferrari Dsrc 5.8Ghz Advance Antenna - 958191$181.93Special order, ships in 7-14 days
58960902Ferrari Dsrc Beacon Antenna Cable - 960902$83.68Special order, ships in 7-14 days
59962974Ferrari Passenger Compartment Am/Fm - 962974$211.73Special order, ships in 7-14 days
6066207700Ferrari Allen Head Screw 5x15 - 66207700$4.56Special order, ships in 7-14 days
61898228Ferrari Compl. Centre Display Cover - 898228$1,501.96Special order, ships in 7-14 days
61927905Ferrari Compl. Centre Display Cover - 927905$3,060.22Special order, ships in 7-14 days
61927949Ferrari Compl. Centre Display Cover - 927949$3,794.22Special order, ships in 7-14 days
62309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
63898312Ferrari NIT Wiring Harness - 898312$3,156.37Special order, ships in 7-14 days
