Ferrari SF90 Spider — [ENGINE] - B.03 - ENGINE COVERS (diagram 0006)

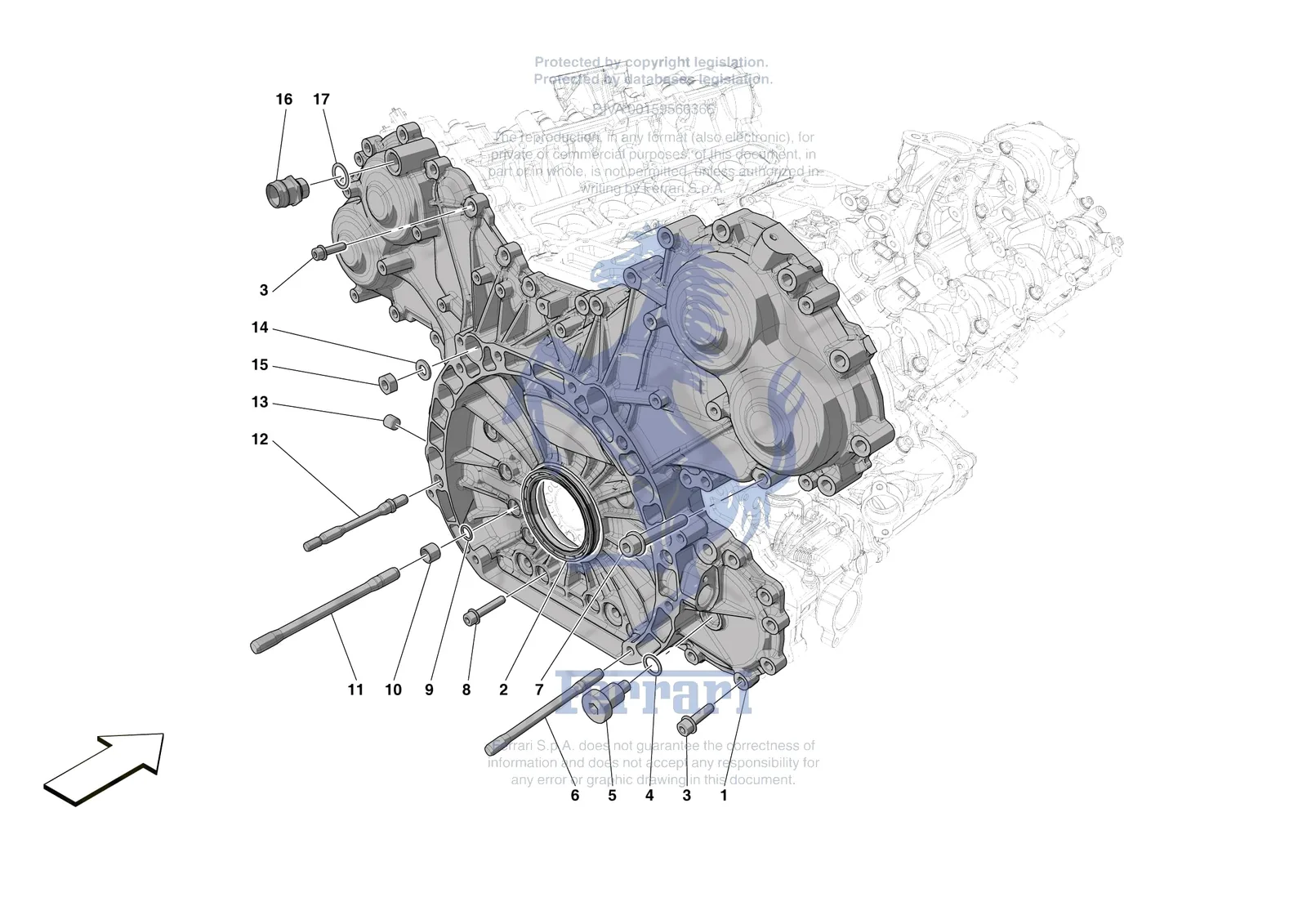

Exploded view of the [engine] - b.03 - engine covers on the Ferrari SF90 Spider, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ENGINE] - B.03 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14306824 | Ferrari Bolt M8 x 45 TCEI - 14306824 | $1.04 | Available, ships in 3-6 days | |
| 242269 | Ferrari Rear Main Oil Seal - 242269 | $104.41 | Available, ships in 3-6 days | |
| 1 | 904256 | Ferrari Coperchio Posteriore Distrib - 904256 | Superseded | Order 969713 instead |
| 1 | 969713 | Ferrari Coperchio Posteriore Distrib - 969713 | $2,710.81 | Special order, ships in 7-14 days |
| 2 | 240214 | Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214 | Superseded | Order 242269 instead |
| 3 | 231629 | Ferrari Allen Screw M8 x 30 TCEI - 231629 | $1.15 | Available, ships in 3-6 days |
| 4 | 302618 | Ferrari Gasket - 302618 | $2.38 | Available, ships in 3-6 days |
| 5 | 307936 | Ferrari Cover - 307936 | $34.44 | Special order, ships in 7-14 days |
| 6 | 872074 | Ferrari Prigioniero M10X1.25 Gambo M - 872074 | $37.18 | Special order, ships in 7-14 days |
| 7 | 285494 | Ferrari Screw 8x50 - 285494 | $1.99 | Available, ships in 3-6 days |
| 8 | 265097 | Ferrari Screw 8X40 - 265097 | $14.84 | Special order, ships in 7-14 days |
| 9 | 134705 | Ferrari O-Ring - 134705 | $0.76 | In stock |
| 10 | 873065 | Ferrari Bushing D13.5 - 10.5 x 9.8 - 873065 | $16.18 | Special order, ships in 7-14 days |
| 11 | 872963 | Ferrari Prigioniero M10X1.25 Gambo M - 872963 | $43.74 | Special order, ships in 7-14 days |
| 12 | 872073 | Ferrari Prigioniero M11X1.5 Gambo Mj - 872073 | $120.35 | Special order, ships in 7-14 days |
| 13 | 235754 | Ferrari Threaded Plug - 235754 | $12.77 | Available, ships in 3-6 days |
| 14 | 178348 | Ferrari Washer - 178348 | $1.40 | Available, ships in 3-6 days |
| 15 | 133988 | Ferrari Plain Nut M10 x 1.25 x 8 - 133988 | $0.38 | Available, ships in 3-6 days |
| 16 | 309101 | Ferrari Connector - 309101 | $34.44 | Special order, ships in 7-14 days |
| 17 | 10263160 | Ferrari Washer D. 18-24 x 1 - 10263160 | $0.54 | Available, ships in 3-6 days |
