Ferrari SF90 Spider — [ENGINE] - B.04 - CRANKSHAFT (diagram 0007)

Exploded view of the [engine] - b.04 - crankshaft on the Ferrari SF90 Spider, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

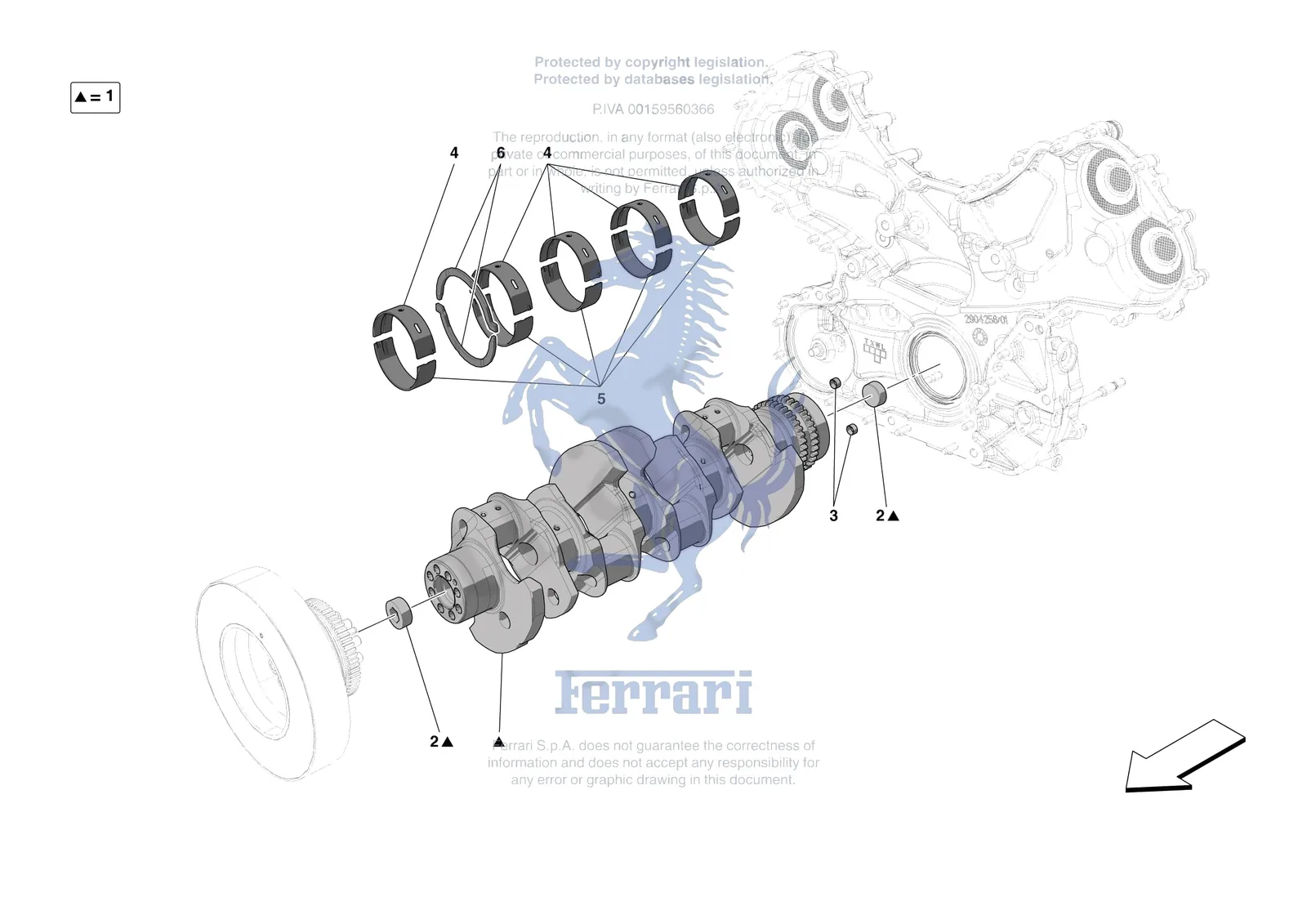

Ferrari SF90 Spider [ENGINE] - B.04 - CRANKSHAFT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1826741Ferrari Crankshaft A180 C. 82 Cp - 826741$2,128.72Special order, ships in 7-14 days
2176396Ferrari Threaded Plug D. 28 x 1.5 - 176396$10.42Available, ships in 3-6 days
3336724Ferrari Grano Centraggio D.11.5X5 - 336724$5.23Special order, ships in 7-14 days
4271406Ferrari Upper Half Main Bearing - 271406$64.00Available, ships in 3-6 days
4271408Ferrari Upper Half Main Bearing - 271408$64.00Special order, ships in 7-14 days
4271409Ferrari Upper Half Main Bearing - 271409$59.07Available, ships in 3-6 days
4309242Ferrari Upper Half Main Bearing - 309242$44.29Special order, ships in 7-14 days
4309243Ferrari Upper Half Main Bearing - 309243$44.29Available, ships in 3-6 days
5271412Ferrari Lower Half Main Bearing - 271412$61.52Available, ships in 3-6 days
5271413Ferrari Lower Half Main Bearing - 271413$61.52Special order, ships in 7-14 days
5271414Ferrari Lower Half Main Bearing - 271414$56.60Available, ships in 3-6 days
5309244Ferrari Lower Half Main Bearing - 309244$41.82Special order, ships in 7-14 days
5309245Ferrari Lower Half Main Bearing - 309245$44.29Special order, ships in 7-14 days
6271589Ferrari Crankshaft Bearing Shim - 271589$24.07Available, ships in 3-6 days

All SF90 Spider diagrams
