Ferrari SF90 Spider — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)

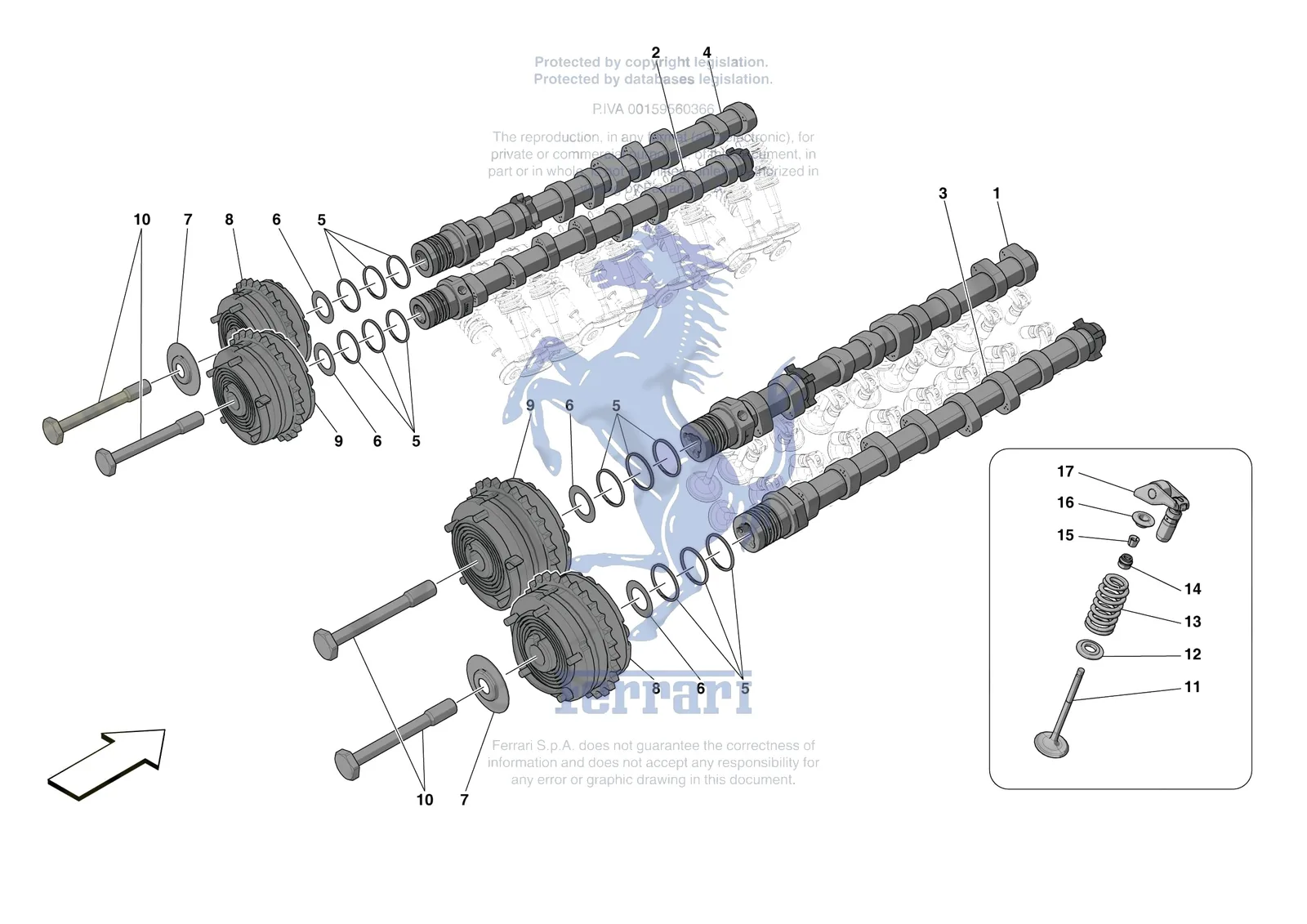

Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari SF90 Spider, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 767071 | Ferrari Valvola Di Aspirazione - 767071 | Superseded | Order 960124 instead | |
| 767004 | Ferrari Valvola Di Scarico - 767004 | Superseded | Order 960123 instead | |
| 1 | 819432 | Ferrari RH Intake Camshaft - 819432 | $519.78 | Special order, ships in 7-14 days |
| 2 | 819433 | Ferrari LH Intake Camshaft - 819433 | $519.78 | Special order, ships in 7-14 days |
| 3 | 819434 | Ferrari RH Exhaust Camshaft - 819434 | $519.78 | Special order, ships in 7-14 days |
| 4 | 819435 | Ferrari LH Exhaust Camshaft - 819435 | $519.78 | Special order, ships in 7-14 days |
| 5 | 246965 | Ferrari Seal Ring - 246965 | $18.42 | Available, ships in 3-6 days |
| 6 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 7 | 296310 | Ferrari Spacer - 296310 | $36.86 | Special order, ships in 7-14 days |
| 8 | 295300 | Ferrari Variable Valve Timing Adjust - 295300 | $886.38 | Special order, ships in 7-14 days |
| 9 | 279099 | Ferrari Variable Valve Timing Adjust - 279099 | $935.64 | Special order, ships in 7-14 days |
| 10 | 287708 | Ferrari Cam Gear Bolt - 287708 | $27.80 | In stock |
| 11 | 960124 | Ferrari Valvola Di Aspirazione - 960124 | $64.00 | Special order, ships in 7-14 days |
| 11 | 960123 | Ferrari Valvola Di Scarico - 960123 | $128.01 | Special order, ships in 7-14 days |
| 12 | 287551 | Ferrari Lower Exhaust Valve Spring Cap - 287551 | $5.88 | Special order, ships in 7-14 days |
| 12 | 287553 | Ferrari Lower Intake Valve Spring Cap - 287553 | $6.32 | Special order, ships in 7-14 days |
| 12 | 925693 | Ferrari Lower Valve Spring Cap - 925693 | $19.65 | Special order, ships in 7-14 days |
| 13 | 821149 | Ferrari Valve Return Spring - 821149 | $31.93 | Special order, ships in 7-14 days |
| 13 | 960230 | Ferrari Valve Return Spring - 960230 | $34.44 | Special order, ships in 7-14 days |
| 14 | 221473 | Ferrari Valve Stem Seal - 221473 | $2.22 | In stock |
| 15 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 16 | 313581 | Ferrari Upper Valve Spring Cap - 313581 | $14.99 | Special order, ships in 7-14 days |
| 17 | 816232 | Ferrari Compl. Finger-Tappet - 816232 | $73.85 | Special order, ships in 7-14 days |
| 17 | 840556 | Ferrari Compl. Finger-Tappet - 840556 | $78.76 | Special order, ships in 7-14 days |
