Ferrari SF90 Spider — [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES (diagram 0025)

Exploded view of the [engine] - b.20 - emissions control system pipes and valves on the Ferrari SF90 Spider, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

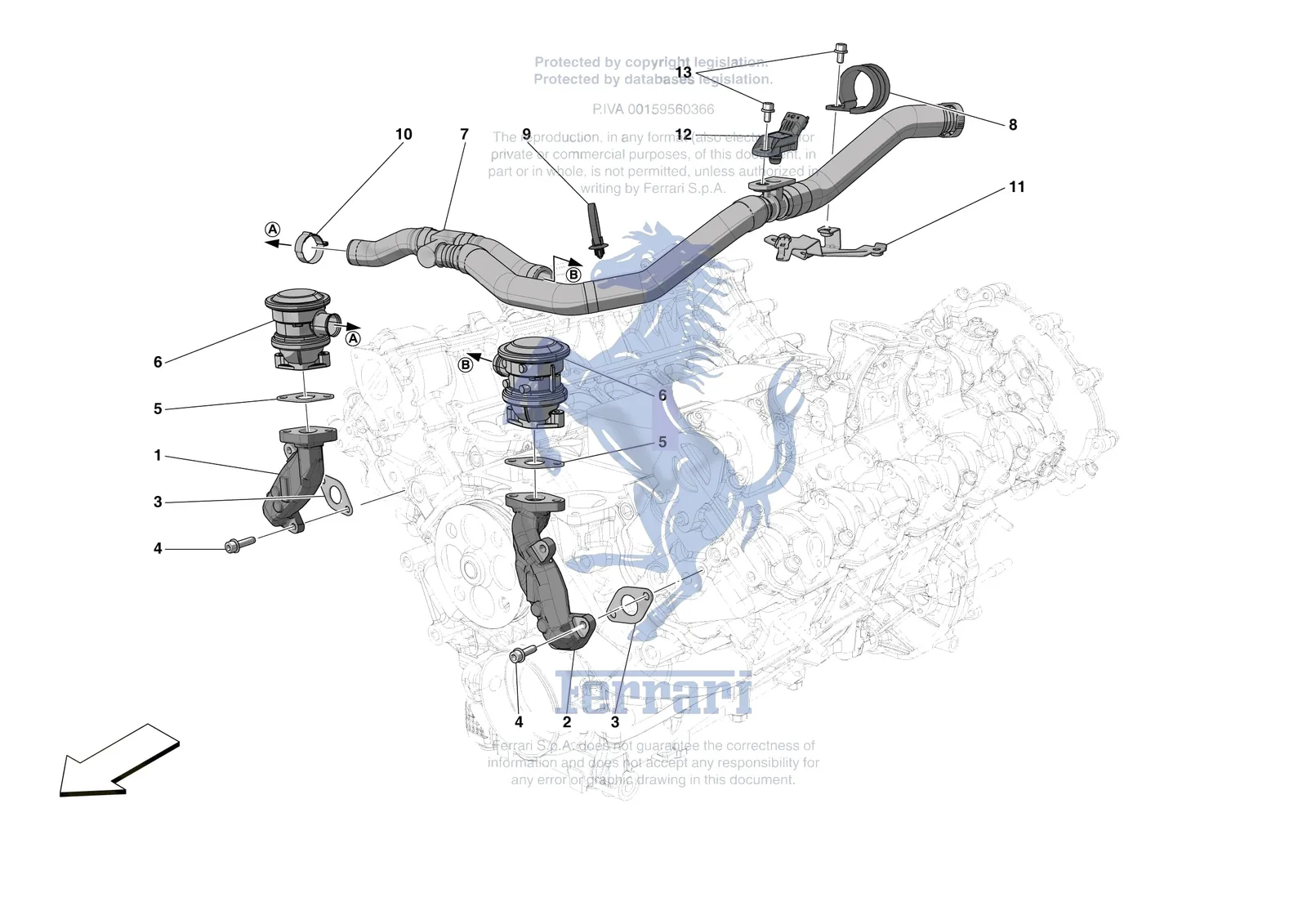

Ferrari SF90 Spider [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1781217Ferrari Supp. Valvola Aria Second. D - 781217$270.83Special order, ships in 7-14 days
2815965Ferrari Supp. Valvola Aria Second. S - 815965$270.83Special order, ships in 7-14 days
3186781Ferrari/Maserati Secondary Air Gasket - 186781$6.05In stock
4231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
5781376Ferrari Gasket - 781376$6.32Special order, ships in 7-14 days
6284235Ferrari Secondary Air System Valve - 284235$417.97Available, ships in 3-6 days
7791847Ferrari Tubo Aria Second Da Pompa A - 791847$492.43Special order, ships in 7-14 days
810442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
9217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
1013128970Ferrari Collar D.25.5B - 13128970$3.26Special order, ships in 7-14 days
11916364Ferrari Bracket - Secondary Air System Pipe - 916364$78.76Special order, ships in 7-14 days
11979219Ferrari Bracket - Secondary Air System Pipe - 979219$91.08Special order, ships in 7-14 days
12282849Ferrari Pressure Sensor - 282849$61.16Special order, ships in 7-14 days
13233600Ferrari/Maserati Screw - 233600$1.98In stock

All SF90 Spider diagrams
