Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS (diagram 0053)

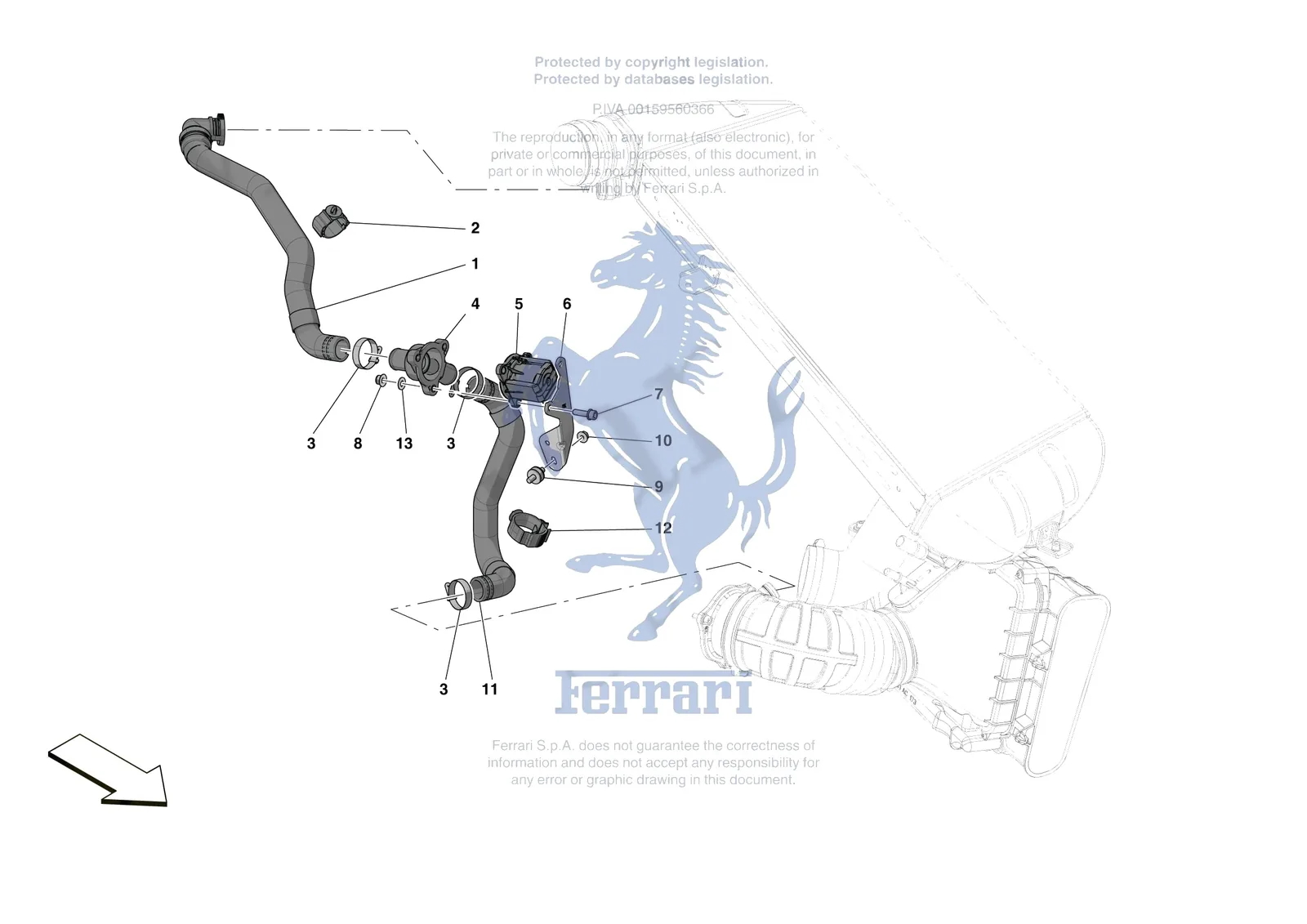

Exploded view of the [mechanical system] - d.05 - turbocharging system adjustments on the Ferrari SF90 Spider, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0053.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 890656 | Ferrari Tubo Da Alta Press A Dv Dx - 890656 | $174.80 | Special order, ships in 7-14 days |
| 1 | 890655 | Ferrari Tubo Da Alta Press A Dv Sx - 890655 | $174.80 | Special order, ships in 7-14 days |
| 2 | 315352 | Ferrari Clip - 315352 | $2.59 | Special order, ships in 7-14 days |
| 3 | 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead |
| 4 | 982210 | Ferrari Dump Valve Base - 982210 | $96.01 | Available, ships in 3-6 days |
| 5 | 315495 | Ferrari Dump-Valve - 315495 | $295.03 | Available, ships in 3-6 days |
| 6 | 965883 | Ferrari LH Dump Valve Bracket - 965883 | $34.44 | Special order, ships in 7-14 days |
| 6 | 878496 | Ferrari RH Dump Valve Bracket - 878496 | $18.94 | Special order, ships in 7-14 days |
| 7 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 8 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 9 | 331701 | Ferrari Cylindrical Bushing With Scr - 331701 | $31.99 | Special order, ships in 7-14 days |
| 11 | 820020 | Ferrari Tubo Da Dv A Bassa Press Dx - 820020 | $128.01 | Special order, ships in 7-14 days |
| 11 | 881480 | Ferrari Tubo Da Dv A Bassa Press Sx - 881480 | $147.72 | Special order, ships in 7-14 days |
| 12 | 278577 | Ferrari Tube Clamp D.30-40mm - 278577 | $3.68 | Special order, ships in 7-14 days |
| 13 | 14499324 | Ferrari Washer - 14499324 | Superseded | Order 12643724 instead |
| 13 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
