Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

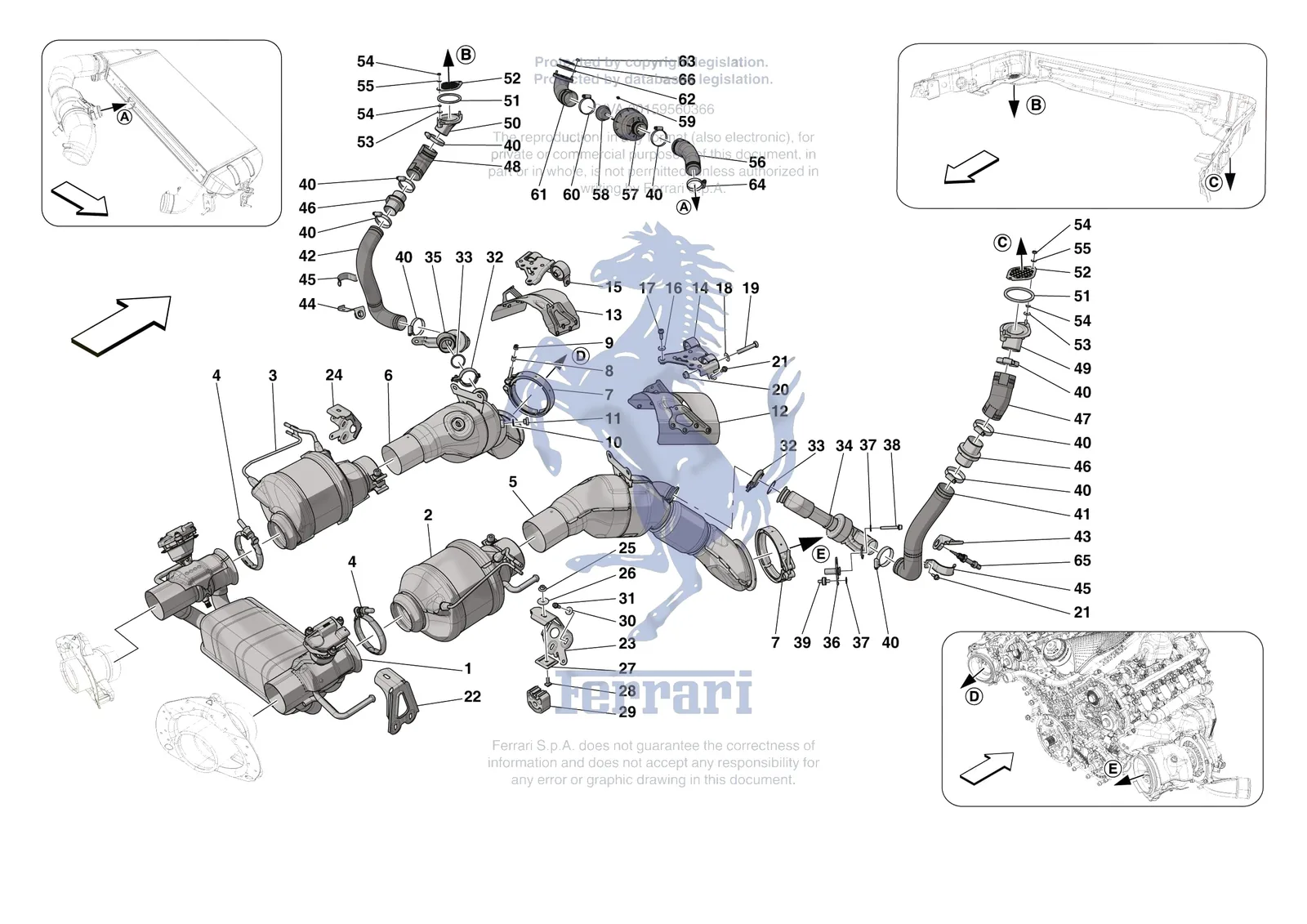

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari SF90 Spider, with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
938141Ferrari Muffler F173 Assy - 938141SupersededOrder 958639 instead
938340Ferrari Muffler Light Titanium F173 - 938340SupersededOrder 958641 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
12605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
12601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead
1958639Ferrari Muffler F173 Assy - 958639$6,726.51Special order, ships in 7-14 days
1958641Ferrari Muffler Light Titanium F173 - 958641$18,562.56Contact us to order
2832344Ferrari Compl. RH Gpf - 832344$37,433.65Contact us to order
2867548Ferrari RH Complete GPF - 867548$16,039.87Contact us to order
3832347Ferrari Compl. LH Gpf - 832347$37,433.65Contact us to order
3867549Ferrari Gpf Cpl Sx - 867549$16,039.87Contact us to order
4806375Ferrari V-Clamp - 806375$94.09Special order, ships in 7-14 days
5939966Ferrari Precat F173 RH - 939966$18,213.70Contact us to order
5939970Ferrari Precat Light Inconel F173 RH - 939970$22,849.06Contact us to order
6939968Ferrari Precat F173 LH - 939968$16,928.78Contact us to order
6939972Ferrari Precat Light Inconel F173 LH - 939972$22,827.35Contact us to order
7290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
8292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
9292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
1010298460Ferrari Washer - 10298460$1.10In stock
11110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
12826110Ferrari Riparo Cat Dx - 826110$177.25Special order, ships in 7-14 days
13826111Ferrari Riparo Cat Sx - 826111$177.25Special order, ships in 7-14 days
14981836Ferrari Complete RH Catalytic Converter Bracket - 981836$443.17Special order, ships in 7-14 days
15981838Ferrari Complete LH Catalytic Converter Bracket - 981838$443.17Special order, ships in 7-14 days
1614498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
17216565Ferrari Screw 6X20 - 216565$0.92Special order, ships in 7-14 days
1812625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
1916044224Ferrari Screw M8 x 50mm TE - 16044224$0.79Available, ships in 3-6 days
2014059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
21256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
22917049Ferrari Exhaust Bracket - Front Section - 917049$78.76Special order, ships in 7-14 days
23827919Ferrari Bracket for RH Gas Particulate Filter - 827919$68.92Special order, ships in 7-14 days
24919089Ferrari Bracket for LH Gas Particulate Filter - 919089$91.08Special order, ships in 7-14 days
2514039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
2612648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
27240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
27799014Ferrari Bush Fastener Plate - 799014SupersededOrder 240598 instead
28250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
29239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
3012643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
31231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
32855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
33898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
34968310Ferrari Tubaz Rig Sg Dx - 968310$1,822.04Special order, ships in 7-14 days
35968311Ferrari Tubaz Rig Sg Sx - 968311$1,822.04Special order, ships in 7-14 days
36842654Ferrari Bracket for Rigid Pipe - 842654$44.29Special order, ships in 7-14 days
3712644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
3712644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
38231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
39225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
40296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
41965165Ferrari Spiralato Sg Spider Dx - 965165$246.20Special order, ships in 7-14 days
42965166Ferrari Spiralato Sg Spider Sx - 965166$270.83Special order, ships in 7-14 days
43895925Ferrari Supporto Sens Temp Sg Dx - 895925$91.08Special order, ships in 7-14 days
44895926Ferrari Supporto Sens Temp Sg Sx - 895926$86.15Special order, ships in 7-14 days
45880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
46786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
47961969Ferrari Manicotto Sg Spider Dx - 961969$91.08Special order, ships in 7-14 days
48830179Ferrari Manicotto Sg Spider Sx - 830179$91.08Special order, ships in 7-14 days
49961967Ferrari Trombetta Sg Spider Dx - 961967$31.99Special order, ships in 7-14 days
50961968Ferrari Trombetta Sg Spider Sx - 961968$31.99Special order, ships in 7-14 days
51901095Ferrari Gasket - 901095$8.72Special order, ships in 7-14 days
52980026Ferrari Retina Trombette Sg Spider - 980026$78.76Special order, ships in 7-14 days
5312638170Ferrari WASHER - 12638170Price on requestContact us for price and availability
5410725017Ferrari Nut - 10725017$0.79Special order, ships in 7-14 days
5512601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
56962005Ferrari Manicotto Sg Alta Press - 962005$100.93Special order, ships in 7-14 days
57826617Ferrari Riduttore Per Risuonatore Sp - 826617$16.46Special order, ships in 7-14 days
58310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
59314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
60296783Ferrari Screw Collar 40-60mm - 296783$20.09Available, ships in 3-6 days
61964683Ferrari Manicotto Sg Bassa Pressione - 964683$243.74Special order, ships in 7-14 days
62967492Ferrari Guarnizione - 967492$9.39Special order, ships in 7-14 days
6314040511Ferrari Nut - Self Locking - 14040511$1.11Special order, ships in 7-14 days
64296781Ferrari Hose Clamp - 296781$5.59In stock
65890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days
66969054Ferrari Lateral Mesh - 969054$51.67Special order, ships in 7-14 days
